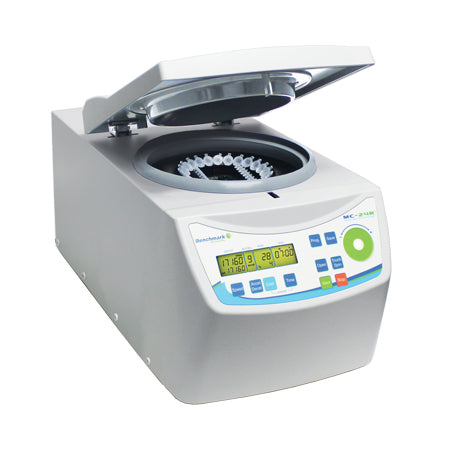

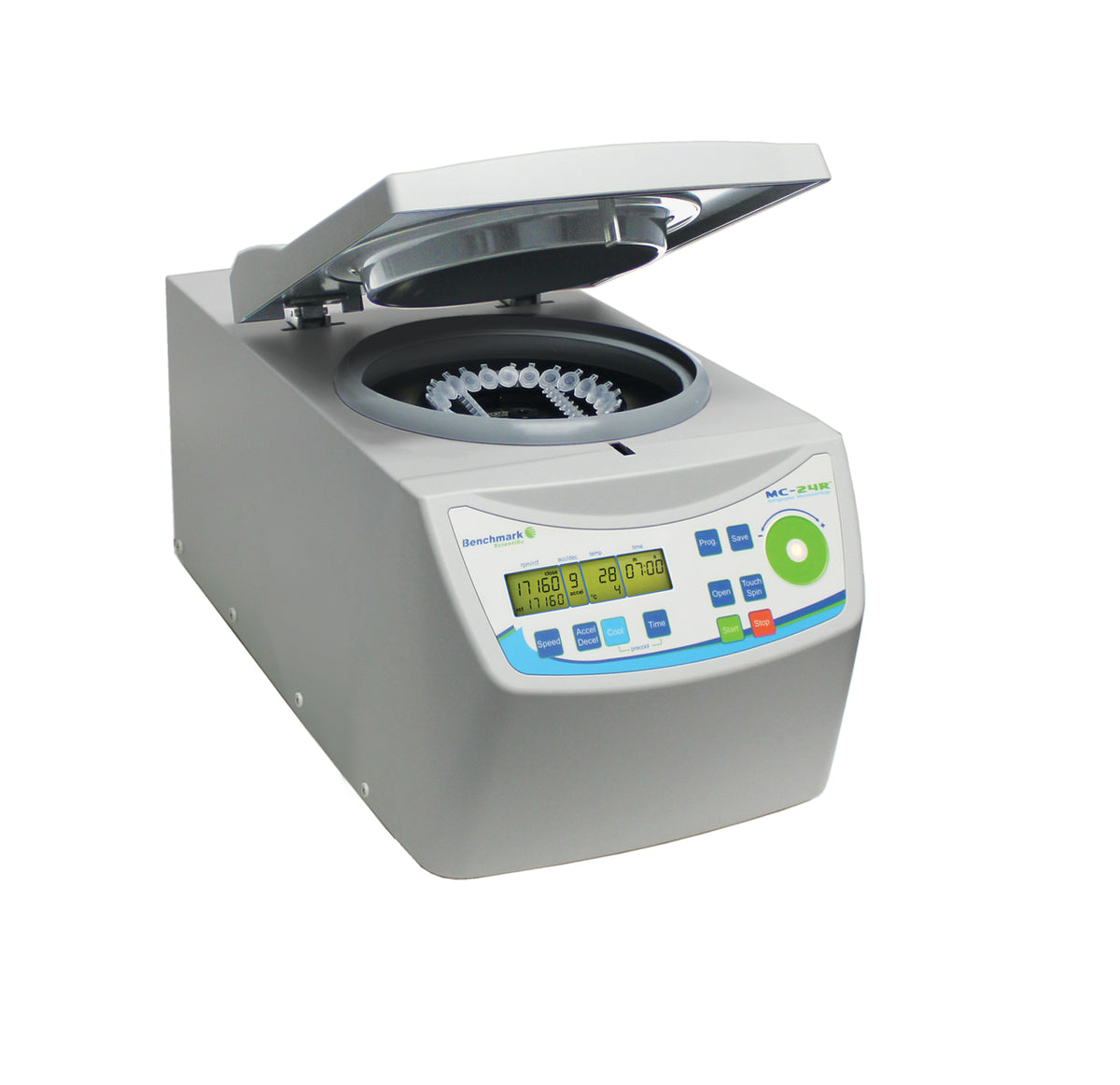

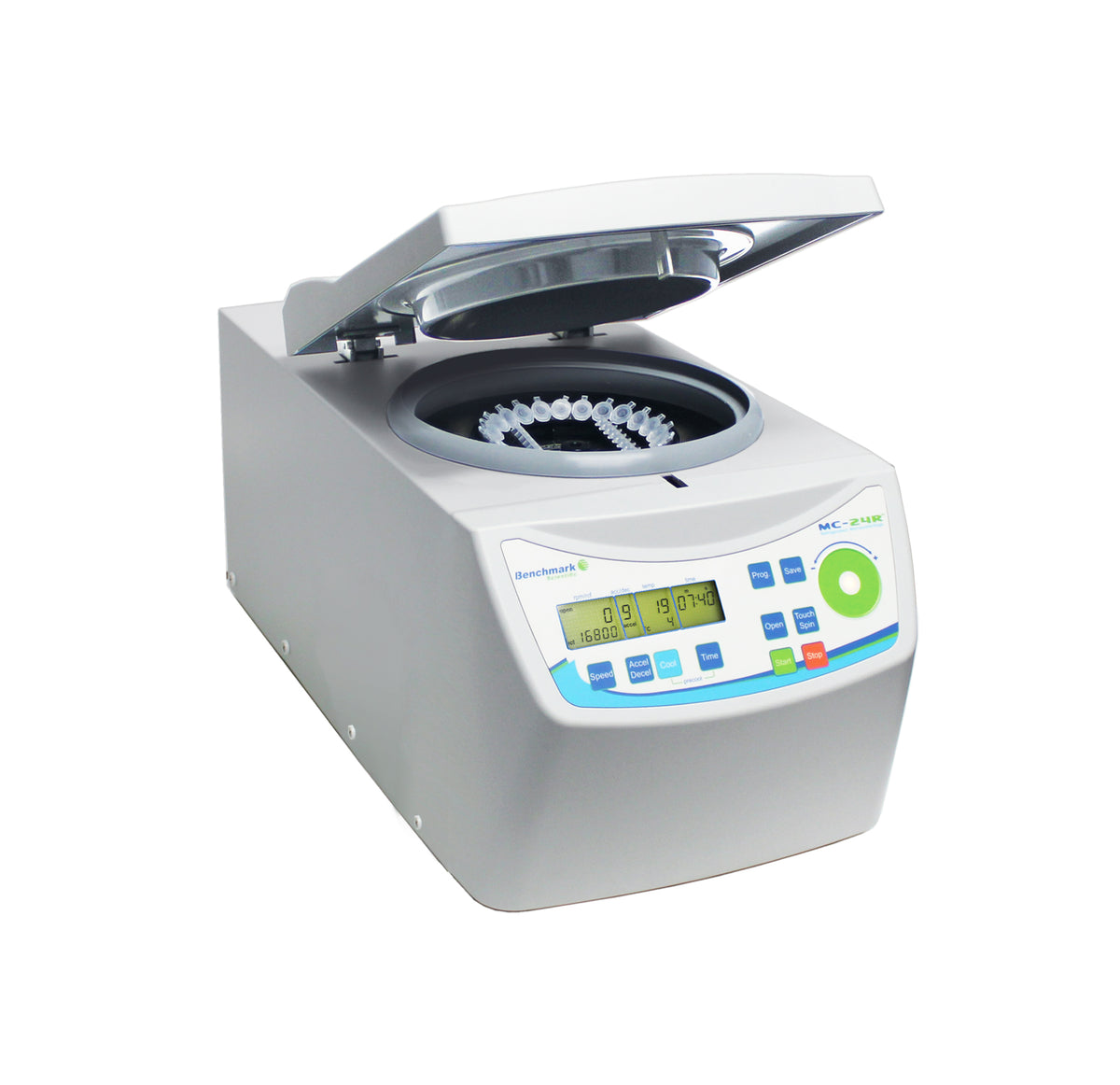

The MC-24R is Benchmark's refrigerated high-speed microcentrifuge, holding samples anywhere from −20°C to +40°C while spinning at 200–13,500 rpm (up to 16,800 × g). It comes with the COMBI-Rotor and lid, which runs 24 × 1.5/2.0 mL microtubes and two 0.2 mL PCR strips at once, so no separate strip rotor is needed. The touch panel sets speed in 10 rpm or 10 rcf steps, converts rpm and rcf in real time, stores up to 99 programs and adjusts acceleration and deceleration. A status light shows whether the unit is running, in standby or finished, and the timer runs from 20 seconds to 99 hours.
Key features
- Temperature control from −20°C to +40°C
- 200–13,500 rpm, up to 16,800 × g, in 10 rpm or 10 rcf steps
- COMBI-Rotor included: 24 × 1.5/2.0 mL plus 2 PCR strips
- Up to 99 stored programs; adjustable acceleration and braking
- Optional spin column rotor reaches 17,157 × g
- Timer 20 s to 99 h or continuous; status indicator light
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C2417-R / C2417-R-E |
| Speed Range | 200–13,500 rpm |
| Max RCF | 16,800 × g |
| Capacity (COMBI-Rotor, included) | 24 × 1.5/2.0 mL + 2 PCR strips |
| Temperature Range | −20 °C to +40 °C |
| Speed Increment | 10 rpm or 10 × g |
| Timer | 20 sec–99 hr, or continuous |
| Program Storage | Up to 99 |
| Momentary Spin | Yes |
| Dimensions | 11 × 21.6 × 11.6 in |
| Weight | 73 lb (33 kg) |
| Electrical | 120 V, US plug (C2417-R); 230 V, European plug (C2417-R-E); 50–60 Hz; 350 W |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C2417-R | 120V, US plug |
| C2417-R-E | 230V, European plug |
Questions about the MC-24R Refrigerated Microcentrifuge C2417-R
How fast does the MC-24R Refrigerated Microcentrifuge C2417-R spin, and what does it hold?
The MC-24R Refrigerated Microcentrifuge C2417-R runs at 200–13,500 rpm with a maximum RCF of 16,800 × g.
Is the MC-24R Refrigerated Microcentrifuge C2417-R available with a European plug?
Yes. C2417-R-E is the European-plug version of C2417-R: C2417-R is 120V with a US plug and C2417-R-E is 230V with a European plug.
