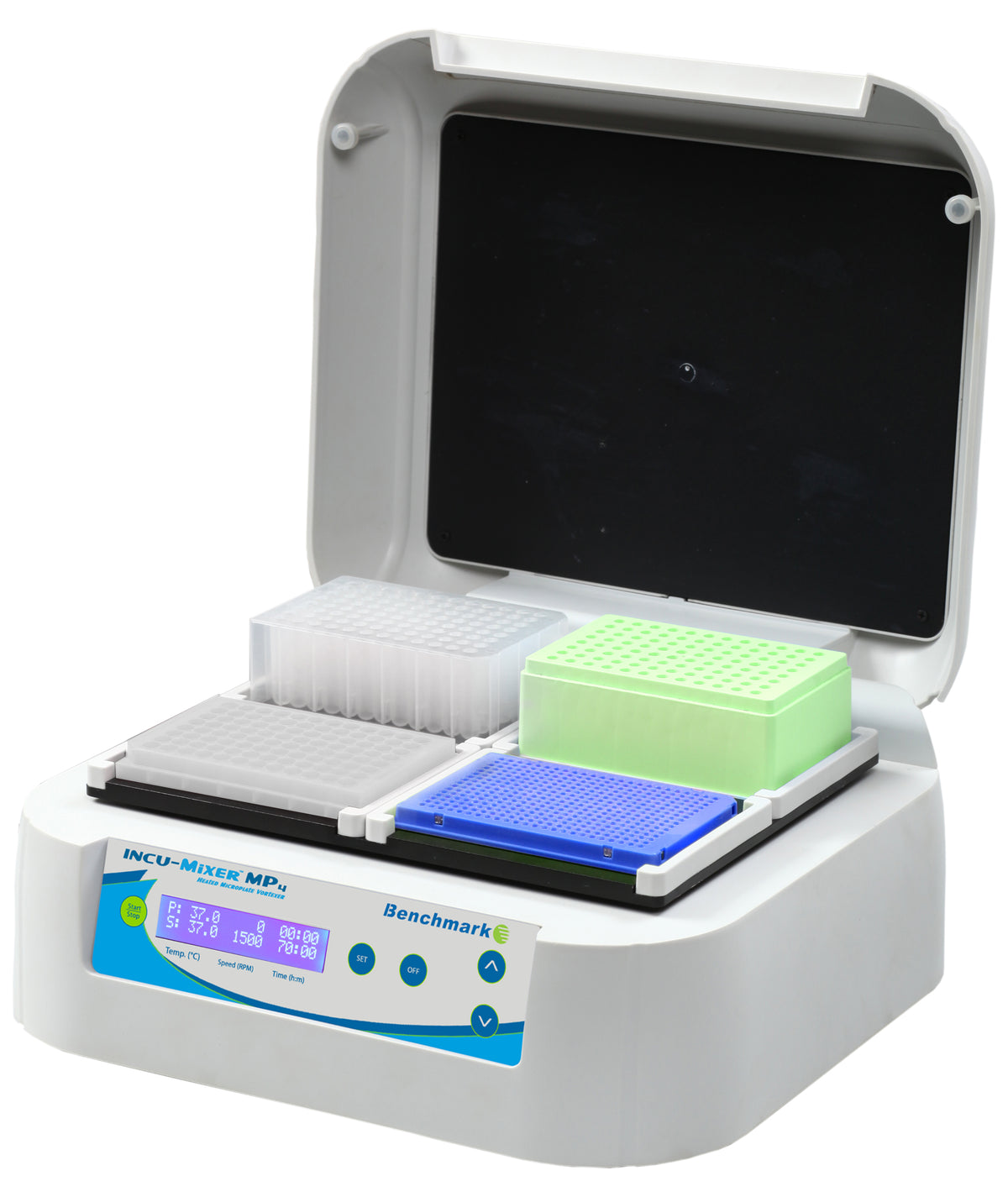

The Incu-Mixer MP4 is the four-plate model of Benchmark's heated microplate vortexer. It mixes at 100–1,500 rpm on a 2 mm orbit while heating from the base and lid together, reaching 70°C with ±0.5°C uniformity. The heated lid reduces evaporation. An LCD shows speed, time and temperature in real time, and an internal validation system monitors each parameter. It can run as an incubator, a vortexer, or both.
Key features
- Holds four microplates
- 100–1,500 rpm on a 2 mm orbit, 10 rpm increments
- Ambient +5°C to 70°C in 0.1°C steps, ±0.5°C uniformity
- Base and lid heating to prevent condensation
- Independent time, temperature and speed; 600W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | H6004 / H6004-E |
| Temperature Range | Ambient +5 °C to 70 °C |
| Temperature Increment | 0.1 °C |
| Temperature Accuracy | ±0.2 °C |
| Temperature Uniformity | ±0.5 °C |
| Orbit | 2 mm |
| Speed Range | 100–1,500 rpm |
| Speed Increment | 10 rpm |
| Capacity | 4 microplates |
| Timer | 1 min–99 hr 99 min or continuous |
| Dimensions | 12.6 × 13.8 × 7.3 in (32 × 35 × 18.5 cm) |
| Electrical | 115 V (H6004); 230 V (H6004-E); 50–60 Hz; 600 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| H6004 | 115V, US plug |
| H6004-E | 230V, European plug |
