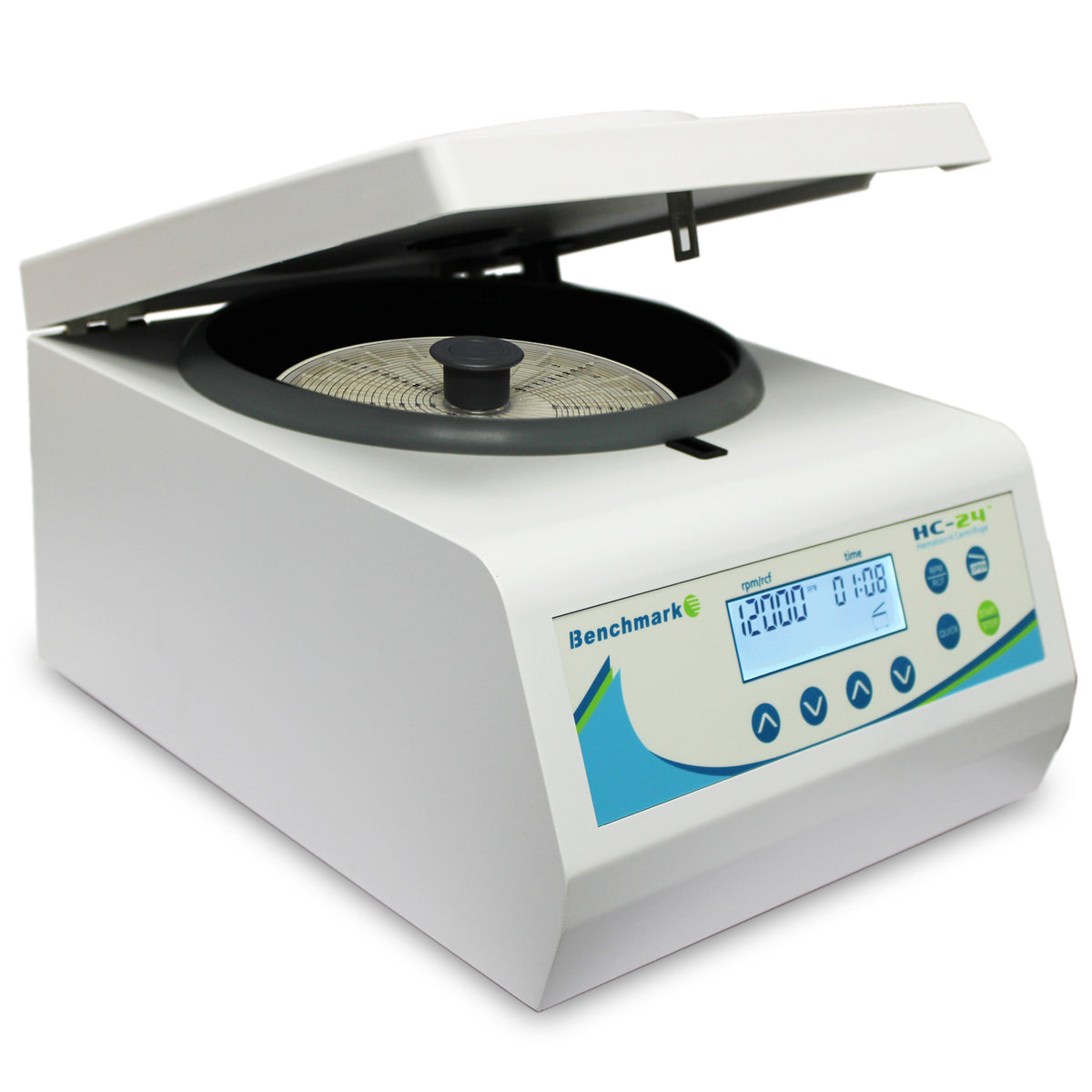

The HC-24 is a compact centrifuge built for hematocrit determination. Its included 24-place rotor holds 75 mm capillary tubes, and speed is programmable from 1,000 to 12,000 rpm for a maximum of 14,328 × g. The timer runs from 20 seconds to 99 minutes or continuously, acceleration takes 20 s and deceleration 30 s, and a quick-spin function handles short runs. A reading disc lid is supplied for reading results directly at the instrument. The footprint is 14 × 11 × 9.8 in and the unit weighs 35 lb.
Key features
- 24-place rotor accepts 75 mm hematocrit capillary tubes
- Programmable speed 1,000–12,000 rpm; maximum 14,328 × g
- Timer from 20 seconds to 99 minutes, plus continuous mode
- Reading disc lid included for on-instrument results
- Quick-spin function; 20 s acceleration, 30 s deceleration
- 115V or 230V versions, 50–60 Hz
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C3450-H / C3450-H-E |
| Speed Range | 1,000–12,000 rpm |
| Max RCF | 14,328 × g |
| Capacity | 24 × 75 mm capillary tubes |
| Timer | 20 sec–99 min, or continuous |
| Acceleration / Deceleration | 20 sec / 30 sec |
| Included | Reading disc lid |
| Dimensions | 14 × 11 × 9.8 in (36 × 28 × 25 cm) |
| Weight | 35 lb (16 kg) |
| Electrical | 115 V, US plug (C3450-H); 230 V, European plug (C3450-H-E); 50–60 Hz |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C3450-H | 115V, US plug |
| C3450-H-E | 230V, European plug |
