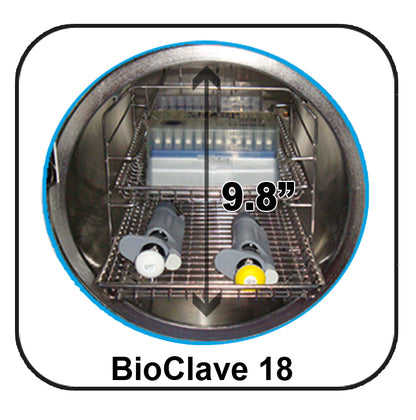

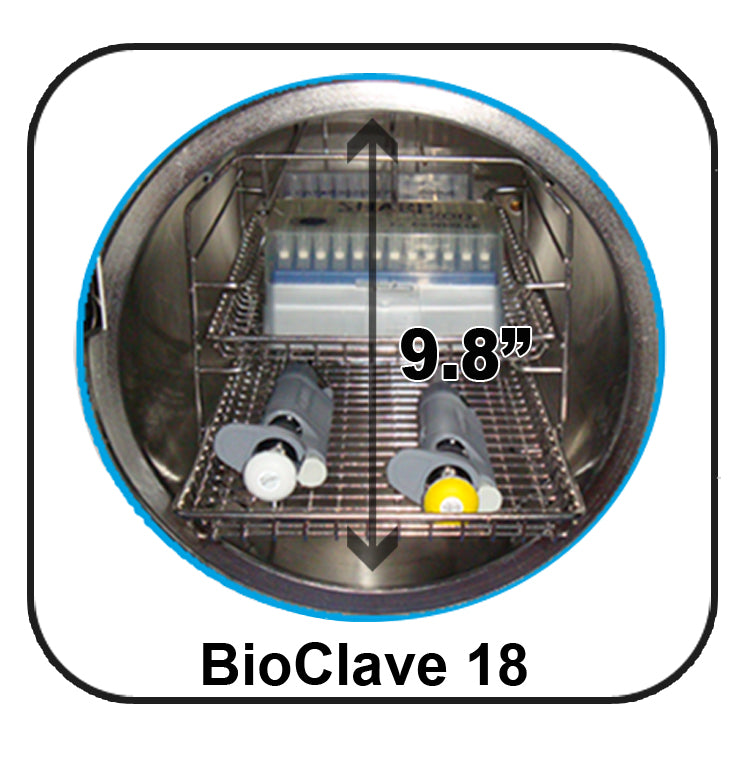

The BioClave 18 is a benchtop autoclave for sterilizing research tools, media, glassware and plasticware in an 18 L stainless steel chamber (9.8 × 13.77 in). It reaches 29 PSI (2 bar), draws water from a built-in tank so no plumbing connection is needed, and runs fill, sterilize, exhaust and dry automatically from a single start button. Preset programs cover liquids, wrapped instruments and unwrapped instruments or plasticware, with a Dry Only option and fully adjustable parameters. A mechanical and electrical interlock keeps the door shut until chamber pressure returns to zero.
Key features
- 18 L stainless steel chamber, 9.8 × 13.77 in
- Maximum pressure 29 PSI (2 bar); 1,600 W heater draw
- Preset liquid, wrapped and unwrapped cycles plus a Dry Only add-on
- Built-in water reservoir; no external water line
- Door interlock holds until chamber pressure reads zero
- USB drive records settings for transfer to a PC; optional printer
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | B4000-18 / B4000-18-E |
| Chamber Volume | 18 L |
| Max Pressure | 29 PSI (2 bar) |
| Chamber Dimensions | 9.8 × 13.77 in (24.8 × 35 cm) |
| Exterior Dimensions | 22 × 17.5 × 15.7 in (56 × 44.5 × 40 cm) |
| Weight | 89 lb (40 kg) |
| Electrical | 115 V, US plug (B4000-18); 230 V, European plug (B4000-18-E); 50–60 Hz |
| Power | 1,600 W |
| Operation | Fully automatic cycle (fill, sterilize, exhaust, dry) |
| Water Supply | Built-in water tank |
| Warranty | 1 Year |
Ordering information
| Catalog number | Power |
|---|---|
| B4000-18 | 115V, US plug |
| B4000-18-E | 230V, European plug |
