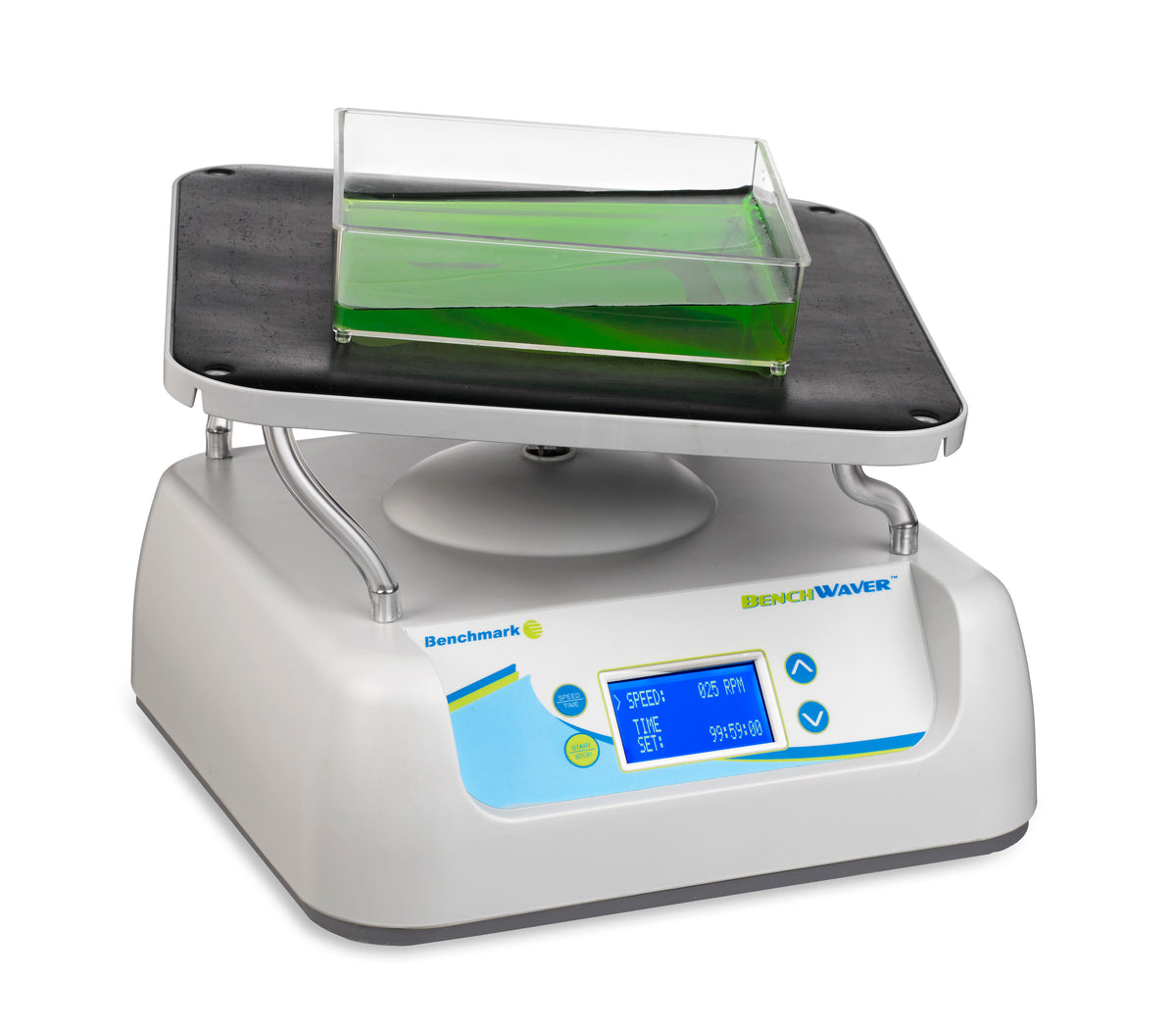

BenchWaver combines the rocking action of a platform rocker with the circular path of an orbital shaker, producing the undulating 3D motion often used in molecular biology. Speed varies from 5 to 105 rpm, and Insta-TILT adjusts the angle from 0 to ±10° without tools. The 13.5 × 13 in platform comes with a flat mat and carries up to 20 lb (9 kg). It is rated for 4°C to 60°C ambient.
Key features
- Rocking plus orbital motion for undulating 3D mixing
- Variable speed from 5 to 105 rpm
- Insta-TILT angle adjustment from 0 to ±10°
- 13.5 × 13 in platform with flat mat; 20 lb (9 kg) load
- Operates from 4°C to 60°C; dual platform accessory optional
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | B3D5000 / B3D5000-E |
| Motion | 3D (rocking plus orbital) |
| Speed Range | 5–105 rpm (variable) |
| Tilt Angle | 0° to ±10° (variable) |
| Platform Size | 13.5 × 13 in (34 × 33 cm) |
| Load Capacity | 20 lb (9 kg) |
| Operating Temperature | 4–60°C |
| Dimensions (W × D × H) | 13 × 13.5 × 9.75 in (33 × 34 × 24.75 cm) |
| Weight | 12 lb (5.5 kg) |
| Power | 50 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| B3D5000 | 100–240V, US plug |
| B3D5000-E | 100–240V, European plug |

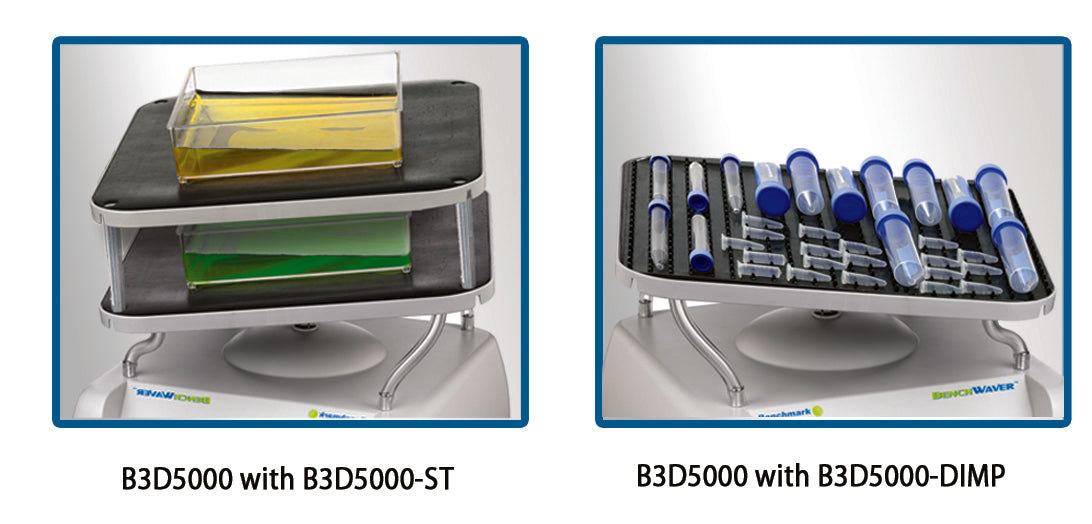

Accessories listed for this model
| Catalog number | Part |
|---|---|
| B3D5000-DIMP | Benchmark Scientific Dimpled Mat for Tubes B3D5000-DIMP |
| B3D5000-STK | Benchmark Scientific Stacking Platform with Flat Mat B3D5000-STK |
Questions about the BenchWaver 3D Rocker B3D5000
What speed range and motion does the BenchWaver 3D Rocker B3D5000 have?
The BenchWaver 3D Rocker B3D5000 runs at 5–105 rpm (variable) with a 0° to ±10° (variable) tilt, on a 13.5 × 13 in (34 × 33 cm) platform.
What accessories are available for the BenchWaver 3D Rocker B3D5000?
Benchmark Scientific lists B3D5000-DIMP (Dimpled Mat for Tubes) and B3D5000-STK (Stacking Platform with Flat Mat) for the BenchWaver 3D Rocker B3D5000.
Is the BenchWaver 3D Rocker B3D5000 available with a European plug?
Yes. B3D5000-E is the European-plug version of B3D5000; both run on 100–240V, so only the plug differs.
