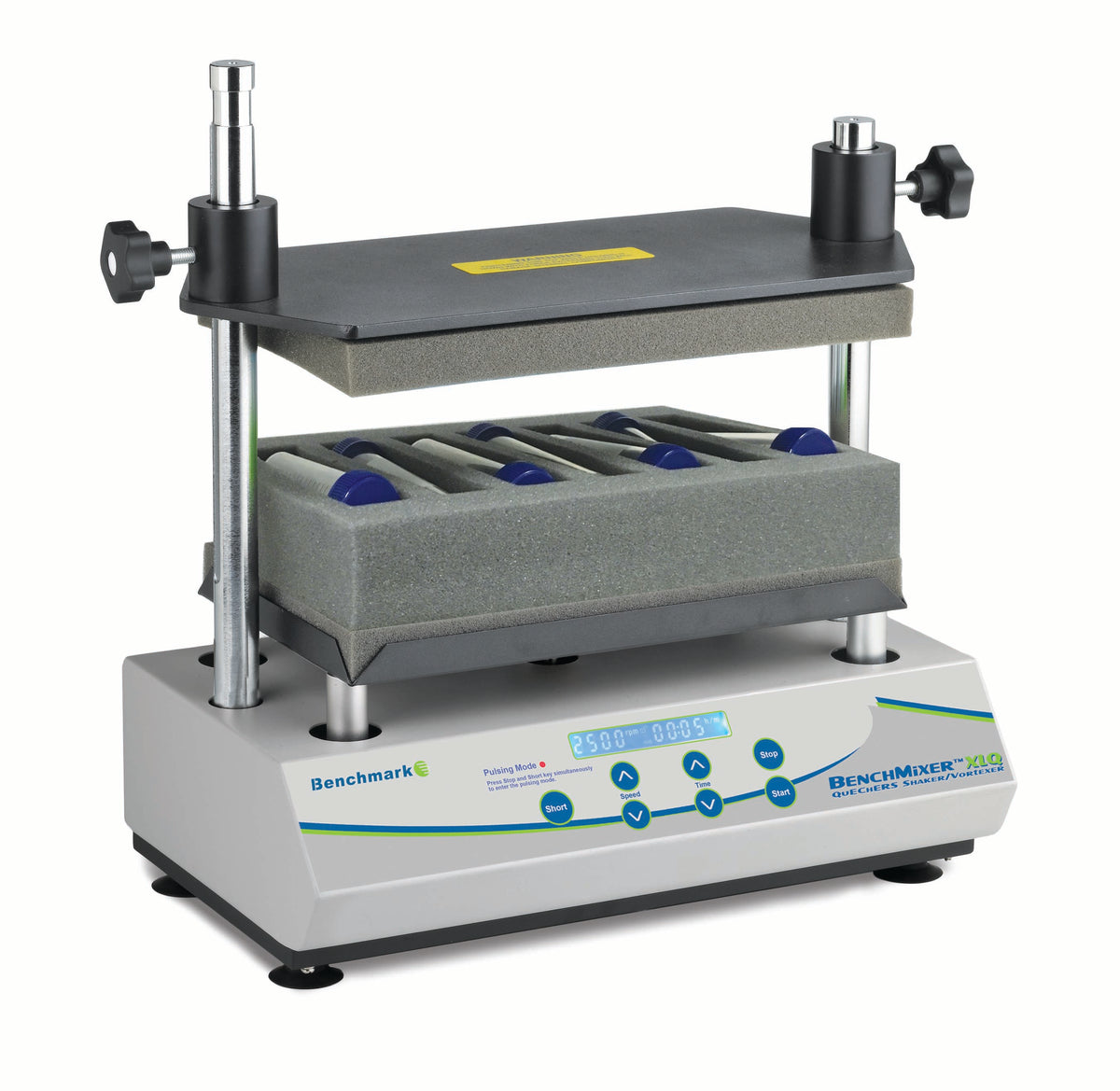

BenchMixer XLQ is a multi-tube shaker/vortexer configured for QuEChERS and similar sample prep, replacing manual shaking with consistent agitation within and between batches. The starter rack kit holds 7 × 50 mL tubes horizontally, 50 × 15 mL tubes vertically and 50 × 1.5/2.0 mL tubes vertically. In vertical racks the tube tops stay fixed while the bottoms move in a 3.6 mm orbit, producing a vortex at 500 to 2,500 rpm. Run time is set from 1 min to 99 hr 59 min, with a pulse mode for harder mixing.
Key features

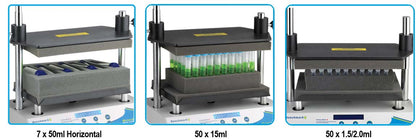

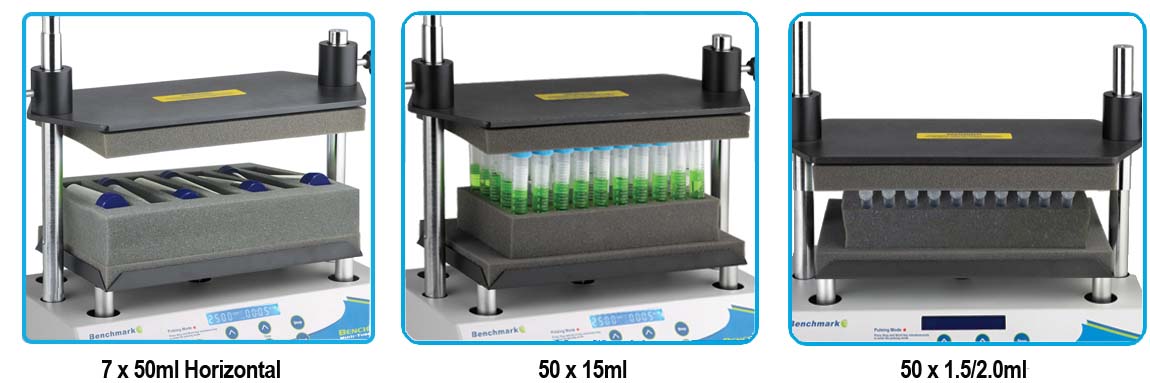

- QuEChERS racks: 7 × 50 mL horizontal; 50 × 15 mL, 50 × 1.5/2.0 mL vertical
- 500–2,500 rpm with a 3.6 mm orbit
- Pulse mode for more vigorous mixing
- Top plate lifts and swivels on two steel rods for loading
- 12 × 7 in. platform; 100–240V, 60W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BV1010-TST / BV1010-TST-E |
| Speed Range | 500–2,500 rpm |
| Timer | 1 min–99 h 59 min |
| Orbit | 3.6 mm |
| Platform Size | 12 × 7 in (30 × 17.8 cm) |
| Dimensions | 15 × 9.2 × 16.5 in (38.5 × 23.5 × 42 cm) |
| Weight | 29 lb (13 kg) |
| Electrical | 100–240 V, 50–60 Hz; 60 W |
| Mixing Modes | Continuous or pulse |
| Included Racks | 7 × 50 mL (horizontal); 50 × 15 mL (vertical); 50 × 1.5/2.0 mL (vertical) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BV1010-TST | 100–240V, US plug |
| BV1010-TST-E | 100–240V, European plug |
