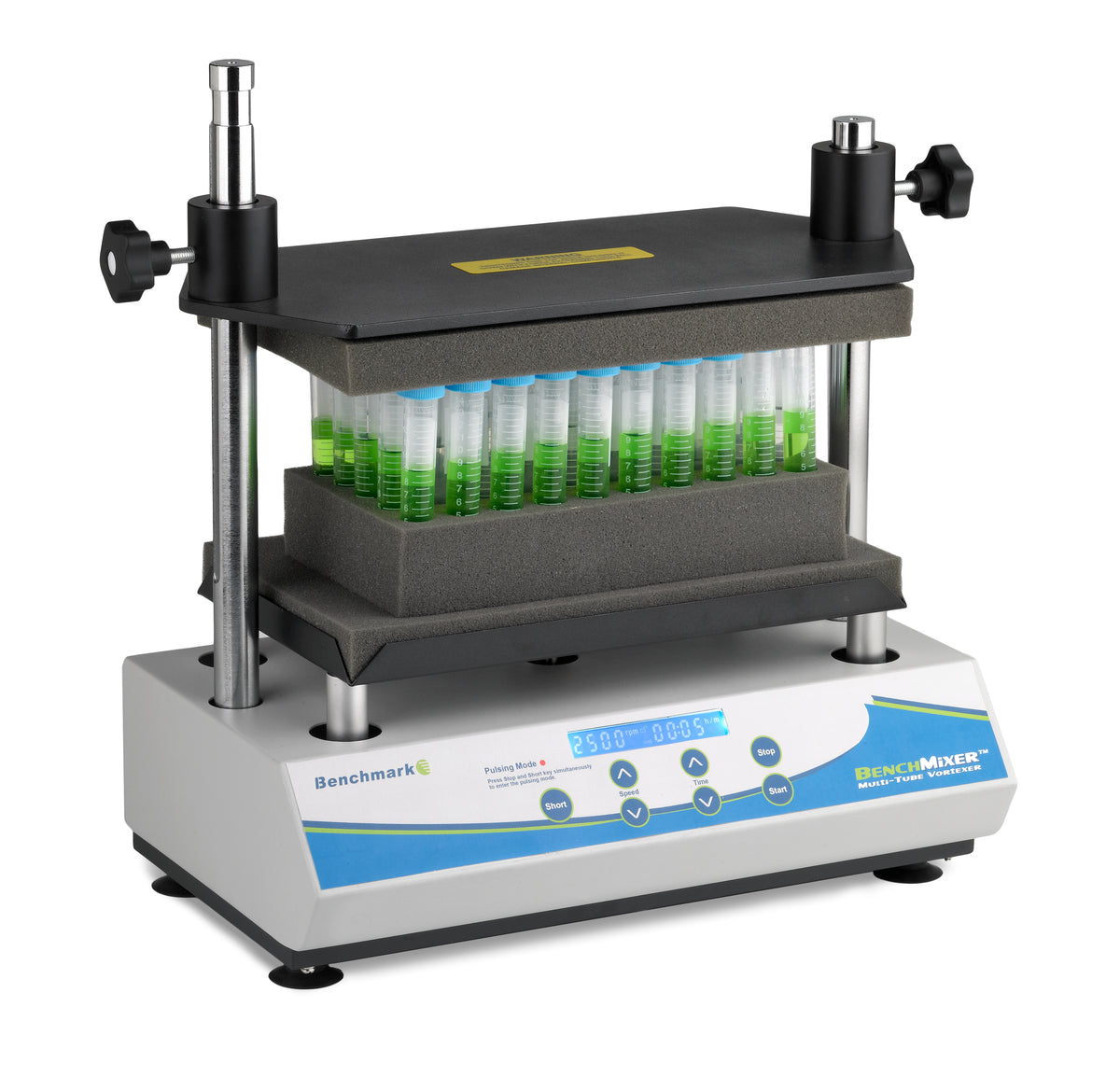

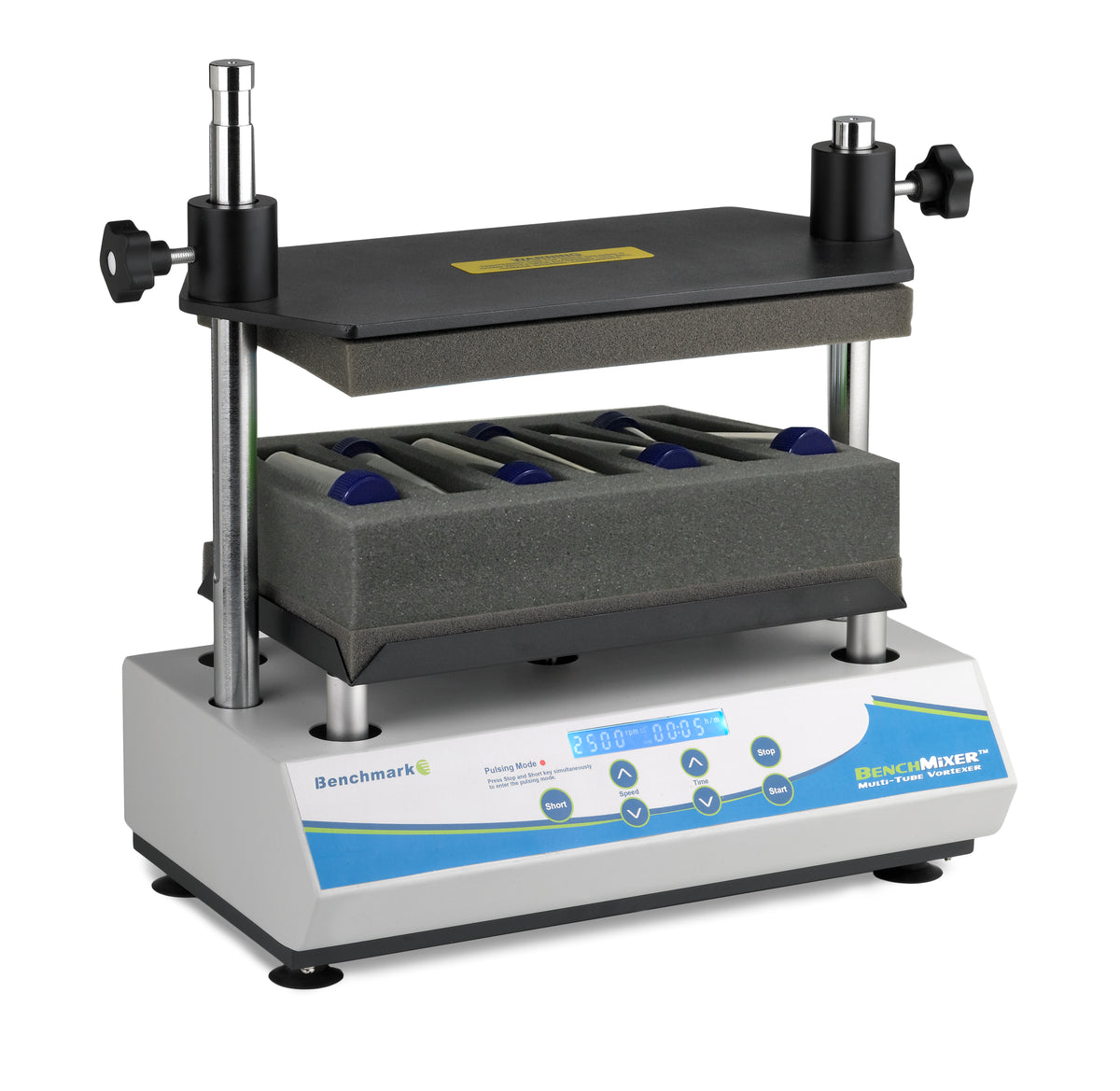

BenchMixer XL is a heavy-duty multi-tube vortexer for unattended mixing of tubes, flasks, vials or cylinders, including QuEChERS pesticide extractions. A 12 × 7 in. platform takes most standard pre-drilled tube racks, held by locking knobs, and a 50 × 12 mm tube rack is included. Speed runs from 500 to 2,500 rpm on a 3.6 mm orbit, with a timer from 1 min to 99 hr 59 min. A pulse program adds interval mixing for more vigorous agitation.
Key features
- 500–2,500 rpm, 3.6 mm orbit, vortex in every tube

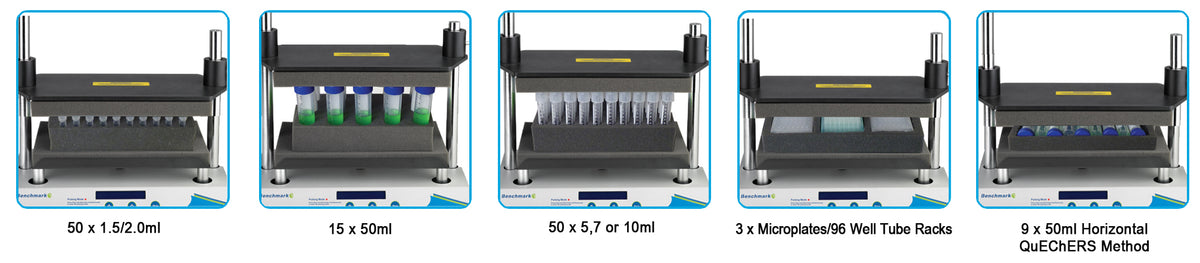

- 12 × 7 in. platform fits most pre-drilled tube racks
- Includes 50 × 12 mm tube rack
- Programmable pulse mode for interval mixing
- Timer 1 min to 99 hr 59 min
- 100–240V, 60W; 29 lb
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BV1010 / BV1010-E |
| Speed Range | 500–2,500 rpm |
| Timer | 1 min–99 h 59 min |
| Orbit | 3.6 mm |
| Platform Size | 12 × 7 in (30 × 17.8 cm) |
| Dimensions | 15 × 9.2 × 16.5 in (38.5 × 23.5 × 42 cm) |
| Weight | 29 lb (13 kg) |
| Electrical | 100–240 V, 50–60 Hz; 60 W |
| Mixing Modes | Continuous or pulse |
| Included Rack | 50 × 12 mm tube rack |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BV1010 | 100–240V, US plug |
| BV1010-E | 100–240V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| BV1010-00 … | Benchmark Scientific BenchMixer XL Tube Rack BV1010 Series |
Questions about the BenchMixer XL Multi-Tube Vortexer BV1010
What speed range and motion does the BenchMixer XL Multi-Tube Vortexer BV1010 have?
The BenchMixer XL Multi-Tube Vortexer BV1010 runs at 500–2,500 rpm on a 3.6 mm orbit, on a 12 × 7 in (30 × 17.8 cm) platform.
What accessories are available for the BenchMixer XL Multi-Tube Vortexer BV1010?
Benchmark Scientific lists BV1010-00 (BenchMixer XL Tube Rack) for the BenchMixer XL Multi-Tube Vortexer BV1010.
Is the BenchMixer XL Multi-Tube Vortexer BV1010 available with a European plug?
Yes. BV1010-E is the European-plug version of BV1010; both run on 100–240V, so only the plug differs.
