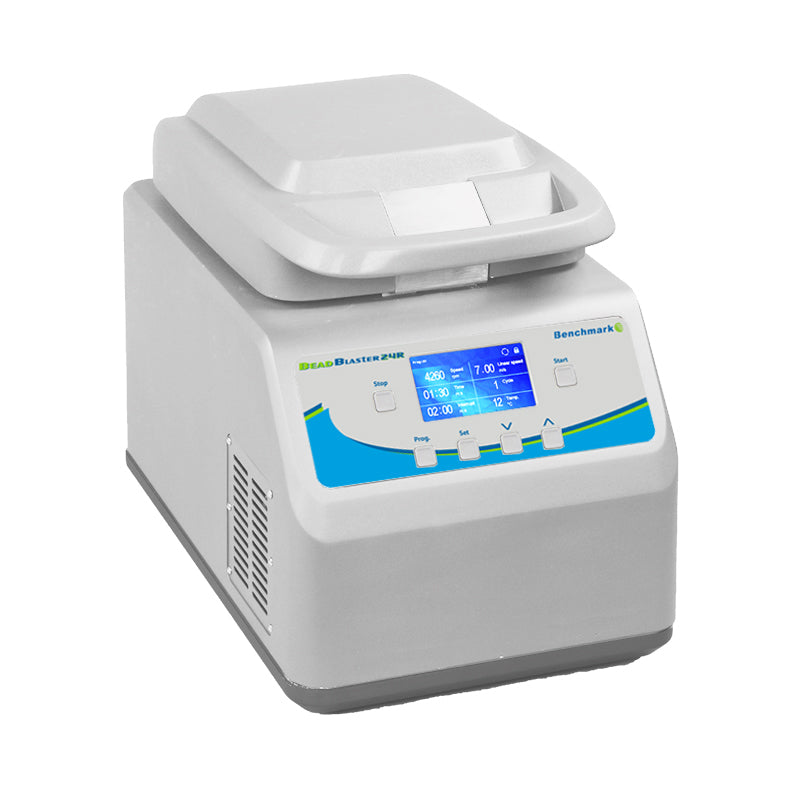

The BeadBlaster 24R D2400-R adds compressor-based refrigeration to the 24-tube bead mill format, holding the chamber from −10°C up to ambient while samples are processed. No dry ice, liquid nitrogen or air supply is needed, and the chamber pre-cools to 0°C in under 30 minutes. Tubes travel in a 3D motion at 4.0 to 7.0 m/s, with cycles of 1 to 90 seconds and up to 10 cycles per program. Fifty programs can be stored. The unit draws 1,000 W and weighs 88 lb.
Key features
- Compressor cooling from −10°C to ambient, no consumables
- Pre-cools the chamber to 0°C in under 30 minutes
- 24 × 2.0 mL capacity at 4.0–7.0 m/s
- Acceleration and deceleration each under 4 s
- 50 stored programs, up to 10 cycles each
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | D2400-R / D2400-R-E |
| Speed Range | 4.0–7.0 m/s (0.05 m/s increments) |
| Capacity | 24 × 2.0 mL tubes |
| Cycle Time | 1–90 s |
| Pause Between Cycles | 0–2 min (1 s increments) |
| Max Cycles per Program | 10 |
| Program Memory | Up to 50 programs |
| Acceleration / Deceleration | <4 s / <4 s |
| Cooling | Compressor |
| Temperature Range | −10 °C to ambient |
| Precool to 0 °C | <30 min |
| Noise Level | <68 dB |
| Weight | 88 lb (40 kg) |
| Electrical | 115 V (D2400-R); 230 V (D2400-R-E); 1,000 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| D2400-R | 115V, US plug |
| D2400-R-E | 230V, European plug |
