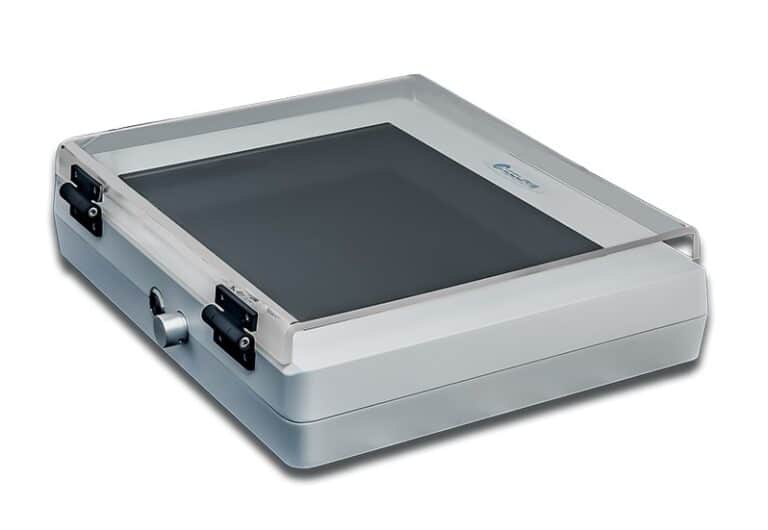

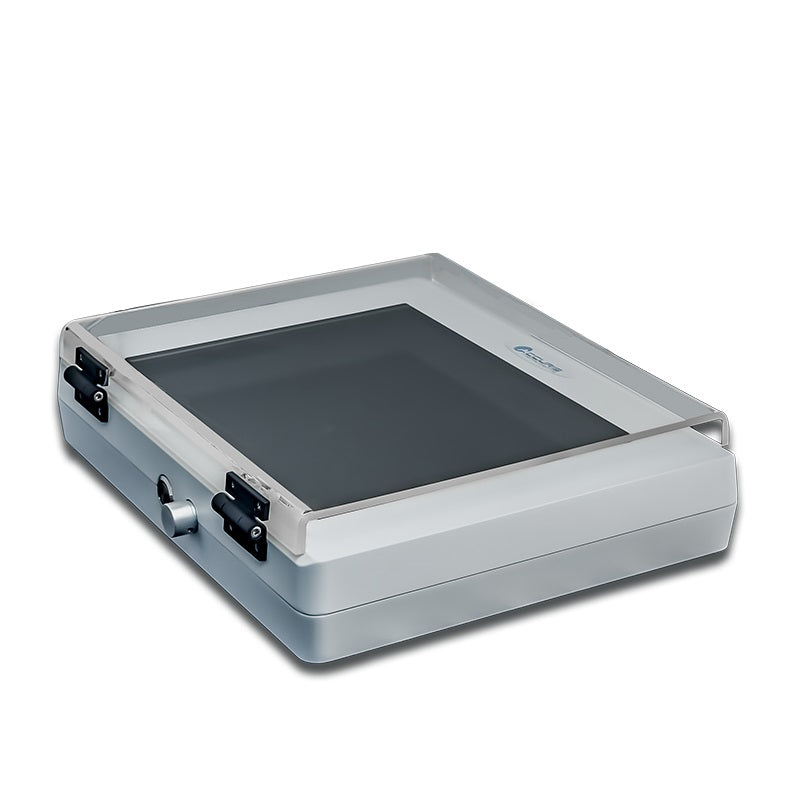

The Accuris E3200 is a large-format 302 nm transilluminator with a 210 × 260 mm viewing surface for big gels or several small gels at once. Four 14W UV bulbs give higher sensitivity for picking out faint bands of stained nucleic acids, and intensity is variable. The surface is scratch-resistant UV filter glass under a hinged UV-blocking cover. The unit measures 350 × 300 × 85 mm and runs from a 24 VDC adapter that accepts 100–240V AC.
Key features
- 302 nm midrange UV wavelength
- 21 × 26 cm gel viewing surface
- Four 14W UV bulbs; variable intensity

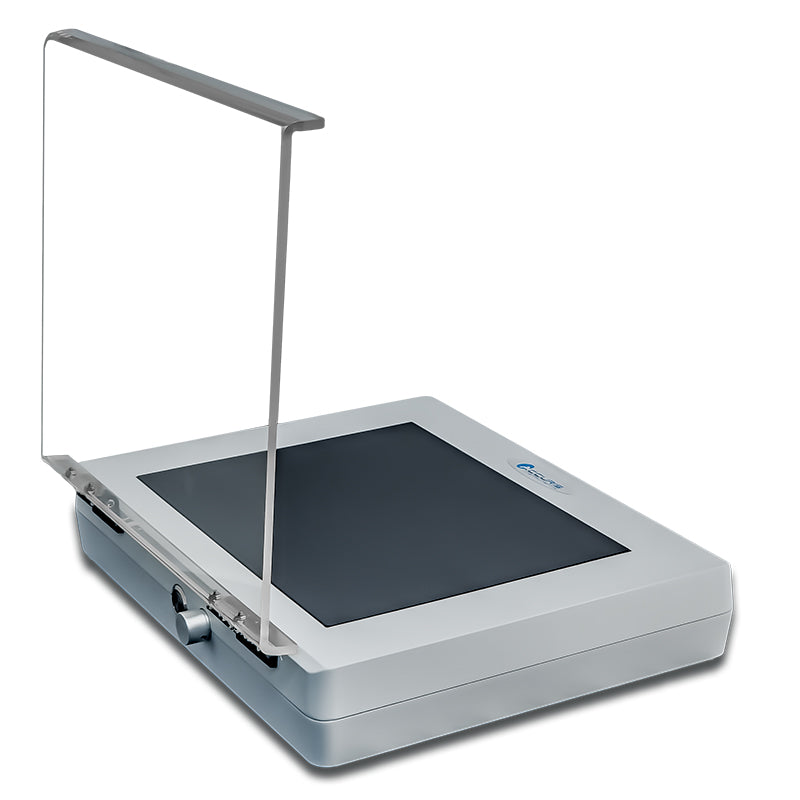

- Scratch-resistant UV filter glass with hinged UV-blocking cover
- Suited to EtBr, SmartGlow and SYBR stains
- 350 × 300 × 85 mm; 24 VDC adapter, 100–240V, 50/60 Hz
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E3200 / E3200-E |
| Viewing Surface | 21 × 26 cm |
| Light Source | 4 × 14 W UV bulbs |
| Intensity | Variable |
| Wavelength | 302 nm |
| Filter Glass | Scratch-resistant UV filter glass |
| Cover | Hinged, UV-blocking |
| Dimensions | 350 × 300 × 85 mm |
| Electrical | 100–240 V AC, 50–60 Hz, via 24 V DC power adapter |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E3200 | 100–240V, US plug |
| E3200-E | 100–240V, European plug |
Questions about the UV Transilluminator E3200
What are the key specifications of the UV Transilluminator E3200?
The UV Transilluminator E3200 uses 302 nm light and has a 21 × 26 cm viewing surface.
Is the UV Transilluminator E3200 available with a European plug?
Yes. E3200-E is the European-plug version of E3200; both run on 100–240V, so only the plug differs.
