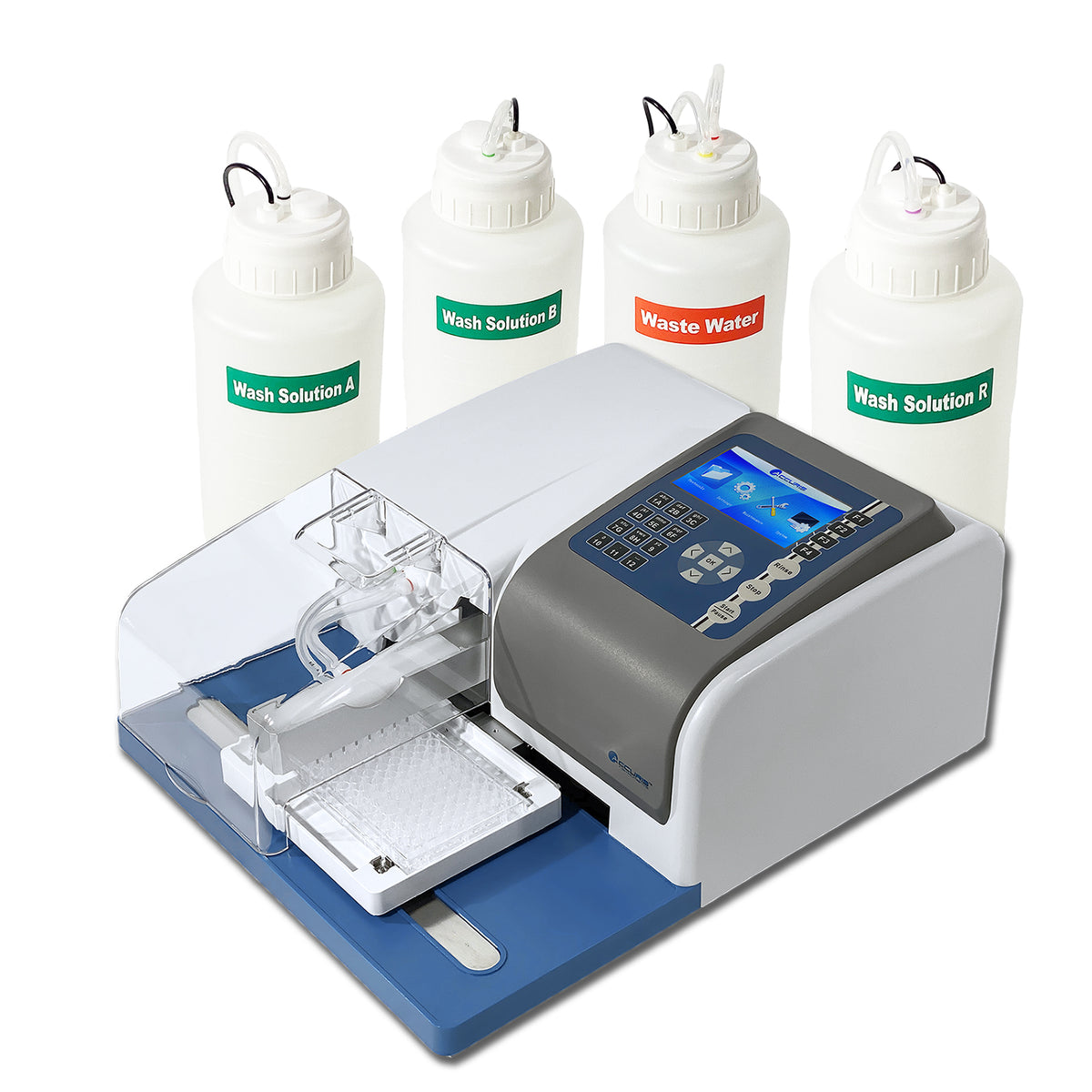

The SmartWasher 96 MW9600 is an automated washer for full 96-well plates, partial plates and strips with U, V, C or flat bottoms. Aspiration needle position is controlled to 0.1 mm to minimize residual liquid, and dispense volume, suction time, soak, shake and shaking speed are programmed on a 4.3 in LCD and keypad. Up to 100 wash protocols are stored on board or moved between units by flash drive. It comes with two wash bottles, one rinse bottle and a waste bottle; 8- and 12-channel manifolds are purchased separately.
Key features

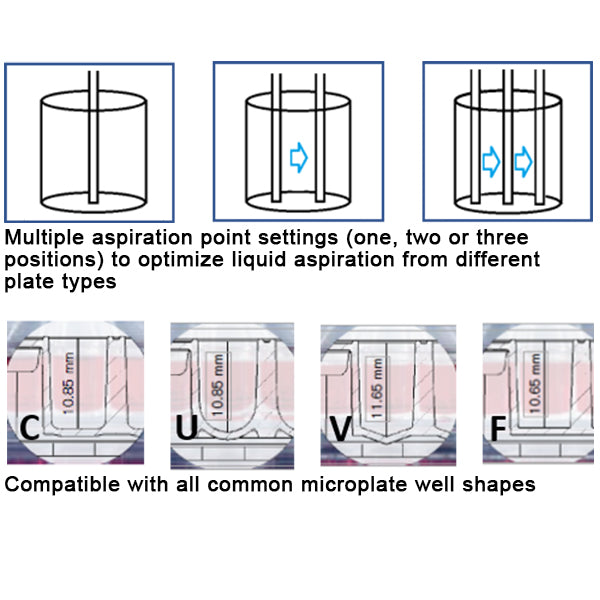

- Aspiration needle positioning accurate to 0.1 mm
- Stores up to 100 wash protocols; transfer by flash drive
- Accepts plates and strips with U, V, C or flat-bottom wells
- Level sensors on the 2 wash, 1 rinse and waste bottles
- Auto-rinse primes lines and wash heads against cross contamination

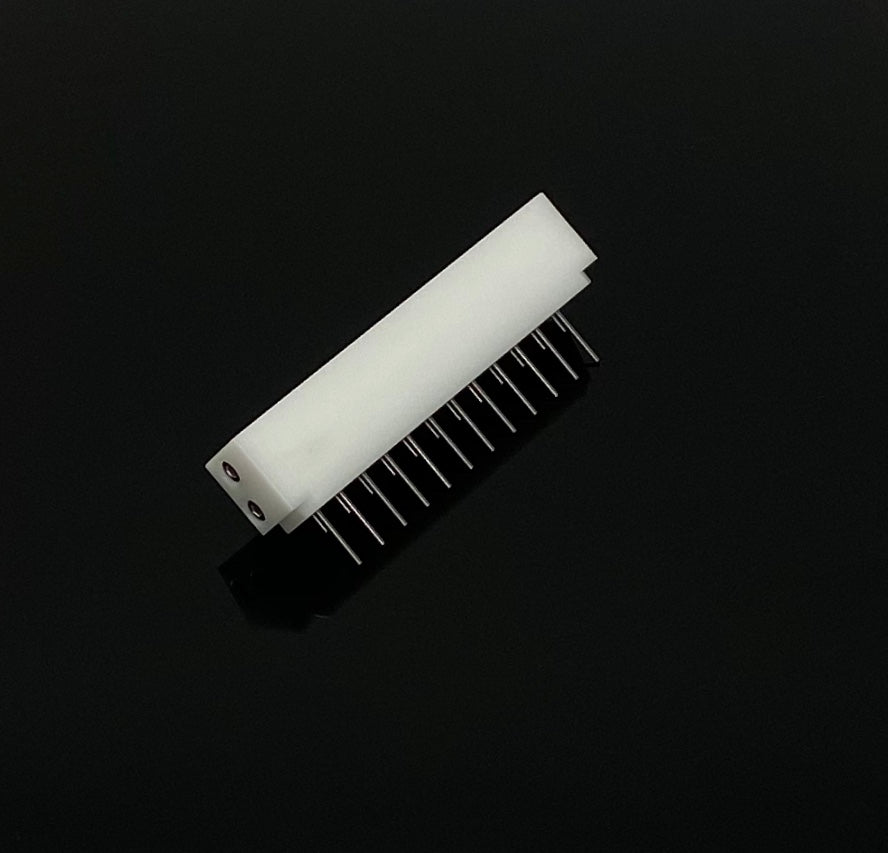

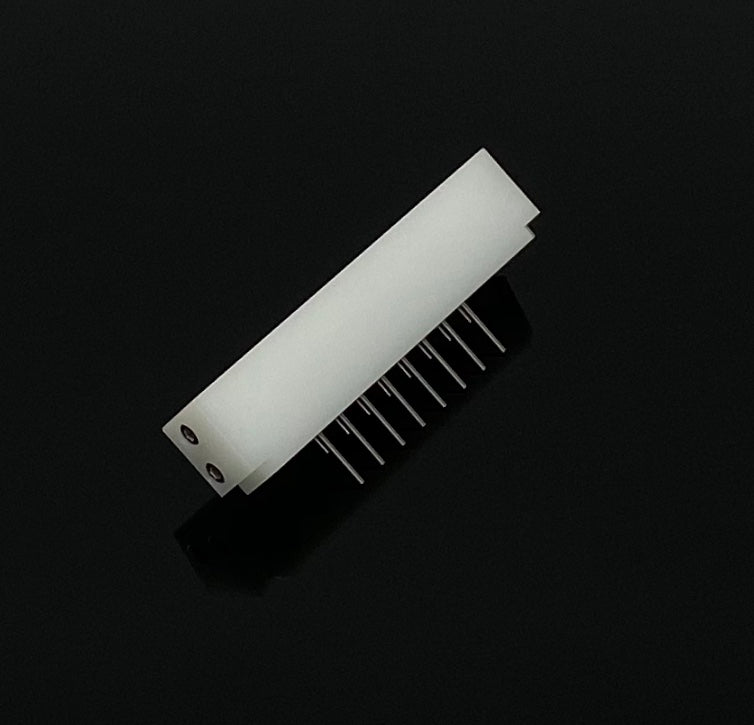

- Takes 8- or 12-channel manifolds (not included) in either orientation
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MW9600 / MW9600-E |
| Plate Format | 96-well full plates, partial plates and strips; U, V, C or flat bottom |
| Manifolds | 8- and 12-channel, purchased separately |
| Needle Position Accuracy | 0.1 mm |
| Protocol Memory | Up to 100 wash protocols |
| Bottles | 2 wash, 1 rinse, 1 waste, with liquid level sensors |
| Display | 4.3 in LCD with keypad |
| Data Transfer | Flash drive |
| Electrical | 115 V, US plug (MW9600); 230 V, European plug (MW9600-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MW9600 | 115V, US plug |
| MW9600-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| MR9600-BND | Accuris MR9600 Microplate Reader + MW9600 Washer Bundle MR9600-BND |
