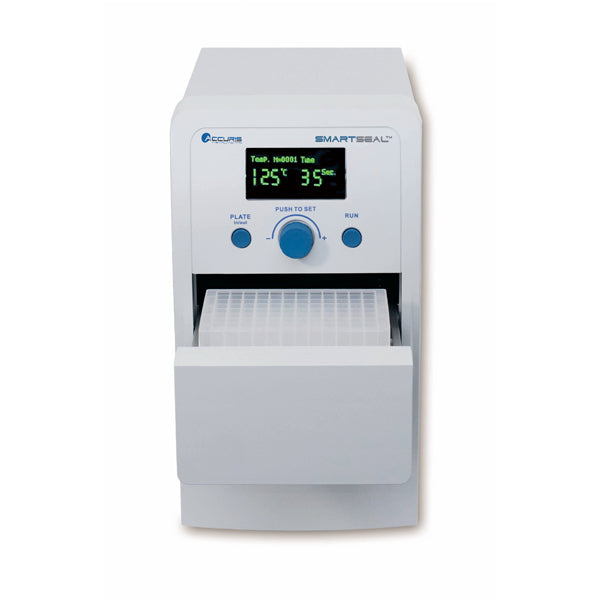

The SmartSeal MS1000 is a semi-automated sealer that applies foil or clear polymer seals uniformly across every well of a microplate. Time, temperature and pressure are set digitally, and sealing takes as little as 5 seconds once a plate is loaded and run is pressed. An included aluminum block adapter supports assay and PCR plates, so the unit handles deep-well storage plates up to 48 mm tall as well as skirted, semi-skirted and non-skirted PCR plates in polypropylene, polystyrene or polyethylene.
Key features
- Digital control of sealing time, temperature and pressure
- Seal cycles as short as 5 seconds
- Deep-well storage plates up to 48 mm tall

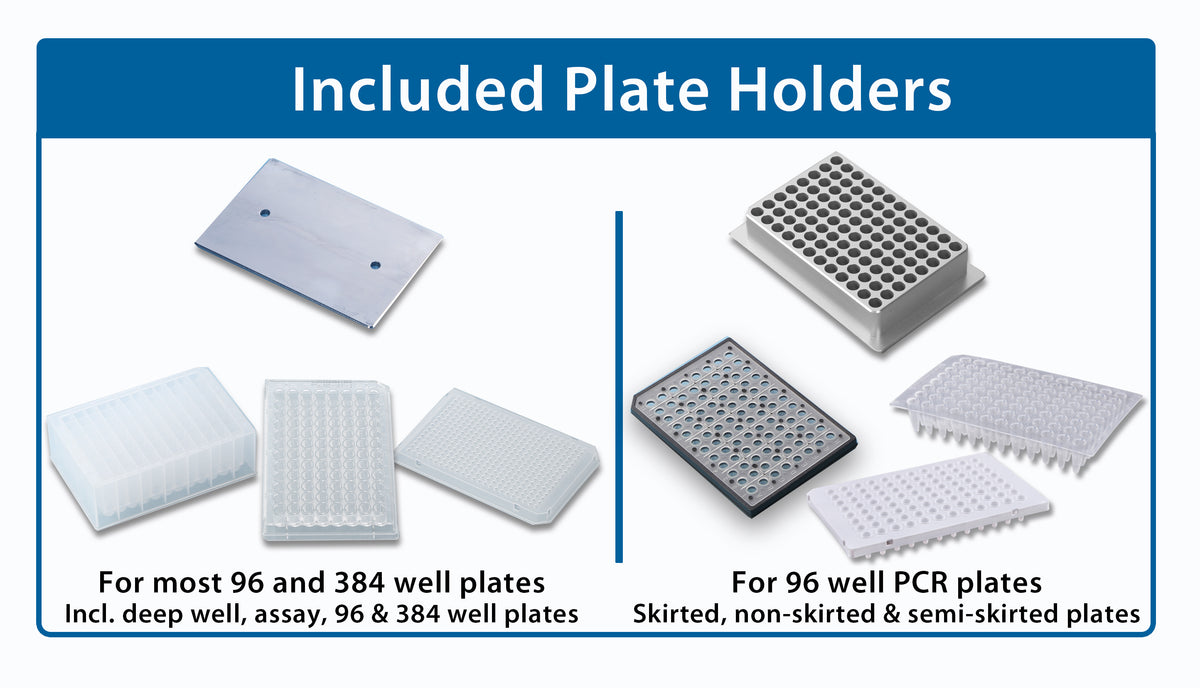

- Aluminum block adapter included for assay and PCR plates
- Works with foil or transparent polymer seals
- Load the plate and press run for consistent plate-to-plate seals
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MS1000 / MS1000-E |
| Adjustable Parameters | Time, temperature and pressure |
| Minimum Sealing Time | 5 seconds |
| Max Plate Height | 48 mm |
| Compatible Plates | Deep well (storage) plates, assay plates, PCR plates (skirted, semi-skirted and non-skirted) |
| Plate Materials | Polypropylene, polystyrene or polyethylene |
| Seal Types | Foil or polymer (transparent) |
| Included Adapter | Aluminum block adapter for assay and PCR plates |
| Electrical | 115 V (MS1000); 230 V (MS1000-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MS1000 | 115V, US plug |
| MS1000-E | 230V, European plug |
