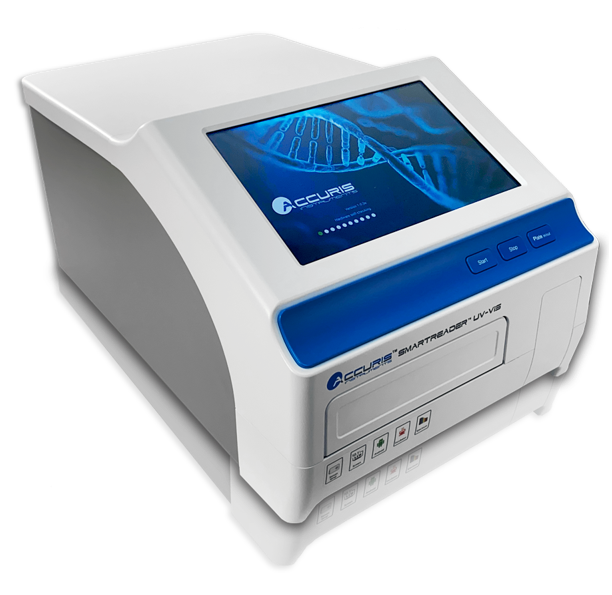

The MR9611 is the SmartReader UV-Vis absorbance reader fitted with a port for standard cuvette spectroscopy, so single samples and microplates are measured on one instrument. Its monochromator optics pick wavelengths between 200 and 1000 nm with no filters to change, and the plate carrier takes 96-well or 384-well formats. Endpoint, kinetic and spectral scan protocols are set up on a 10-inch color touch screen, results move to a flash drive over USB, and the reader runs without a computer.
Key features
- Cuvette port for standard cuvette spectroscopy alongside plate reads
- Filter-free monochromator optics, 200 to 1000 nm
- 96-well and 384-well plate capacity
- Plate layout screen labels standards, unknowns, blanks and controls
- Timed or pulsed linear plate shaking
- Stand-alone 10-inch touchscreen control with USB data transfer
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MR9611 / MR9611-E |
| Plate Format | 96- and 384-well |
| Optical System | Monochromator, no filters required |
| Wavelength Range | 200–1000 nm |
| Read Modes | Endpoint, kinetic, spectral scanning |
| Display | 10 in color touch screen |
| Plate Shaking | Linear; timed and pulsed |
| Data Transfer | USB flash drive |
| Cuvette Port | Standard cuvette |
| Electrical | 115 V, US plug (MR9611); 230 V, European plug (MR9611-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MR9611 | 115V, US plug |
| MR9611-E | 230V, European plug |
