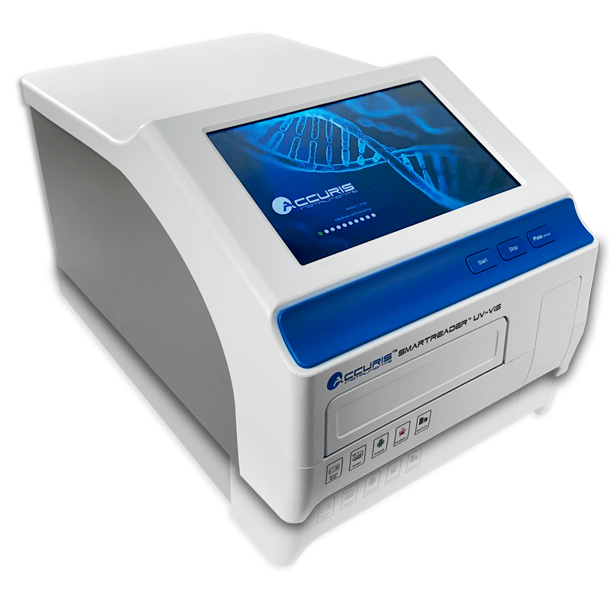

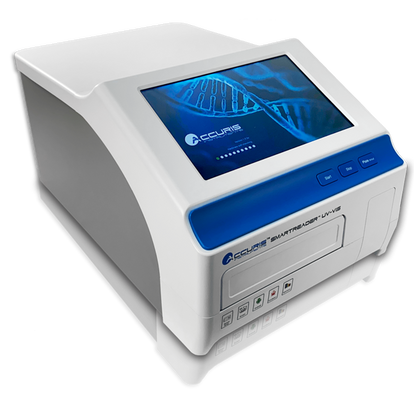

The SmartReader UV-Vis MR9610 is a stand-alone microplate absorbance reader built around a monochromator, so any wavelength from 200 to 1000 nm can be selected without filters. It reads standard 96-well and 384-well plates in endpoint, kinetic or spectral scanning modes, covering ELISA, Bradford, Lowry and turbidity assays as well as nucleic acid and protein quantitation. Programming is done on a 10-inch color touch screen with no PC required, and data exports to a USB flash drive.
Key features
- Monochromator wavelength selection, 200–1000 nm, no filters
- Accepts 96-well and 384-well plates
- Endpoint, kinetic and spectral scanning read modes
- Timed or pulsed linear plate shaking before or between reads
- 10-inch touch screen; USB flash drive export, no PC needed
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MR9610 / MR9610-E |
| Plate Format | 96- and 384-well |
| Optical System | Monochromator, no filters required |
| Wavelength Range | 200–1000 nm |
| Read Modes | Endpoint, kinetic, spectral scanning |
| Display | 10 in color touch screen |
| Plate Shaking | Linear; timed and pulsed |
| Data Transfer | USB flash drive |
| Electrical | 115 V, US plug (MR9610); 230 V, European plug (MR9610-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MR9610 | 115V, US plug |
| MR9610-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| MR9610-SDP | Accuris SmartDrop Accessory Plate MR9610-SDP |
Questions about the SmartReader UV-Vis Microplate Reader MR9610
What plates and wavelengths does the SmartReader UV-Vis Microplate Reader MR9610 handle?
The SmartReader UV-Vis Microplate Reader MR9610 takes 96- and 384-well and reads 200–1000 nm in endpoint, kinetic, spectral scanning mode; plate shaking: linear; timed and pulsed.
What accessories are available for the SmartReader UV-Vis Microplate Reader MR9610?
Accuris lists MR9610-SDP (SmartDrop Accessory Plate) for the SmartReader UV-Vis Microplate Reader MR9610.
Is the SmartReader UV-Vis Microplate Reader MR9610 available with a European plug?
Yes. MR9610-E is the European-plug version of MR9610: MR9610 is 115V with a US plug and MR9610-E is 230V with a European plug.
