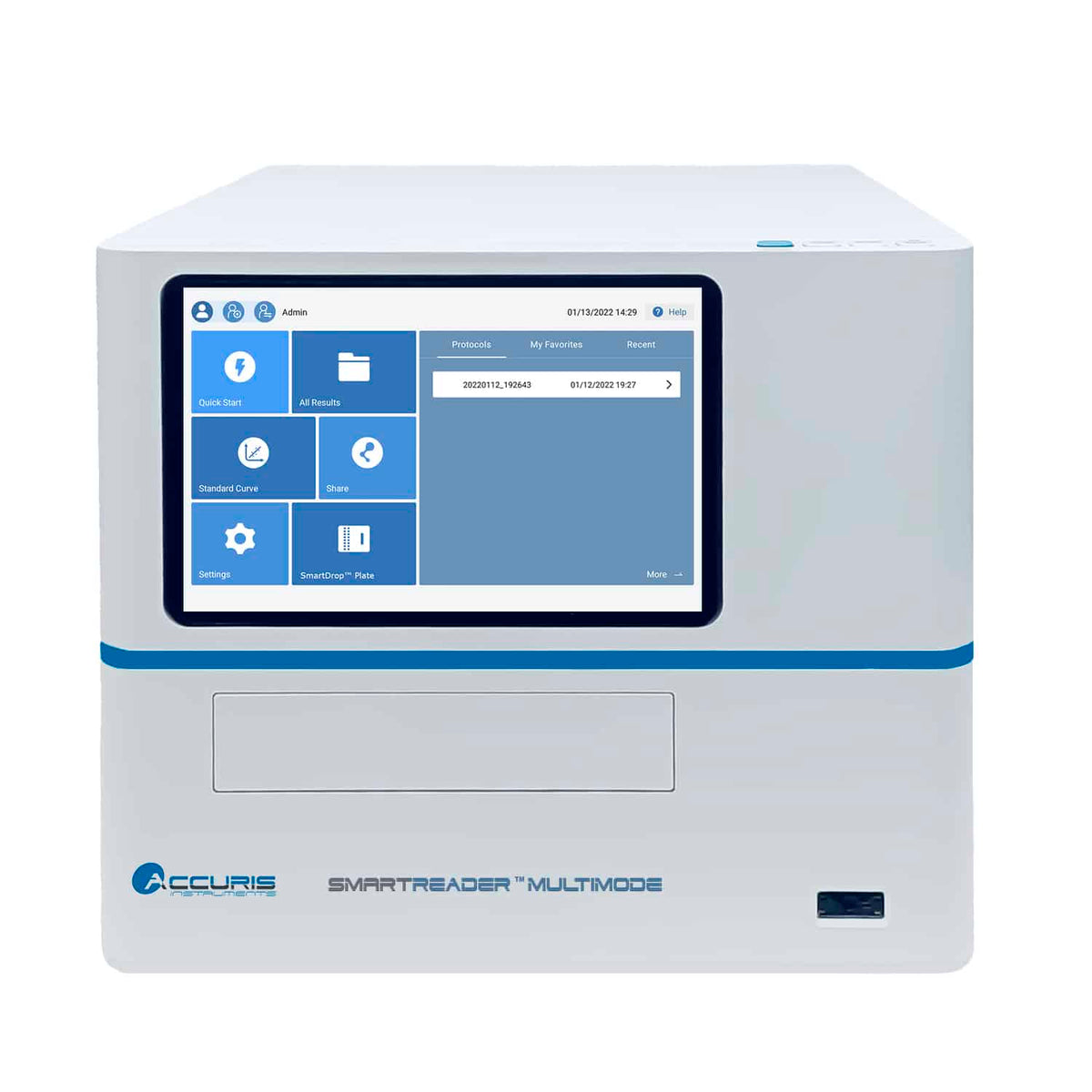

The SmartReader MultiMode MR9620 combines three detection systems in one microplate reader: a xenon flash lamp and monochromator for absorbance from 200 to 1000 nm in 1 nm steps, a filter module for fluorescence, and a PMT detector for luminescence. It runs standard 96-well plates and also accepts 6, 12, 24, 48 and 384-well formats. A built-in shaker offers linear, orbital and double-orbital modes, and top heating from ambient +4 °C to 45 °C limits condensation under lids. The reader self-tests and calibrates at startup.
Key features
- UV-Vis absorbance, 200–1000 nm in 1 nm steps
- Filter-module fluorescence and PMT-based luminescence detection
- Optional automatic injector modules for flash luminescence
- Plate formats from 6 to 384 wells
- Linear, orbital and double-orbital shaking; top heating to 45 °C
- 10-inch touch screen; optional PC software for FDA CFR Part 11
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MR9620 / MR9620-E |
| Detection Modes | Absorbance, fluorescence, luminescence |
| Plate Format | 6-, 12-, 24-, 48-, 96- and 384-well |
| Absorbance | Monochromator with xenon flash lamp, 200–1000 nm in 1 nm steps |
| Fluorescence | Filter module system |
| Luminescence | PMT detector; optional automatic injection modules |
| Plate Shaking | Linear, orbital, double-orbital |
| Incubation | Ambient +4 °C – 45 °C, top heating |
| Display | 10 in color touch screen |
| Software | Stand-alone; optional PC software (FDA CFR Part 11) |
| Electrical | 115 V, US plug (MR9620); 230 V, European plug (MR9620-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MR9620 | 115V, US plug |
| MR9620-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| MR9620-AIM1 | Accuris Automatic Injection Module MR9620-AIM1 |
| MR9620-AIM2 | Accuris Automatic Injection Module MR9620-AIM2 |
| MR9620-FM | Accuris Custom Fluorescence Filter Module MR9620-FM |
Questions about the SmartReader MultiMode Microplate Reader MR9620
What plates and wavelengths does the SmartReader MultiMode Microplate Reader MR9620 handle?
The SmartReader MultiMode Microplate Reader MR9620 takes 6-, 12-, 24-, 48-, 96- and 384-well; plate shaking: linear, orbital, double-orbital.
What accessories are available for the SmartReader MultiMode Microplate Reader MR9620?
Accuris lists MR9620-AIM1 (Automatic Injection Module), MR9620-AIM2 (Automatic Injection Module) and MR9620-FM (Custom Fluorescence Filter Module) for the SmartReader MultiMode Microplate Reader MR9620.
Is the SmartReader MultiMode Microplate Reader MR9620 available with a European plug?
Yes. MR9620-E is the European-plug version of MR9620: MR9620 is 115V with a US plug and MR9620-E is 230V with a European plug.
