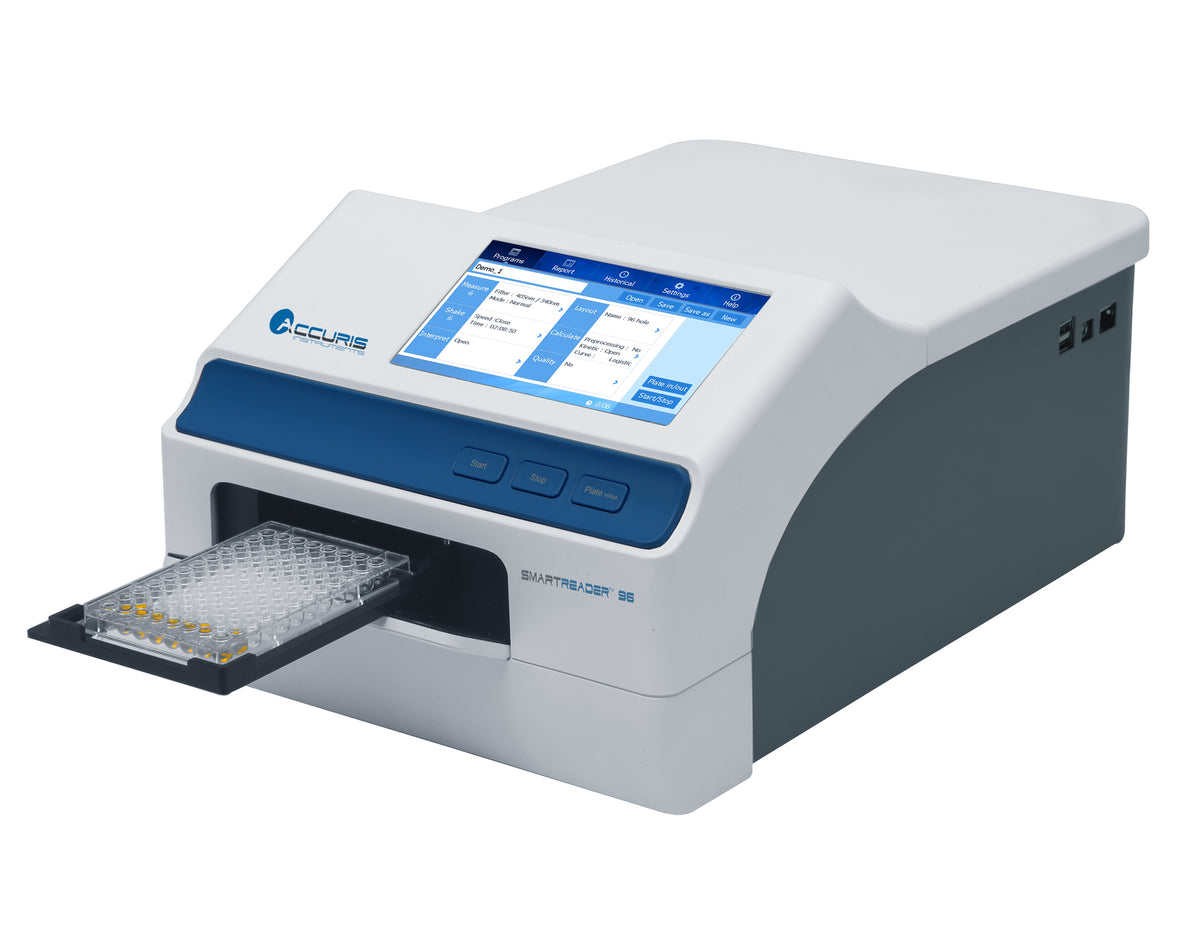

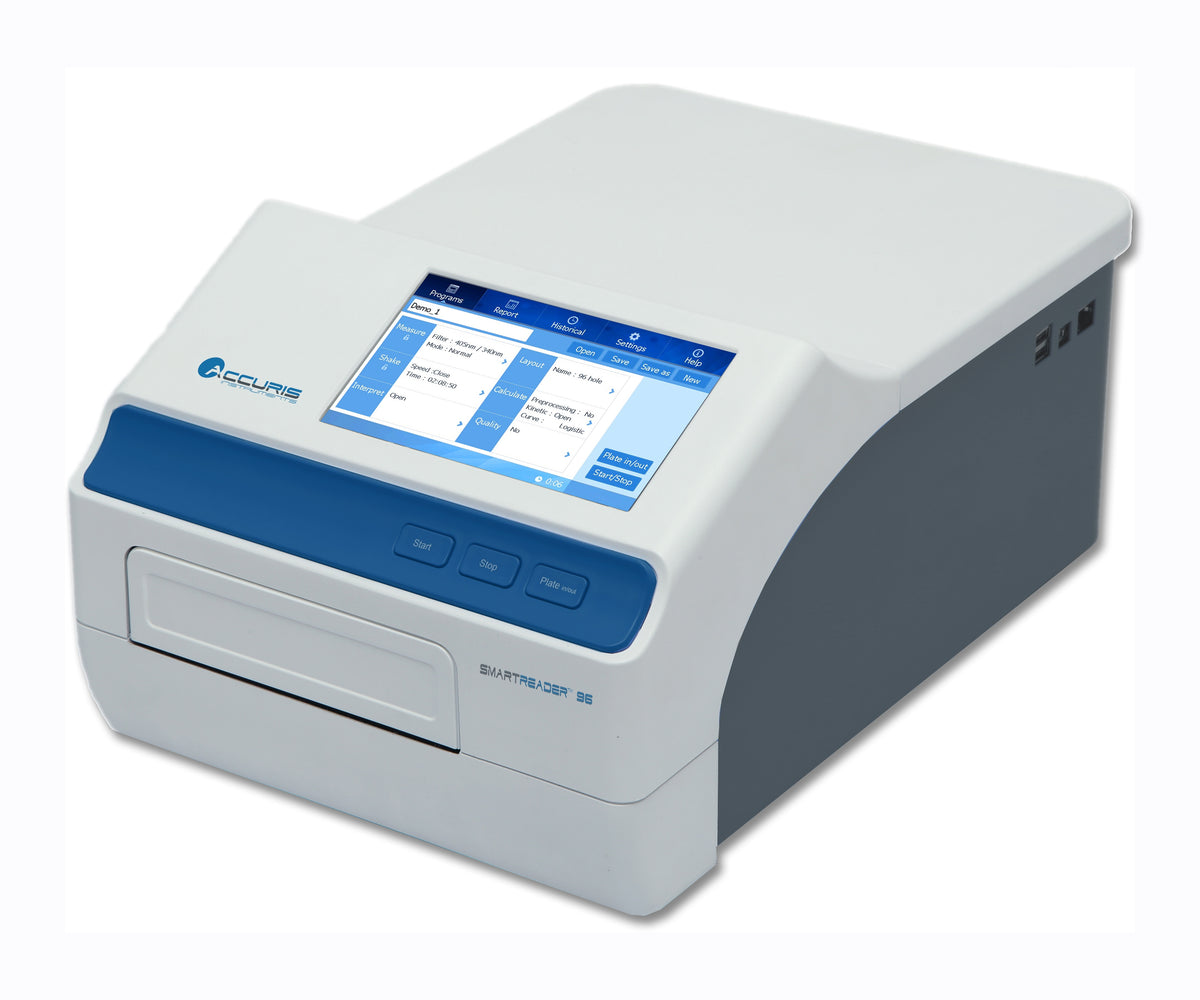

The Accuris SmartReader 96 MR9600 is a filter-based absorbance reader for 96-well microplates, covering wavelengths from 340 to 750 nm and an absorbance range of 0.0–4.000 Abs. An 8-channel vertical optical path reads the plate with zero dispersion, and an integrated multi-speed shaker mixes samples before measurement. The reader runs on its own from a 7-inch color touch screen, with results saved to a USB flash drive. It is offered in 115V and 230V versions.
Key features
- Filter-based optics spanning 340–750 nm
- Absorbance range of 0.0–4.000 Abs
- 8-channel vertical optical path with zero dispersion
- Built-in multi-speed shaker for mixing plates before a read
- 7-inch color touch screen; operates without a PC
- USB flash drive port for exporting data
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MR9600 / MR9600-E |
| Plate Format | 96-well |
| Optical System | Filter-based; 8-channel vertical optical path |
| Wavelength Range | 340–750 nm |
| Absorbance Range | 0.0–4.000 Abs |
| Display | 7 in color touch screen |
| Plate Shaking | Integrated, multi-speed |
| Data Transfer | USB flash drive |
| Electrical | 115 V, US plug (MR9600); 230 V, European plug (MR9600-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MR9600 | 115V, US plug |
| MR9600-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| MR9600-CAL | Accuris SmartReader 96 Calibration Plate MR9600-CAL |
| MR9600-PC | Accuris SmartReader PC Software MR9600-PC |
Questions about the SmartReader 96 Microplate Absorbance Reader MR9600
What plates and wavelengths does the SmartReader 96 Microplate Absorbance Reader MR9600 handle?
The SmartReader 96 Microplate Absorbance Reader MR9600 takes 96-well and reads 340–750 nm; plate shaking: integrated, multi-speed.
What accessories are available for the SmartReader 96 Microplate Absorbance Reader MR9600?
Accuris lists MR9600-CAL (SmartReader 96 Calibration Plate) and MR9600-PC (SmartReader PC Software) for the SmartReader 96 Microplate Absorbance Reader MR9600.
Is the SmartReader 96 Microplate Absorbance Reader MR9600 available with a European plug?
Yes. MR9600-E is the European-plug version of MR9600: MR9600 is 115V with a US plug and MR9600-E is 230V with a European plug.
