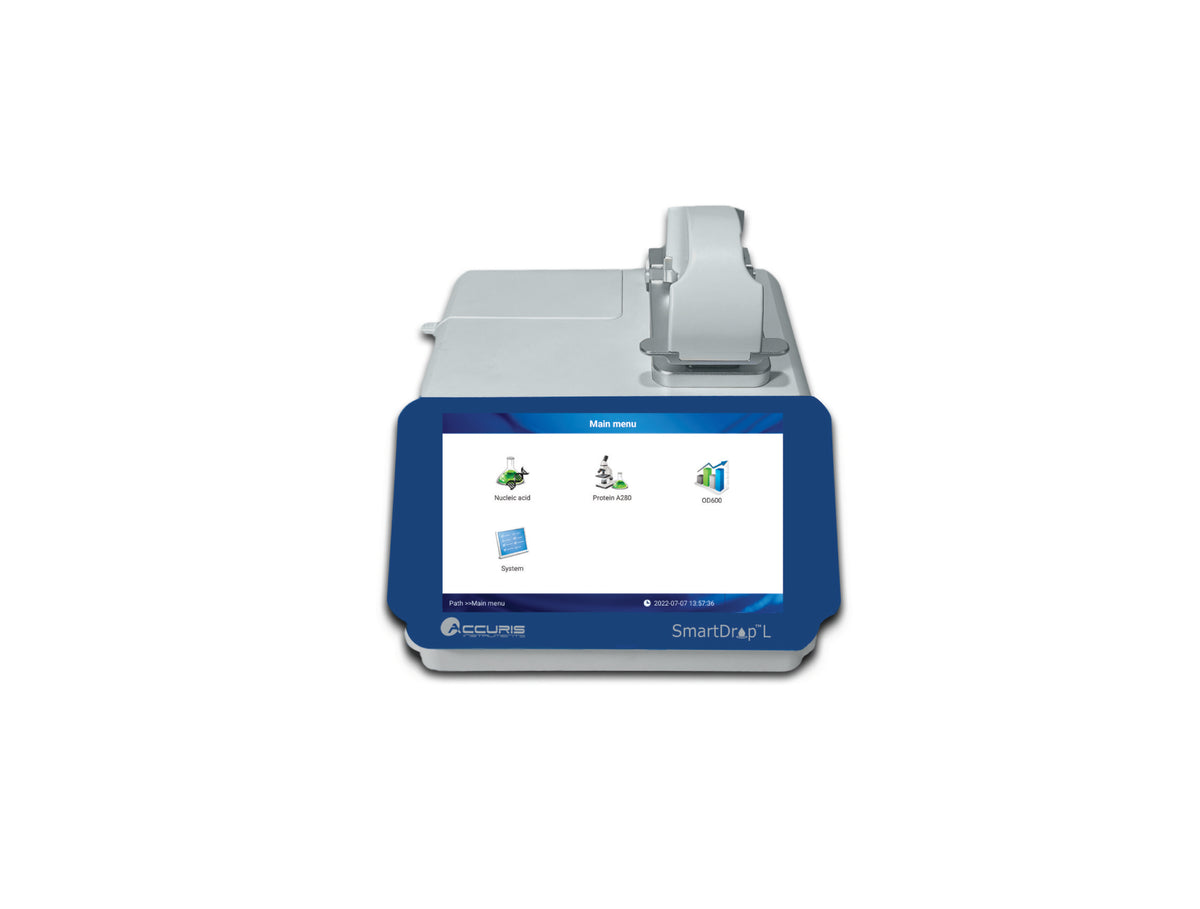

The SmartDrop L NS1000 is an LED-based microvolume spectrophotometer for routine DNA, RNA and protein concentration and purity checks. Samples of 1.0 to 2.0 µL are pipetted onto the pedestal and read through a fixed 0.5 mm path at 260 and 280 nm, with the 260/280 ratio calculated automatically in under 6 seconds. It detects dsDNA from 10 ng/µL up to 2,500 ng/µL and BSA down to 0.1 mg/mL. Operation is by touch screen with no PC, and data exports over USB.
Key features
- UV LED source and silicon photocell detector
- Readings at 260, 280 and 600 nm; fixed 0.5 mm path length
- Absorbance range 0.2–50 A (10 mm equivalent), precision 0.005 A
- Lower detection limit: dsDNA 10 ng/µL, BSA 0.1 mg/mL
- Built-in printer and cuvette port for OD600 readings
- Results in under 6 seconds; USB data export
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | NS1000 / NS1000-E |
| Path Length | 0.5 mm (fixed) |
| Light Source | UV LED |
| Detector | UV silicon photocell |
| Wavelengths | 260, 280 and 600 nm |
| Sample Volume | 1.0–2.0 µL |
| Absorbance Range | 0.2–50 A (10 mm equivalent) |
| Absorbance Precision | 0.005 A |
| Lower Limit of Detection | dsDNA: 10 ng/µL; BSA: 0.1 mg/mL |
| Upper Limit of Detection | dsDNA: 2,500 ng/µL |
| Detection Time | < 6 seconds |
| Data Export | USB |
| Electrical | 24 V DC, 2 A; 25 W |
| Dimensions (W × D × H) | 8.2 × 11.0 × 7.3 in (20.8 × 28.0 × 18.6 cm) |
| Weight | 7.9 lb (3.6 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| NS1000 | 115V, US plug |
| NS1000-E | 230V, European plug |
