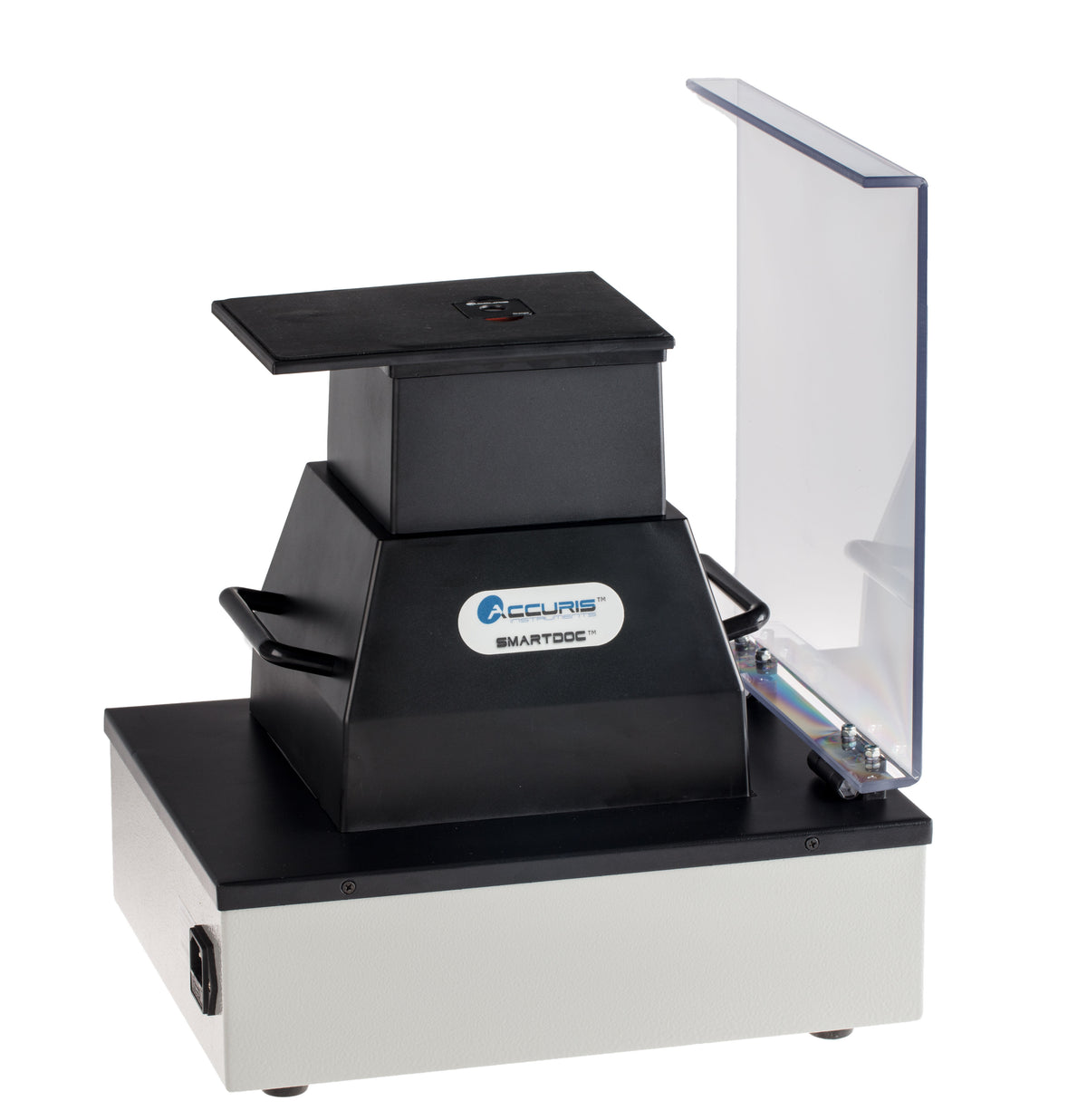

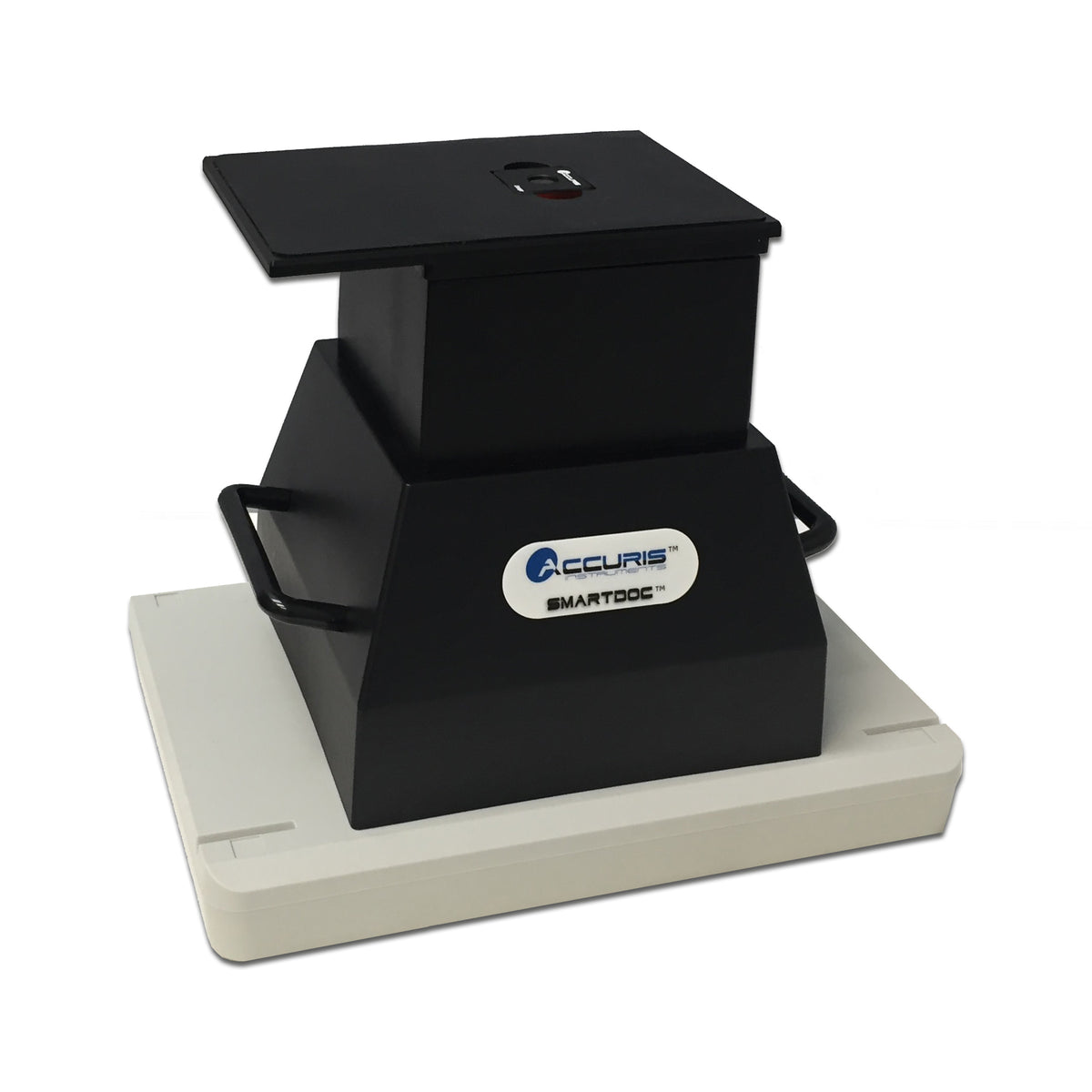

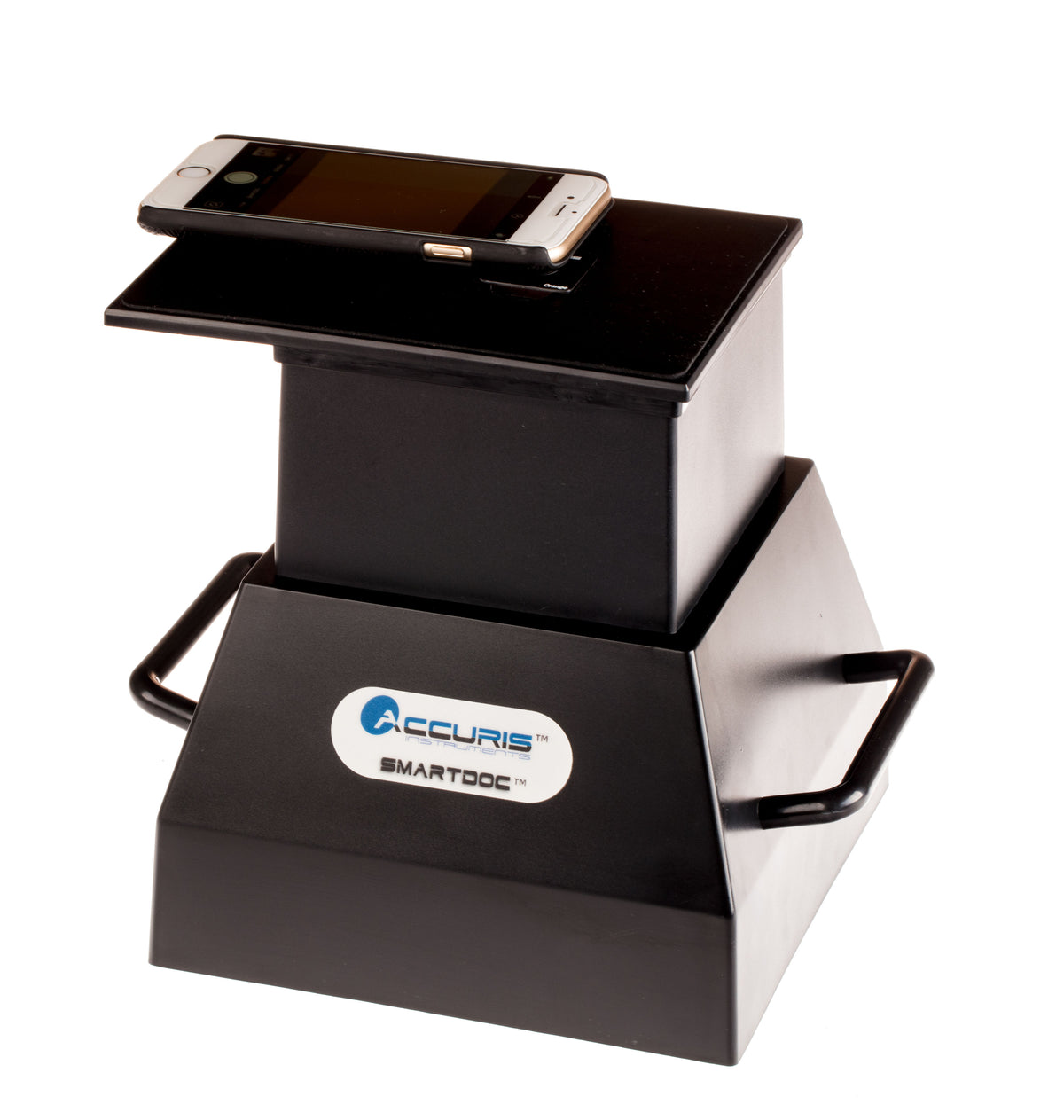

The SmartDoc 2.0 E5001-SD is an imaging enclosure that turns a smartphone camera into a gel documentation setup on an existing UV or visible blue light transilluminator. Its 19 × 19 cm base sits on most transilluminators, and the included extending adapter frames gels up to 15 × 15 cm; remove it for close-ups of smaller gels. An orange photo filter for blue-light work is supplied. For UV imaging, optional 535 nm, 590 nm and UV-blocking filters are offered, the last optimized for the Accuris E3100.
Key features
- Works with common smartphones as the camera
- 19 × 19 cm base fits most UV and blue light transilluminators
- Extending adapter for full-frame imaging of gels up to 15 × 15 cm
- Orange photo filter included for blue light excitation
- Optional 535 nm (green stains) and 590 nm (EtBr) filters for UV imaging
- Use E5000-MAT to mask illuminators larger than 19 × 19 cm
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E5001-SD |
| Base Size | 19 × 19 cm |
| Max Gel Size | 15 × 15 cm (with extending adapter) |
| Photo Filter | Orange, included; 535 nm, 590 nm and UV-blocking filters optional |
| Compatibility | Smartphones; UV or blue light transilluminators |
| Warranty | 2 years |
