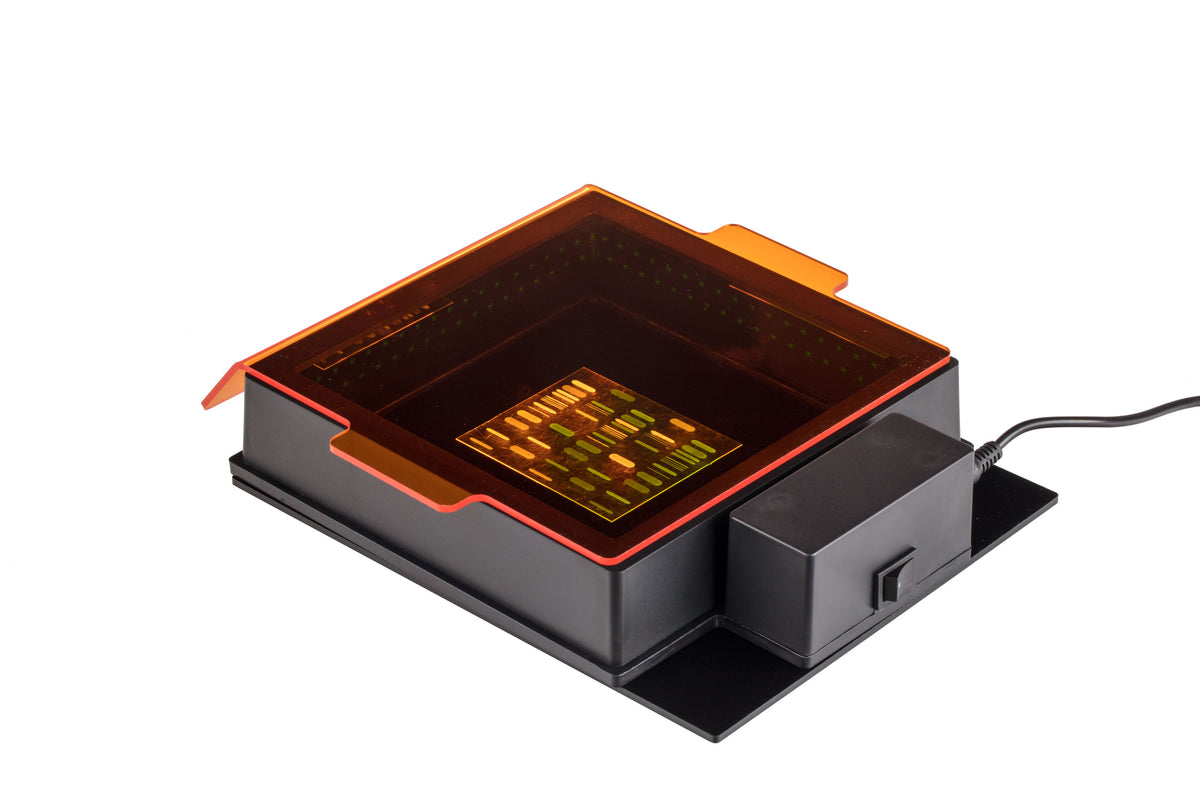

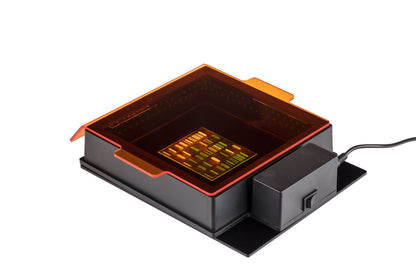

The SmartDoc 2.0 E5001-SDB combines a blue LED illumination base, an orange viewing cover and a smartphone imaging enclosure for viewing and documenting nucleic acid gels without UV. The base peaks at 460 nm to excite green fluorescent stains such as SYBR Green, SmartGlow, GelStar and GelGreen without damaging DNA. The 18 × 18 cm orange cover filters out the blue light and can be propped at an angle for band cutting, while the enclosure images gels up to 15 × 15 cm through a 12 mm orange photo filter.
Key features
- High-intensity blue LED base with peak output at 460 nm

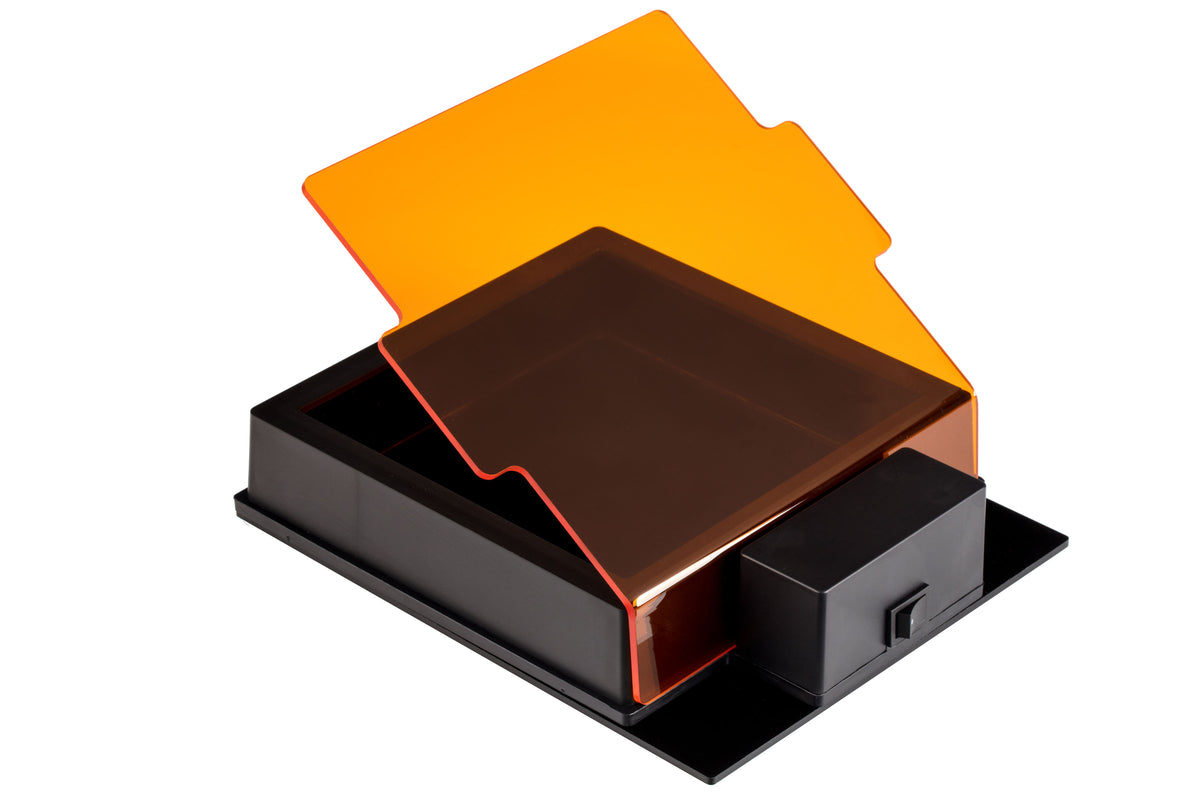

- Orange PMMA viewing cover, 18 × 18 cm, tilts for band excision

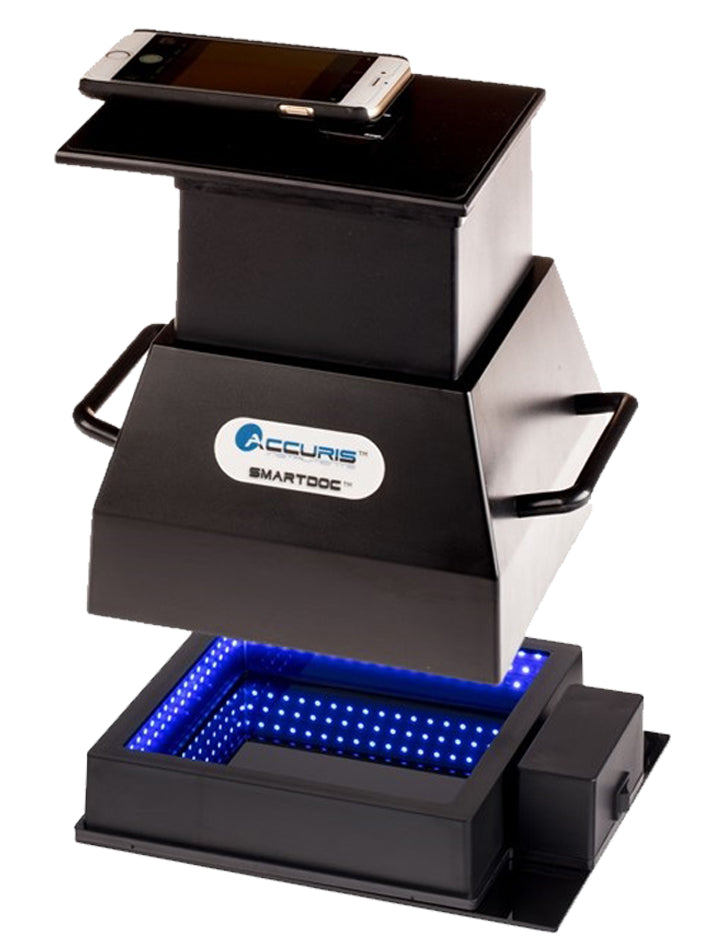

- Imaging enclosure with a 12 mm aperture orange photo filter
- Images gels up to 15 × 15 cm with a camera phone or tablet
- Enclosure also fits existing UV or blue light transilluminators
- 100V to 230V input; 9 × 7.5 × 8.6 in
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E5001-SDB / E5001-SDB-E |
| Max Gel Size | 15 × 15 cm |
| Excitation Source | High-intensity blue LED, 460 nm peak |
| Photo Filter | Orange PMMA, 12 mm aperture |
| Viewing Cover | Orange PMMA, 18 × 18 cm |
| Phone Compatibility | Smartphones and tablets with a camera |
| Dimensions (W × D × H) | 9 × 7.5 × 8.6 in (23 × 19 × 22 cm) |
| Electrical | 100–230 V, 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E5001-SDB | 115V, US plug |
| E5001-SDB-E | 230V, European plug |
