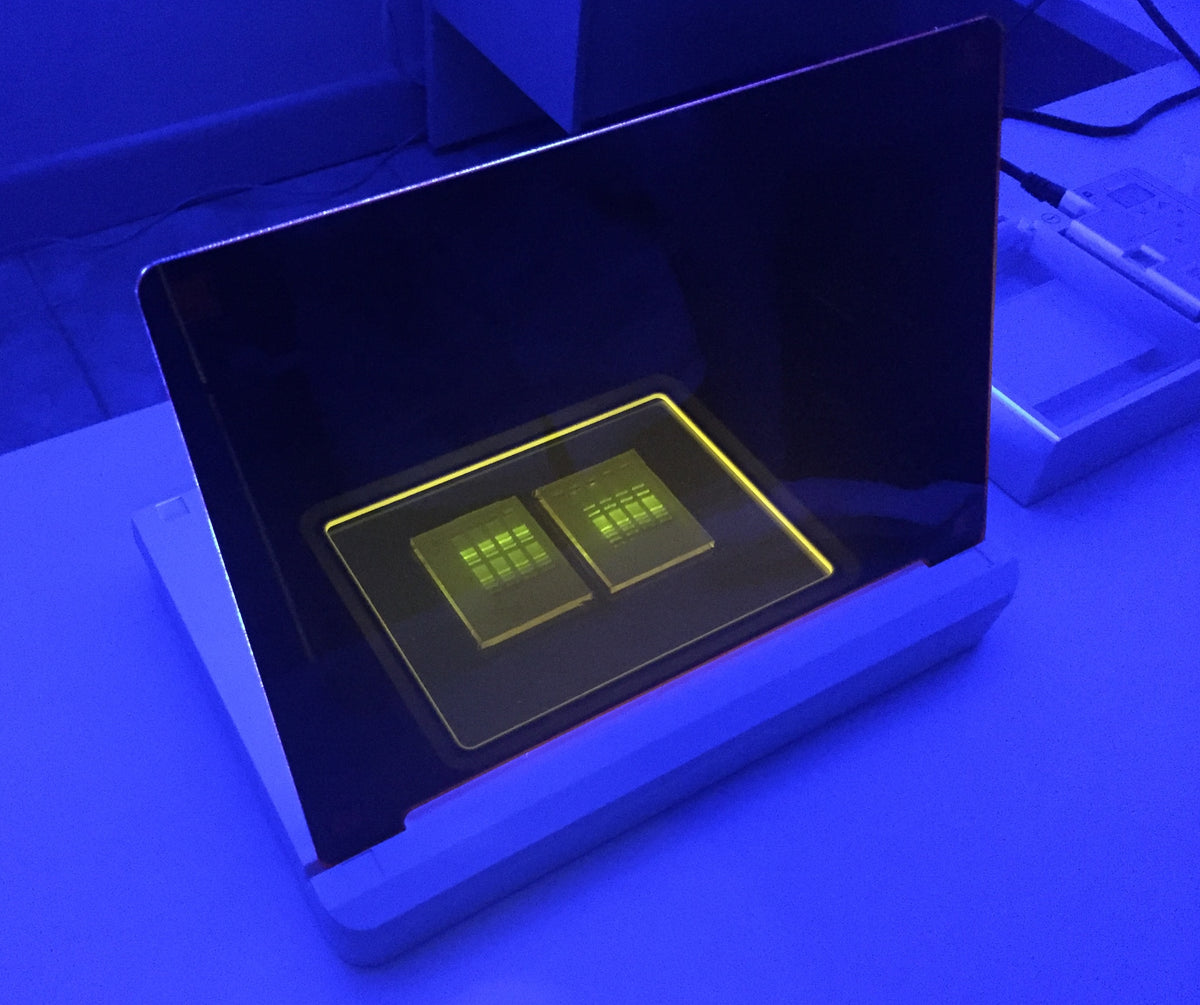

The SmartBlue E4000 is a blue LED transilluminator with peak emission at 465 nm, matched to green fluorescent stains such as SmartGlow, SYBR Green, SYBR Safe, SYBR Gold, GelStar and GelGreen; EtBr also excites, though less brightly than under UV. Blue light does not damage DNA, which supports downstream cloning efficiency. The 17 × 12 cm viewing surface sits under an amber emission filter cover that lies flat for viewing, tilts for band excision and lifts off for documentation.
Key features
- High-intensity blue LEDs with peak emission at 465 nm
- 17 × 12 cm viewing surface with uniform illumination

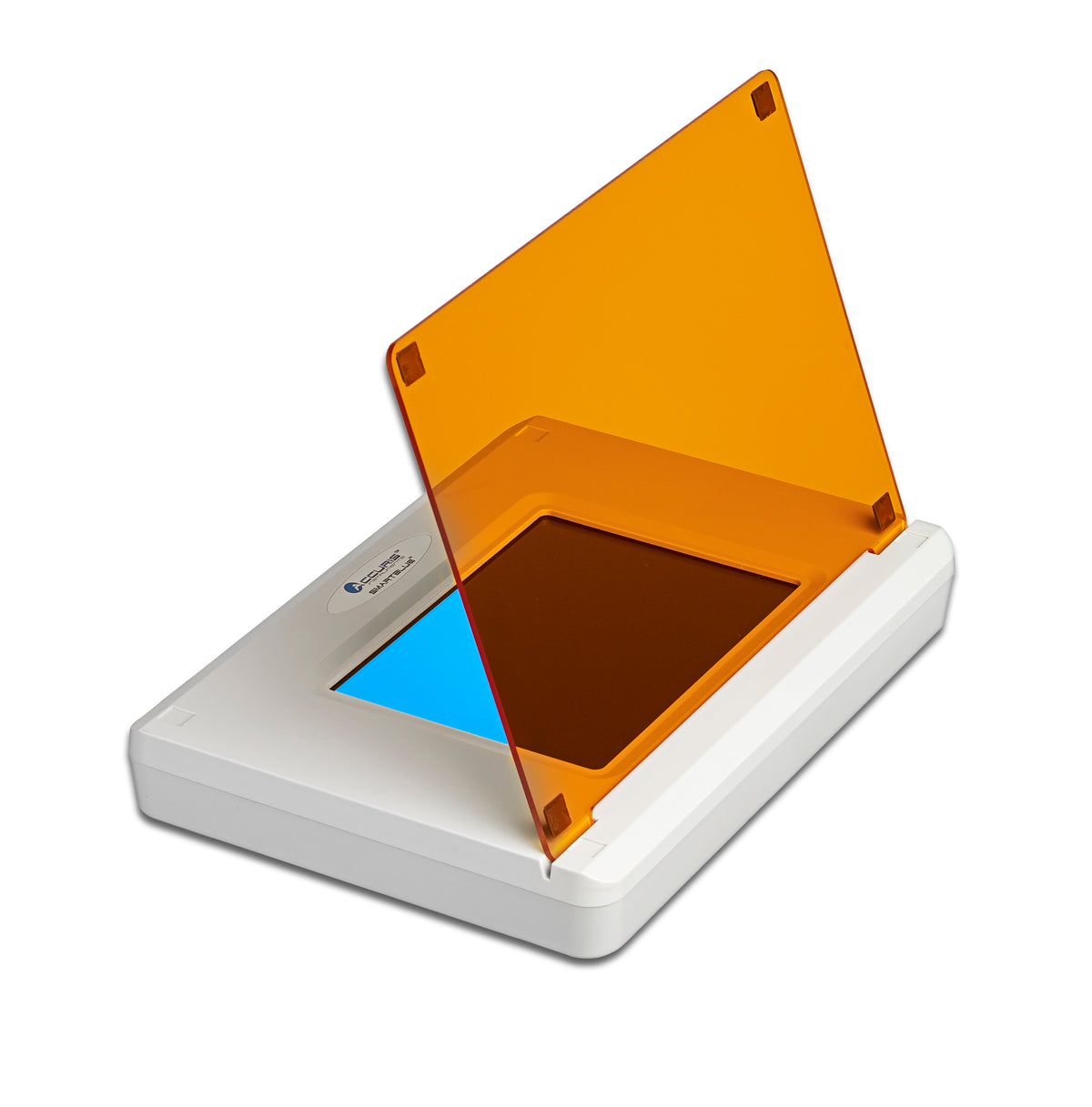

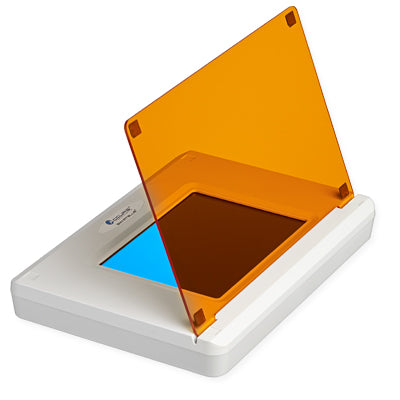

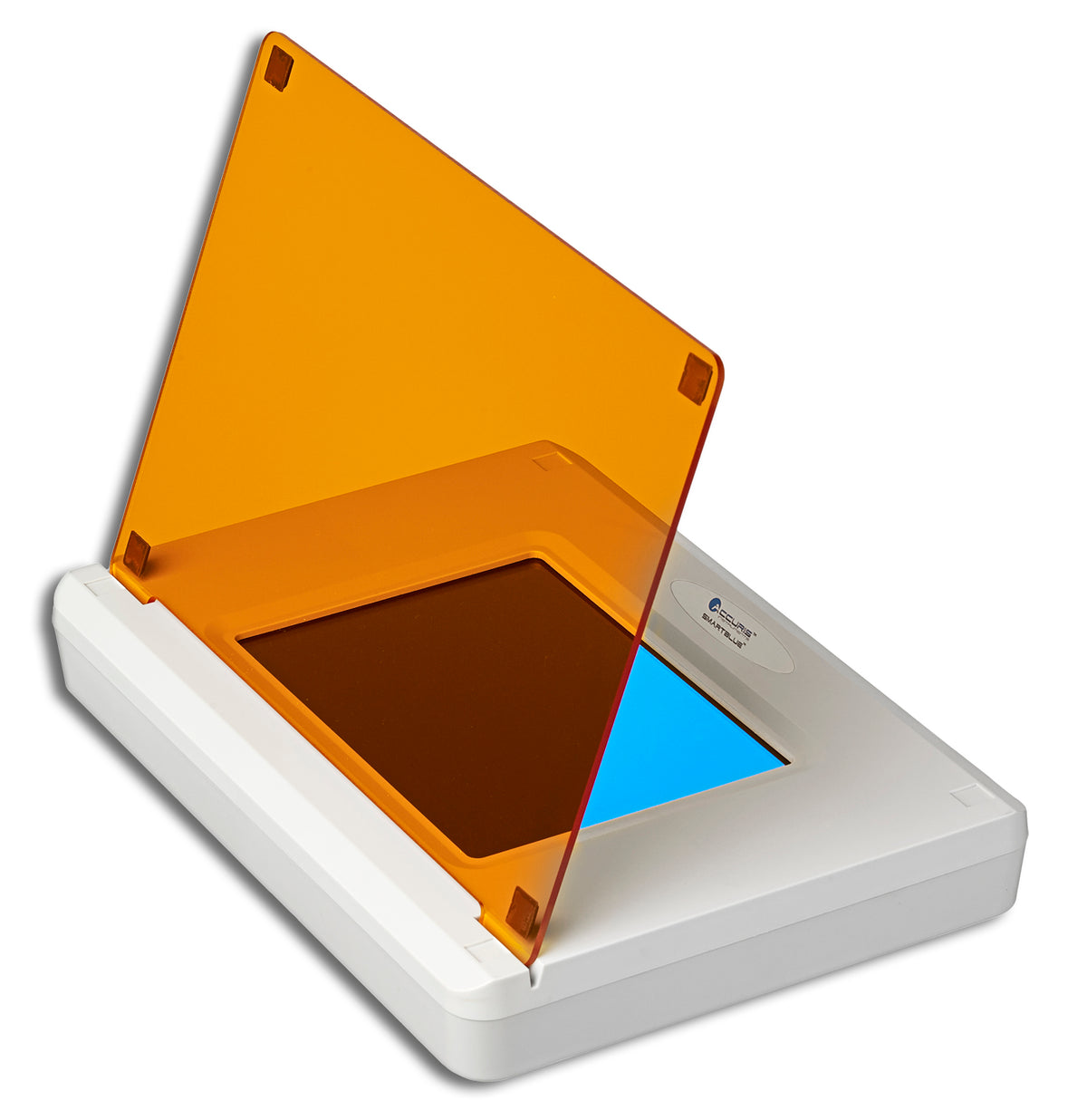

- Two-position amber filter cover: flat for viewing, angled for band cutting
- Cover removes completely for gel documentation
- Optional E4000-VG1 amber viewing glasses
- 30.5 × 21.5 × 5 cm, 1.2 kg; 100 to 240V input
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E4000 / E4000-E |
| Light Source | High-intensity blue LEDs |
| Wavelength | 465 nm peak |
| Viewing Surface | 17 × 12 cm |
| Filter Cover | Amber, two-position, removable |
| Dimensions | 30.5 × 21.5 × 5 cm |
| Weight | 2.6 lb (1.2 kg) |
| Electrical | 100–240 V, 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E4000 | 100–240V, US plug |
| E4000-E | 100–240V, European plug |
