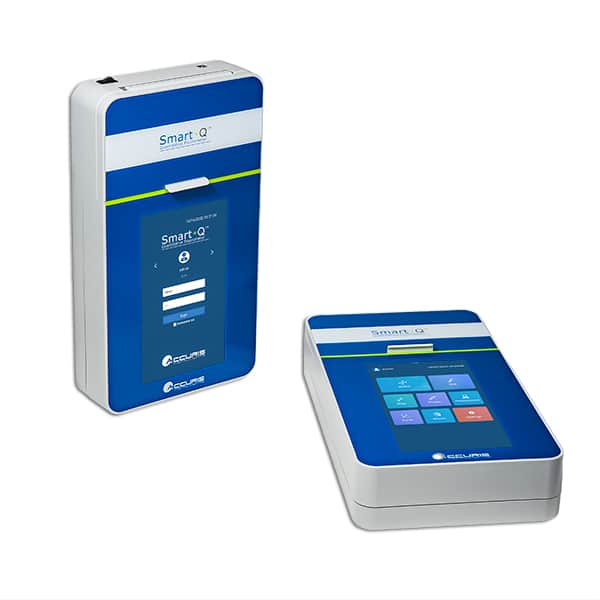

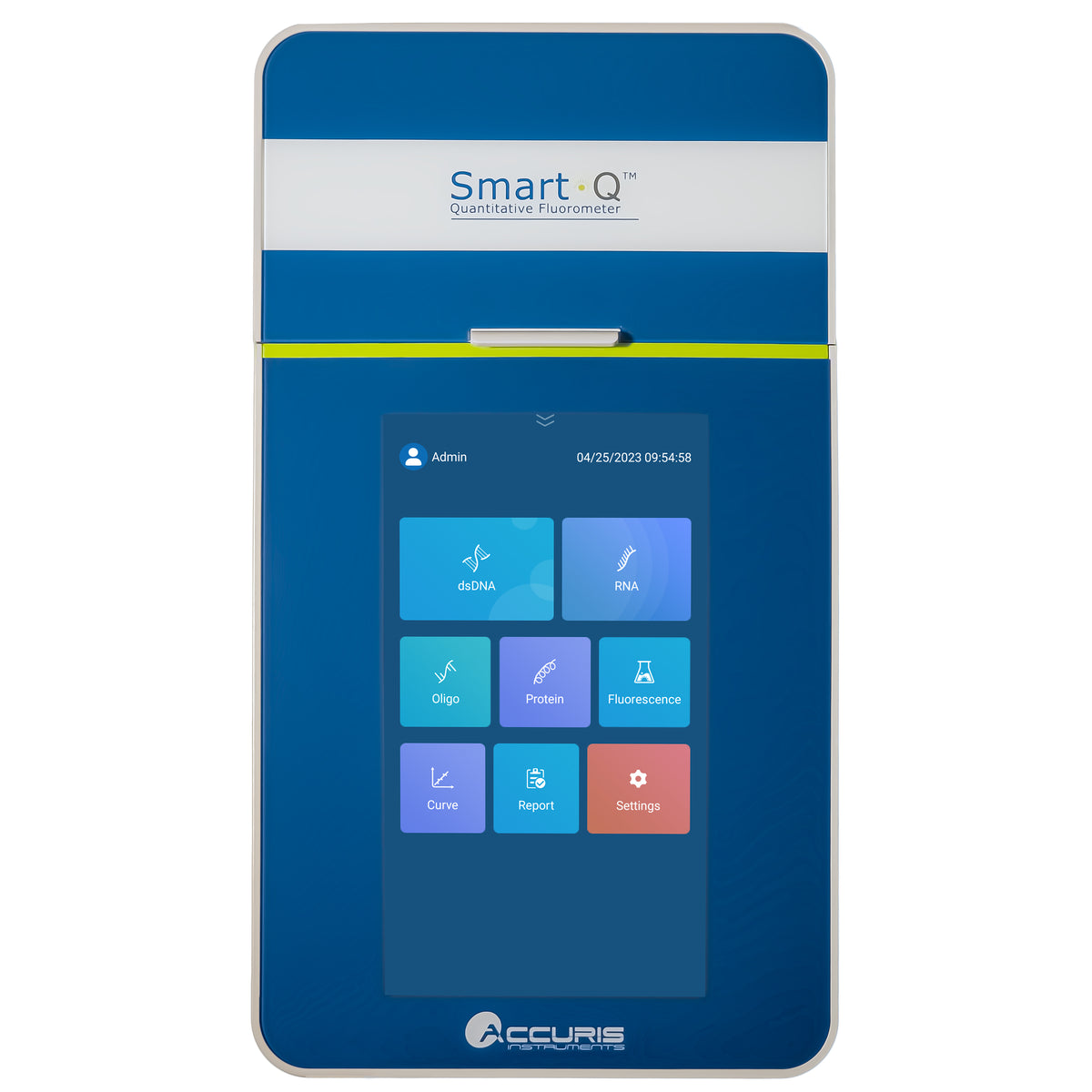

The Smart-Q 100 F1001 is a single-sample fluorometer for quantifying DNA, RNA and protein with dye-based assays, which bind selectively to their target and give higher specificity than UV absorbance. Blue (460 ± 20 nm) and red (625 ± 20 nm) LED excitation channels feed photodiode detectors reading green 525–570 nm and red 670–725 nm emission. It measures 0.5 mL assay tubes over 5 orders of magnitude, down to 0.1 pg/µL dsDNA, and returns results in under 6 seconds on a 7.0-inch touch screen.
Key features
- Reads one 0.5 mL assay tube at a time
- Blue 460 nm and red 625 nm LED excitation (± 20 nm)
- Emission channels 525–570 nm and 670–725 nm
- Dynamic range of 5 orders of magnitude; dsDNA to 0.1 pg/µL
- Built-in reagent calculators and preprogrammed protocols
- 16.1 × 28.7 × 6.1 cm, 1.6 kg; USB flash drive export
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | F1001 / F1001-E |
| Capacity | Single sample |
| Display | 7.0 in color touch screen |
| Dynamic Range | 5 orders of magnitude |
| Light Source | Blue and red LED |
| Excitation Wavelengths | Blue: 460 ± 20 nm; Red: 625 ± 20 nm |
| Emission Wavelengths | Green: 525–570 nm; Red: 670–725 nm |
| Detector | Photodiodes (300–1,000 nm) |
| Consumables | 0.5 mL assay tubes |
| Read Time | < 6 seconds |
| Data Export | USB flash drive |
| Input Voltage | 24 V DC, 2 A |
| Dimensions (W × D × H) | 6.34 × 11.30 × 2.40 in (16.1 × 28.7 × 6.1 cm) |
| Weight | 3.5 lb (1.6 kg) |
Ordering information
| Catalog number | Power |
|---|---|
| F1001 | 115V, US plug |
| F1001-E | 230V, European plug |
