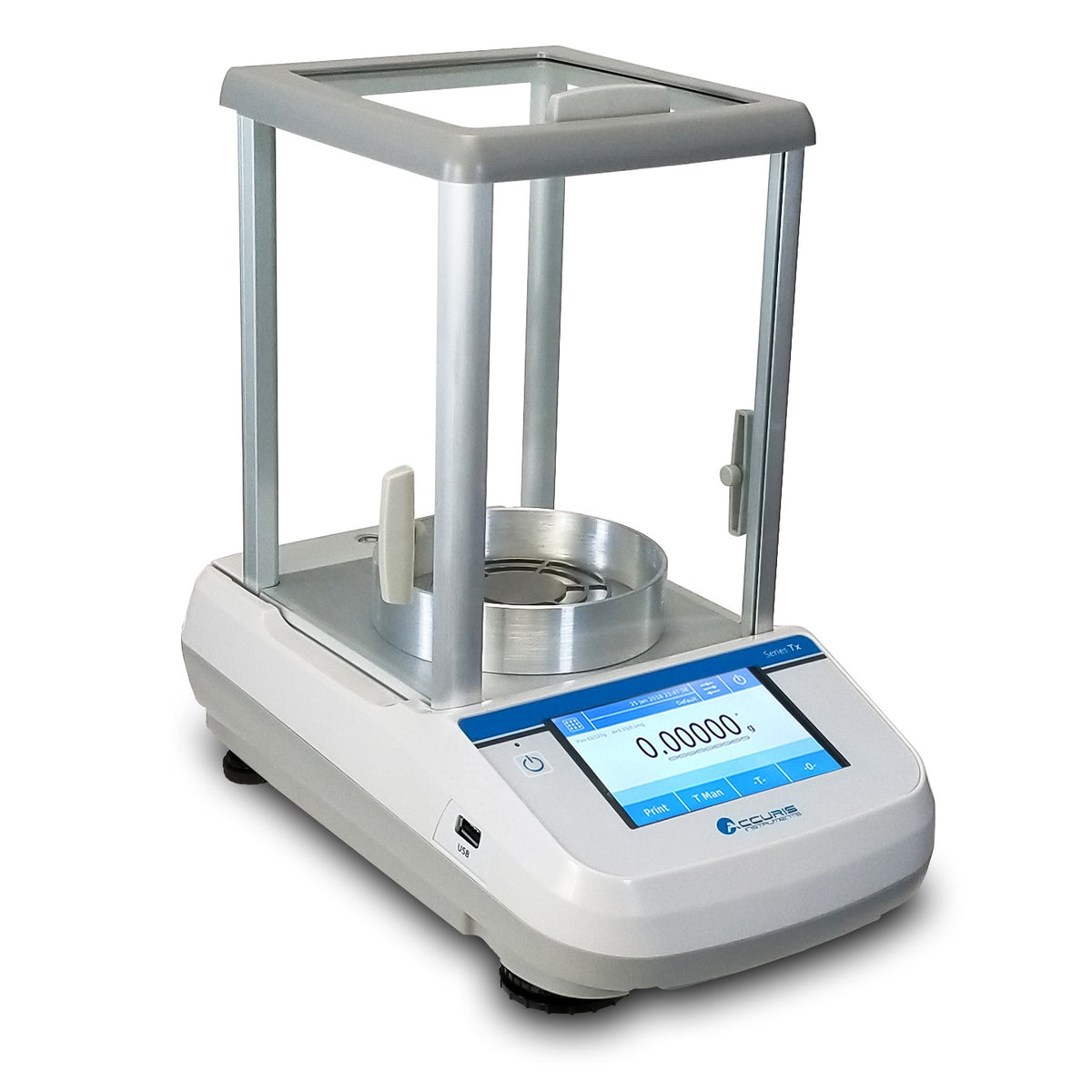

The W3002A-120 is the semi-micro model of the Accuris Series Tx, with two weighing ranges: 0.00001 g readability up to 62 g and 0.0001 g up to 120 g. Linearity is ±0.08 mg in the fine range and ±0.2 mg in the full range. A thermal probe in the EFR weigh cell compensates for small temperature shifts, and internal calibration can run on a timed schedule. Operation is through a 5.25 × 1.5 inch color touch screen, and results export over USB or RS232. A stable surface such as a marble slab table is required for best performance.
Key features
- Fine range 62 g x 0.00001 g; full range 120 g x 0.0001 g
- Repeatability ±0.03 mg / ±0.1 mg; linearity ±0.08 mg / ±0.2 mg
- 5.25 × 1.5 in color touch screen with icon menus
- Internal calibration with timed auto-cal, plus external calibration
- USB flash-drive data storage and RS232 port
- 80 mm pan, glass draft shield; built-in temperature compensation
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3002A-120 |
| Capacity | 120 g |
| Readability | 0.00001 g up to 62 g; 0.0001 g up to 120 g |
| Linearity | ±0.08 mg (to 62 g); ±0.2 mg (to 120 g) |
| Repeatability | ±0.03 mg (to 62 g); ±0.1 mg (to 120 g) |
| Pan Size | 80 mm round |
| Draft Shield | Glass |
| Calibration | Internal and external |
| Weighing Units | g, mg, carats, oz, lb, dwt, t oz, gn, % |
| Display | 5.25 × 1.5 in color touch screen |
| Connectivity | USB and RS232 |
| Weigh Cell | Electromagnetic Force Restoration (EFR) |
| Weight | 13 lb (6 kg) |
| Warranty | 2 Years |
