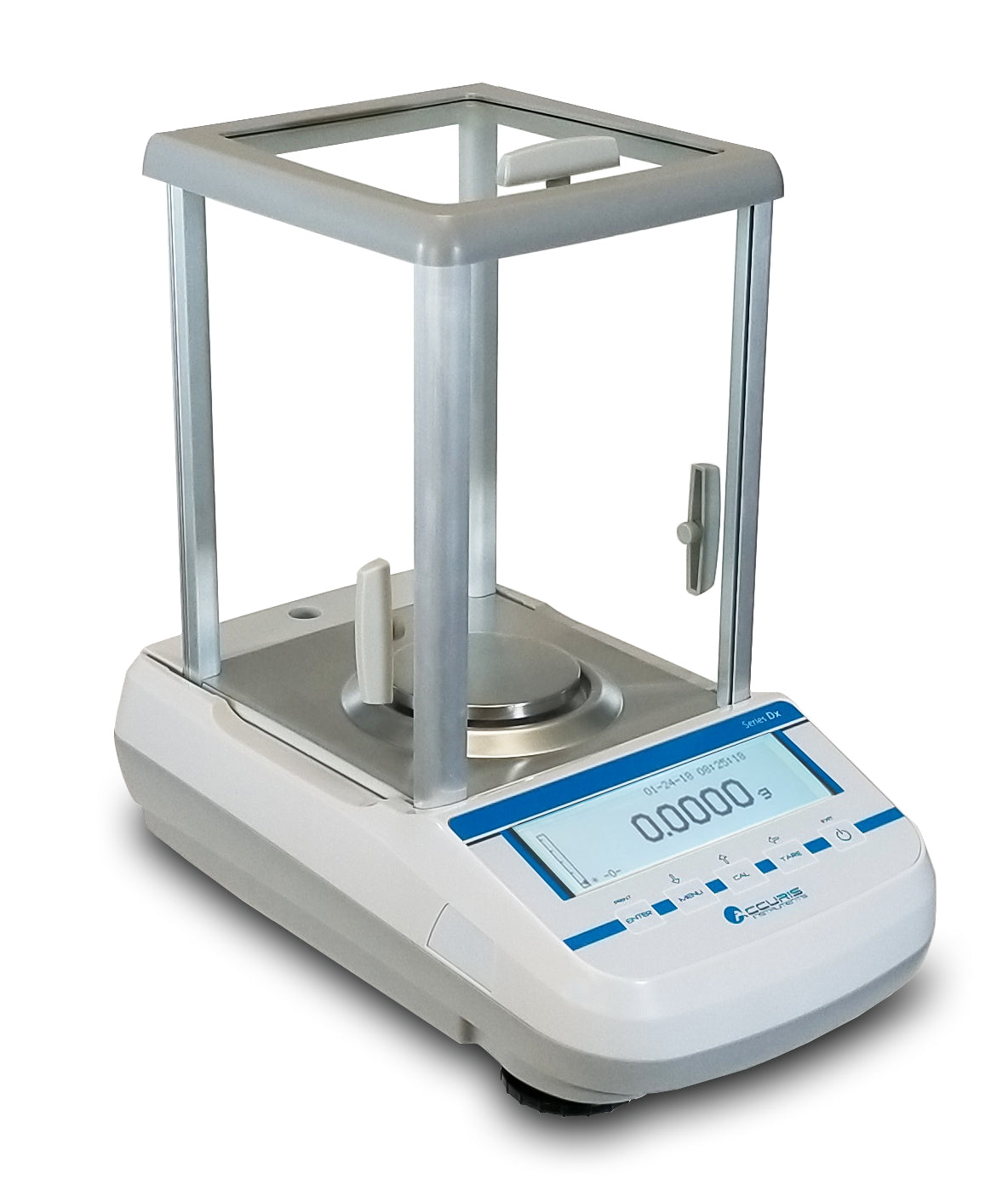

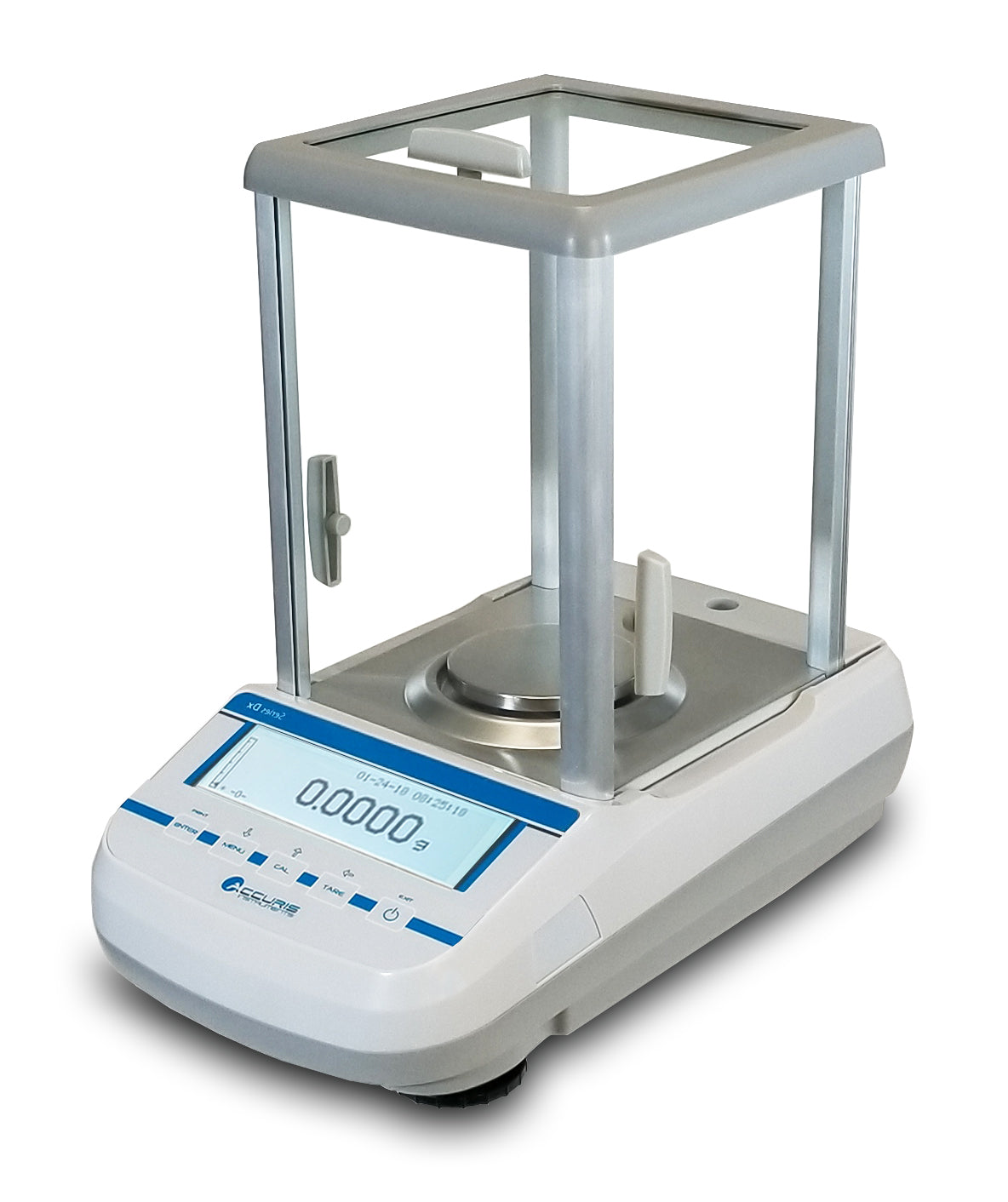

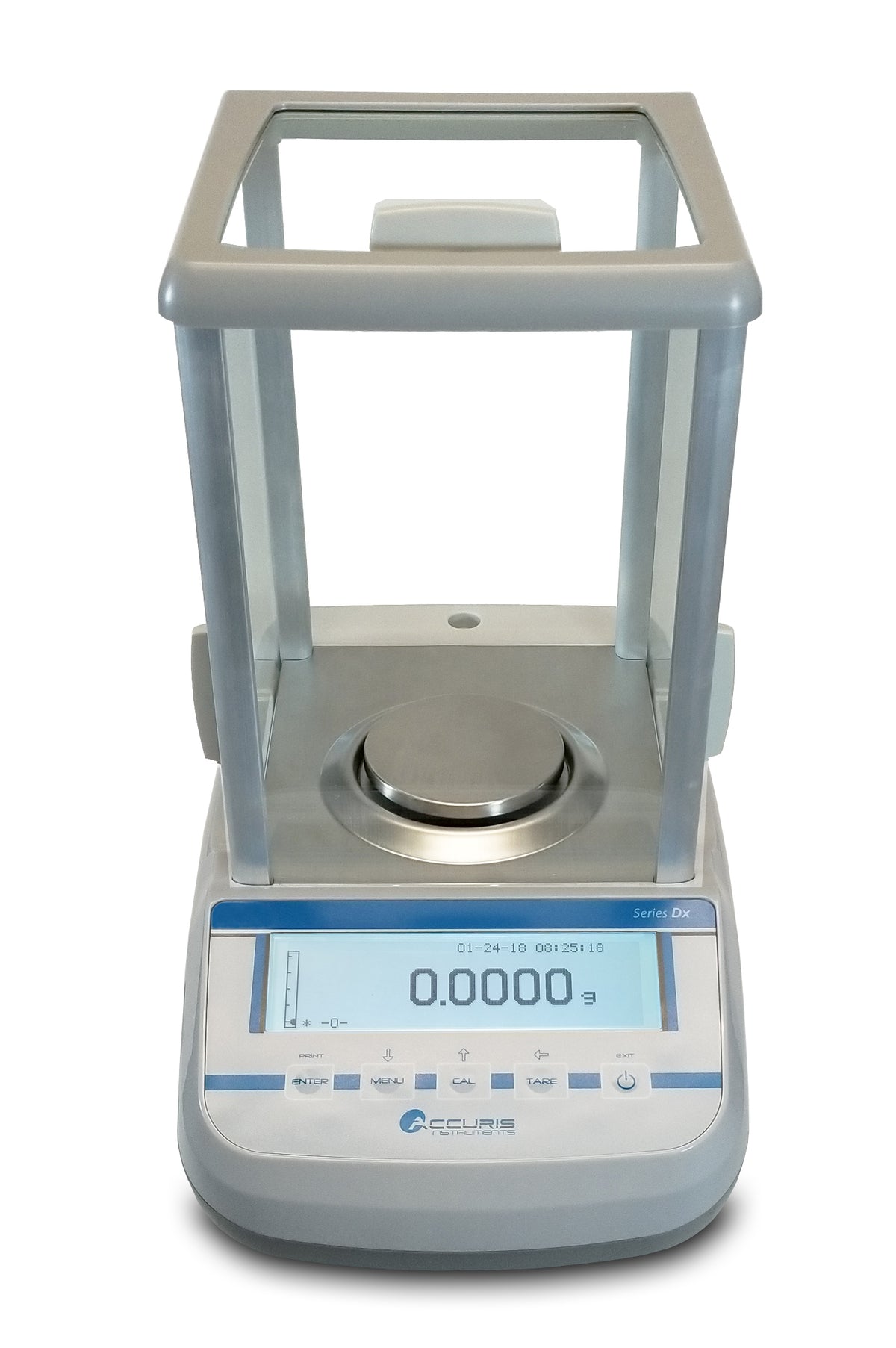

With a 220 g ceiling and 0.1 mg readability, the W3101A-220 is the higher-capacity balance in the Accuris Dx line. Its EFR weigh cell holds linearity to ±0.2 mg and repeatability to ±0.1 mg. Calibration runs automatically from a built-in weight, either when the CAL key is pressed or at intervals the user sets, and external calibration remains available. Samples sit on an 80 mm pan behind a glass draft shield, and the instrument weighs 13 lb.
Key features
- 220 g maximum load read to 0.0001 g
- EFR weigh cell: ±0.2 mg linearity, ±0.1 mg repeatability
- Automatic internal calibration, keyed or timed; external calibration supported
- Glass draft shield over an 80 mm round weighing pan
- Dot-matrix graphical display with animal, counting and percent modes
- Adjustable front feet and leveling bubble; 13 lb
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3101A-220 |
| Capacity | 220 g |
| Readability | 0.0001 g (0.1 mg) |
| Linearity | ±0.2 mg |
| Repeatability | ±0.1 mg |
| Pan Size | 80 mm round |
| Draft Shield | Glass |
| Calibration | Internal (Quick-Cal) and external |
| Weighing Units | g, mg, carats, oz, lb, dwt, t oz, gn, % |
| Display | Backlit dot-matrix graphical LCD |
| Weigh Cell | Electromagnetic Force Restoration (EFR) |
| Weight | 13 lb (6 kg) |
| Warranty | 2 Years |
