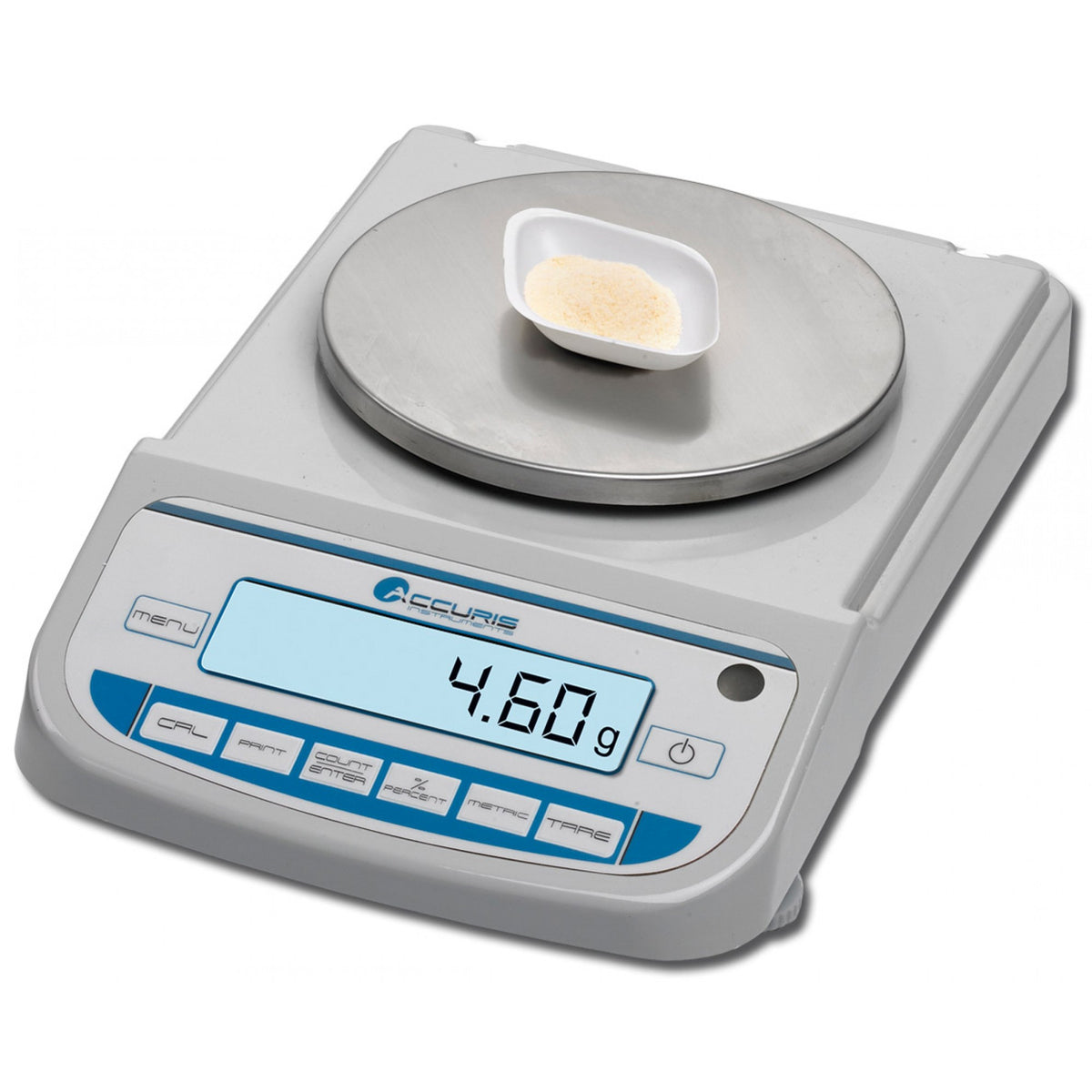

The W3200-5K tops the Accuris precision balance range at 5,000 g, with 0.01 g readability. Repeatability is ±0.01 g and linearity ±0.02 g. The balance uses an open top-loading layout with a larger 16.0 cm round pan. Gold-plated ceramic capacitance sensors drive a backlit LCD, with modes for counting, percent deviation and check weighing. Front leveling feet and a panel-mounted bubble simplify setup, calibration is external, and RS232 handles data transfer.
Key features
- 5,000 g capacity read to 0.01 g
- ±0.02 g linearity and ±0.01 g repeatability
- Top-loading design with 6.3 in round pan
- Front leveling feet and leveling bubble in the control panel
- Units g, oz, ct and %; counting and check-weighing modes
- External calibration; RS232 data port
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3200-5K / W3200-5K-E |
| Capacity | 5,000 g |
| Readability | 0.01 g |
| Linearity | ±0.02 g |
| Repeatability | ±0.01 g |
| Pan Diameter | 6.3 in (16.0 cm) |
| Draft Shield | None |
| Calibration | External |
| Weighing Units | g, oz, ct, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 8 × 13.75 × 3.1 in (20.5 × 35 × 8 cm) |
| Electrical | 115 V, US plug (W3200-5K); 230 V, European plug (W3200-5K-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3200-5K | 115V, US plug |
| W3200-5K-E | 230V, European plug |
Questions about the Precision Balance W3200-5K
What are the capacity and readability of the Precision Balance W3200-5K?
The Precision Balance W3200-5K weighs up to 5,000 g with 0.01 g readability; calibration is external, and repeatability is ±0.01 g.
Is the Precision Balance W3200-5K available with a European plug?
Yes. W3200-5K-E is the European-plug version of W3200-5K: W3200-5K is 115V with a US plug and W3200-5K-E is 230V with a European plug.
