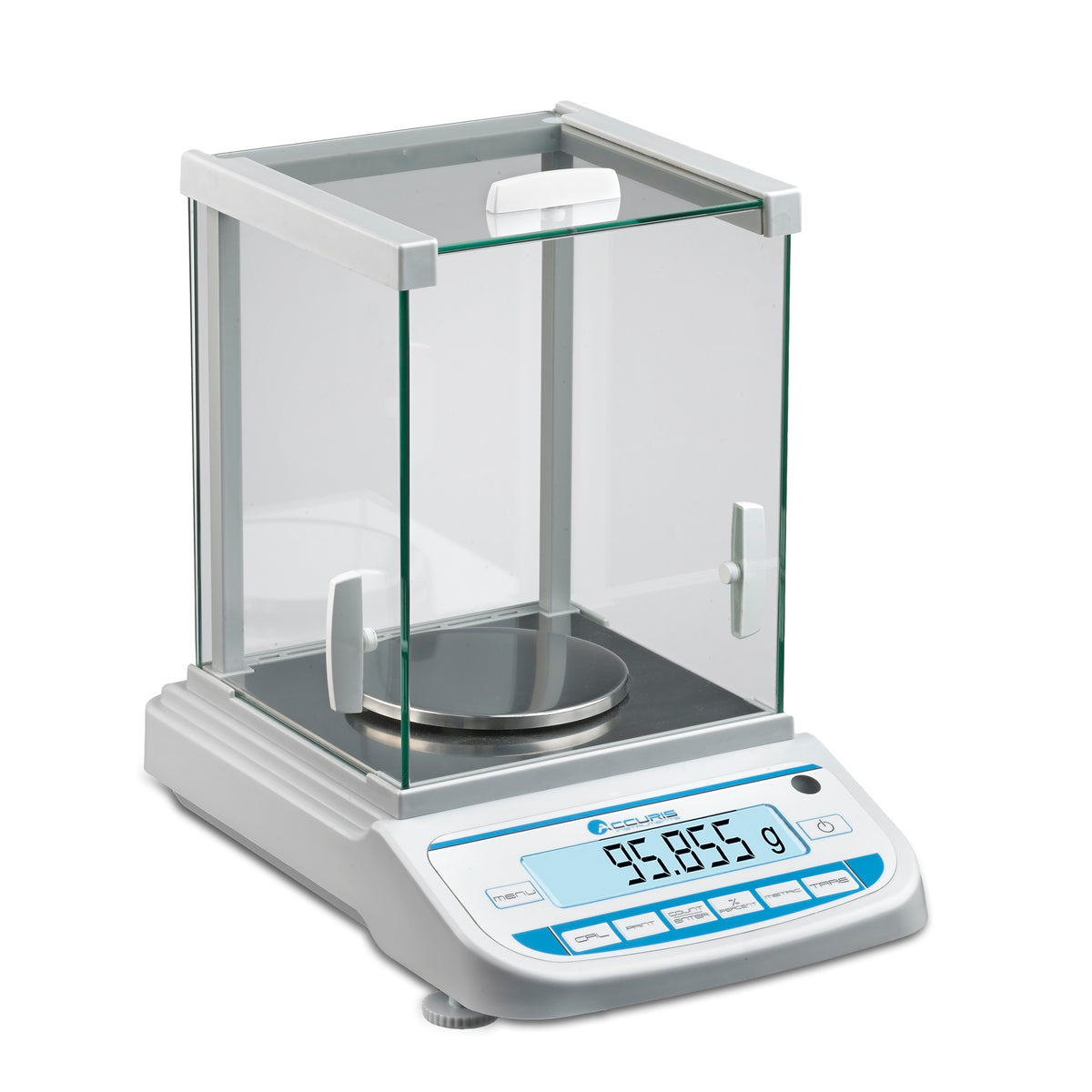

The W3200-500 offers the highest capacity among the 1 mg Accuris precision balances, taking loads to 500 g at 0.001 g readability. Linearity is held to ±0.002 g and repeatability to ±0.001 g. A glass draft shield with 3 sliding doors protects the 4.5 in round pan from air currents. Readings appear on a bright backlit LCD, and modes include standard weighing, counting, percent deviation and check weighing. Calibration uses an external weight, and an RS232 port handles data output. The unit measures 8 × 13.75 × 12.25 in.
Key features
- 500 g x 0.001 g weighing range
- Repeatability ±0.001 g; linearity ±0.002 g
- Glass draft shield with 3 sliding doors over a 4.5 in pan
- Counting, percent deviation and check-weighing programs
- External in-lab calibration
- RS232 data port
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3200-500 / W3200-500-E |
| Capacity | 500 g |
| Readability | 0.001 g |
| Linearity | ±0.002 g |
| Repeatability | ±0.001 g |
| Pan Diameter | 4.5 in (11.5 cm) |
| Draft Shield | Glass, 3 sliding doors |
| Calibration | External |
| Weighing Units | g, oz, ct, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 8 × 13.75 × 12.25 in (20.5 × 35 × 31 cm) |
| Electrical | 115 V, US plug (W3200-500); 230 V, European plug (W3200-500-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3200-500 | 115V, US plug |
| W3200-500-E | 230V, European plug |
