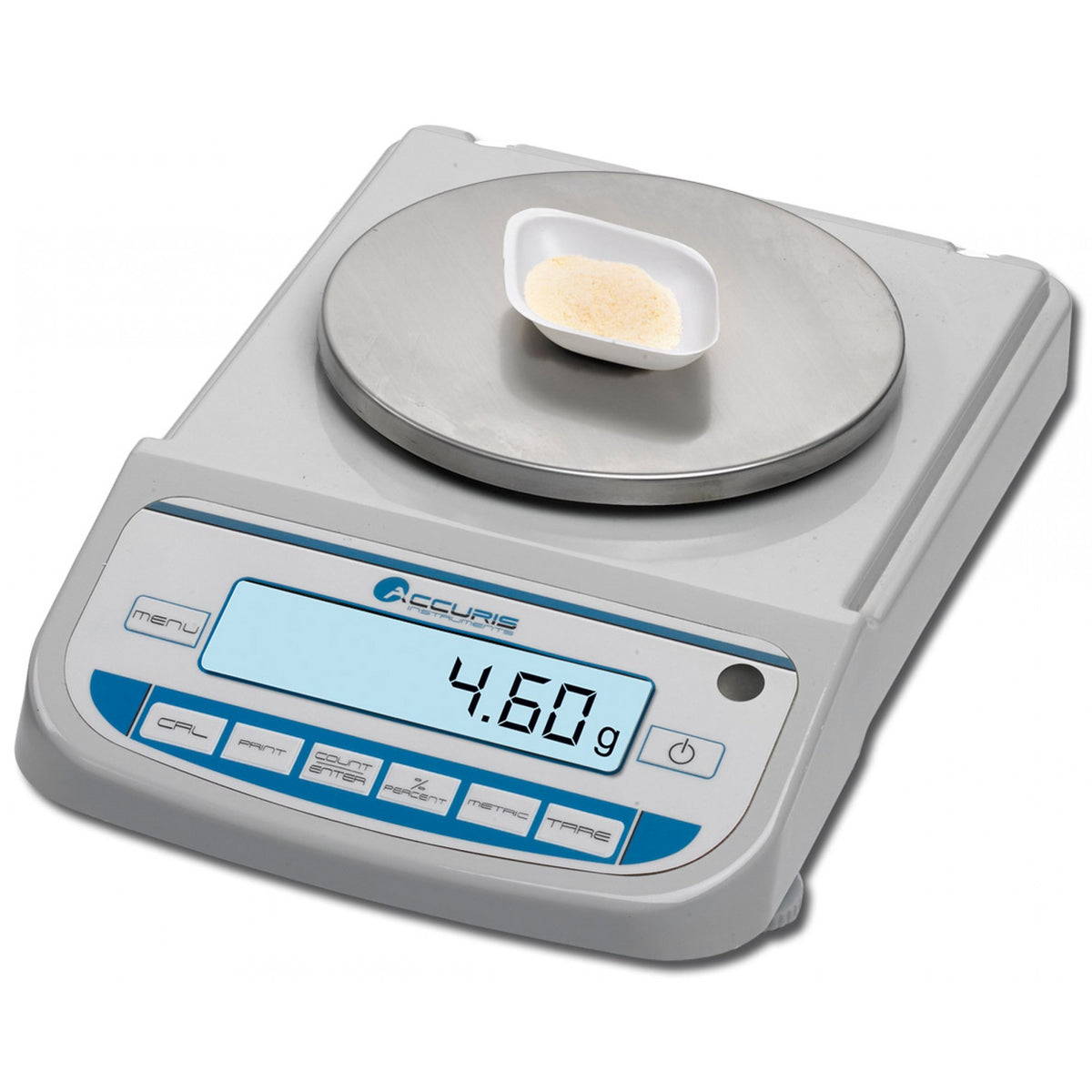

For loads up to 3,200 g, the W3200-3200 reads in 0.01 g increments with ±0.01 g repeatability and ±0.02 g linearity. It is a top-loader with a 16.0 cm pan and no draft shield, in a low-profile 20.5 × 35 × 8 cm housing. A backlit LCD shows readings, and software supports piece counting, percent deviation and check weighing. Calibration is external, using a weight and a few keystrokes, and RS232 connects to a printer or computer.
Key features
- 3,200 g x 0.01 g weighing range
- ±0.01 g repeatability, ±0.02 g linearity
- 16.0 cm (6.3 in) round pan, top-loading, no draft shield
- Gold-plated ceramic capacitance sensing
- Piece counting, percent and check-weighing modes
- RS232 port; external calibration
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3200-3200 / W3200-3200-E |
| Capacity | 3,200 g |
| Readability | 0.01 g |
| Linearity | ±0.02 g |
| Repeatability | ±0.01 g |
| Pan Diameter | 6.3 in (16.0 cm) |
| Draft Shield | None |
| Calibration | External |
| Weighing Units | g, oz, ct, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 8 × 13.75 × 3.1 in (20.5 × 35 × 8 cm) |
| Electrical | 115 V, US plug (W3200-3200); 230 V, European plug (W3200-3200-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3200-3200 | 115V, US plug |
| W3200-3200-E | 230V, European plug |
