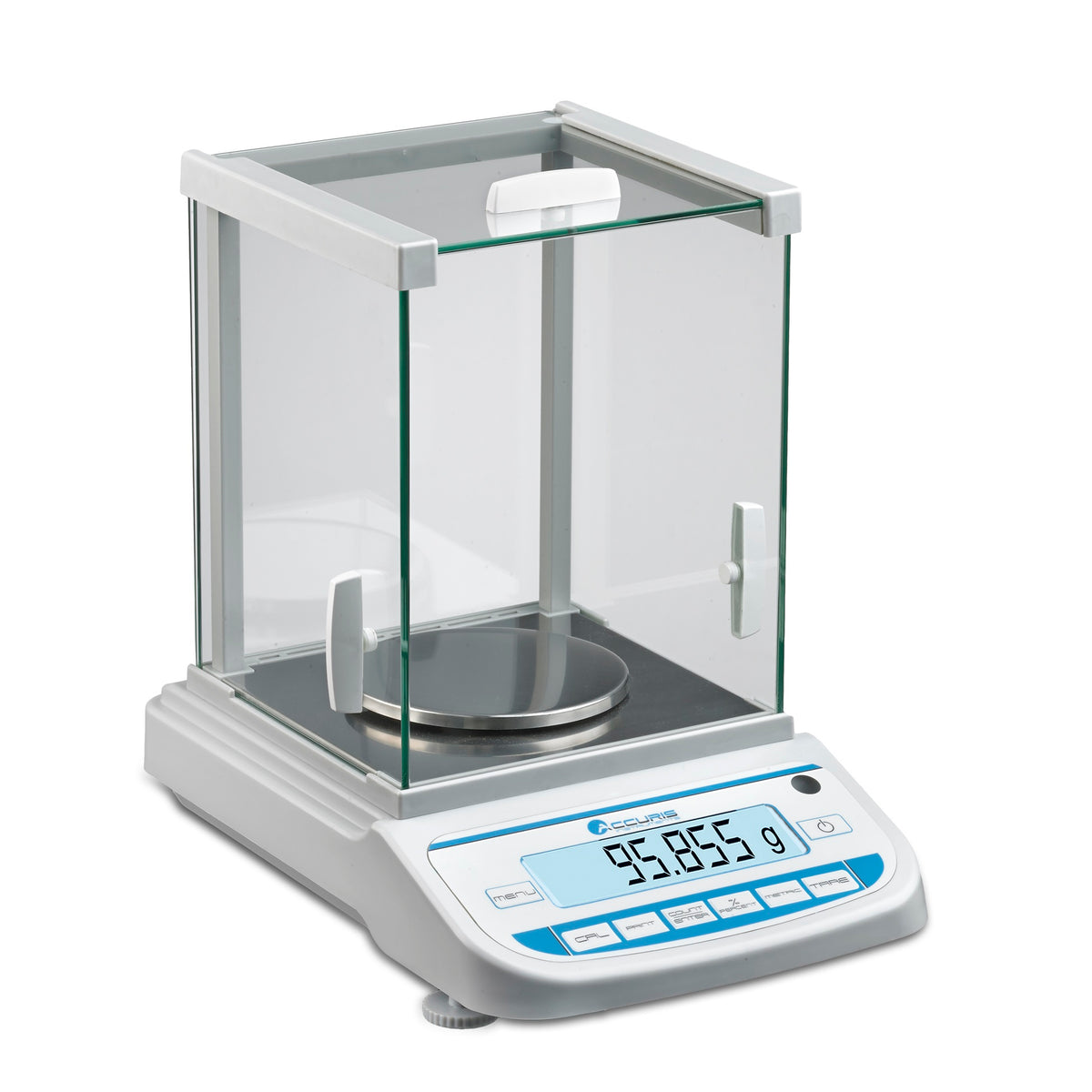

Rated for 320 g at 1 mg readability, the W3200-320 sits mid-range in the Accuris precision balance line. Repeatability is ±0.001 g and linearity ±0.002 g. Its capacitance sensor uses gold-plated ceramic elements for quick, stable readings, shown on a large backlit LCD. The 11.5 cm pan is housed in a glass draft shield with 3 sliding doors. Software covers piece counting, percent deviation and check weighing, and RS232 output links to a printer or PC. Leveling feet sit at the front alongside a bubble level in the control panel.
Key features
- 320 g capacity at 0.001 g readability
- ±0.001 g repeatability, ±0.002 g linearity
- 4.5 in pan enclosed by a 3-door glass draft shield
- Large backlit LCD with built-in leveling bubble
- Calibrates in the lab with an external weight
- RS232 port; 20.5 × 35 × 31 cm
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3200-320 / W3200-320-E |
| Capacity | 320 g |
| Readability | 0.001 g |
| Linearity | ±0.002 g |
| Repeatability | ±0.001 g |
| Pan Diameter | 4.5 in (11.5 cm) |
| Draft Shield | Glass, 3 sliding doors |
| Calibration | External |
| Weighing Units | g, oz, ct, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 8 × 13.75 × 12.25 in (20.5 × 35 × 31 cm) |
| Electrical | 115 V, US plug (W3200-320); 230 V, European plug (W3200-320-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3200-320 | 115V, US plug |
| W3200-320-E | 230V, European plug |
