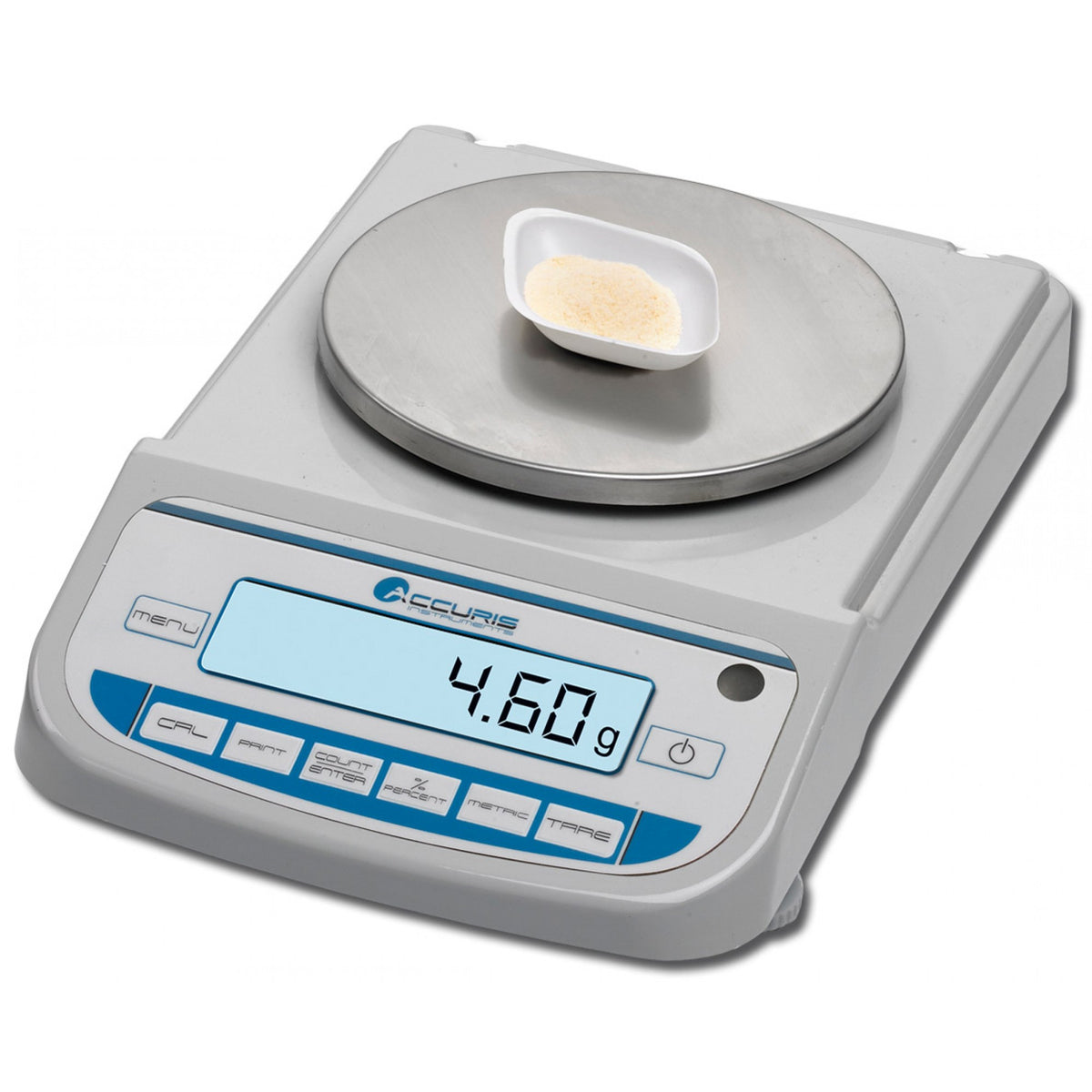

The W3200-1200 is a top-loading Accuris precision balance for loads up to 1,200 g, read to 0.01 g. Linearity is ±0.02 g and repeatability ±0.01 g. It uses a 16.0 cm (6.3 in) round pan with no draft shield and a low 8 × 13.75 × 3.1 in body. Gold-plated ceramic capacitance sensors give fast taring and stable readings on a backlit LCD. Weighing modes include counting, percent deviation and check weighing; calibration is external, and RS232 sends results to a computer or printer.
Key features
- 1,200 g capacity, 0.01 g readability
- Linearity ±0.02 g; repeatability ±0.01 g
- Open top-loading design with a 6.3 in round pan
- Low profile: 20.5 × 35 × 8 cm
- Counting, percent and check-weighing modes; g, oz, ct
- Calibrated externally; RS232 interface
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3200-1200 / W3200-1200-E |
| Capacity | 1,200 g |
| Readability | 0.01 g |
| Linearity | ±0.02 g |
| Repeatability | ±0.01 g |
| Pan Diameter | 6.3 in (16.0 cm) |
| Draft Shield | None |
| Calibration | External |
| Weighing Units | g, oz, ct, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 8 × 13.75 × 3.1 in (20.5 × 35 × 8 cm) |
| Electrical | 115 V, US plug (W3200-1200); 230 V, European plug (W3200-1200-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3200-1200 | 115V, US plug |
| W3200-1200-E | 230V, European plug |
