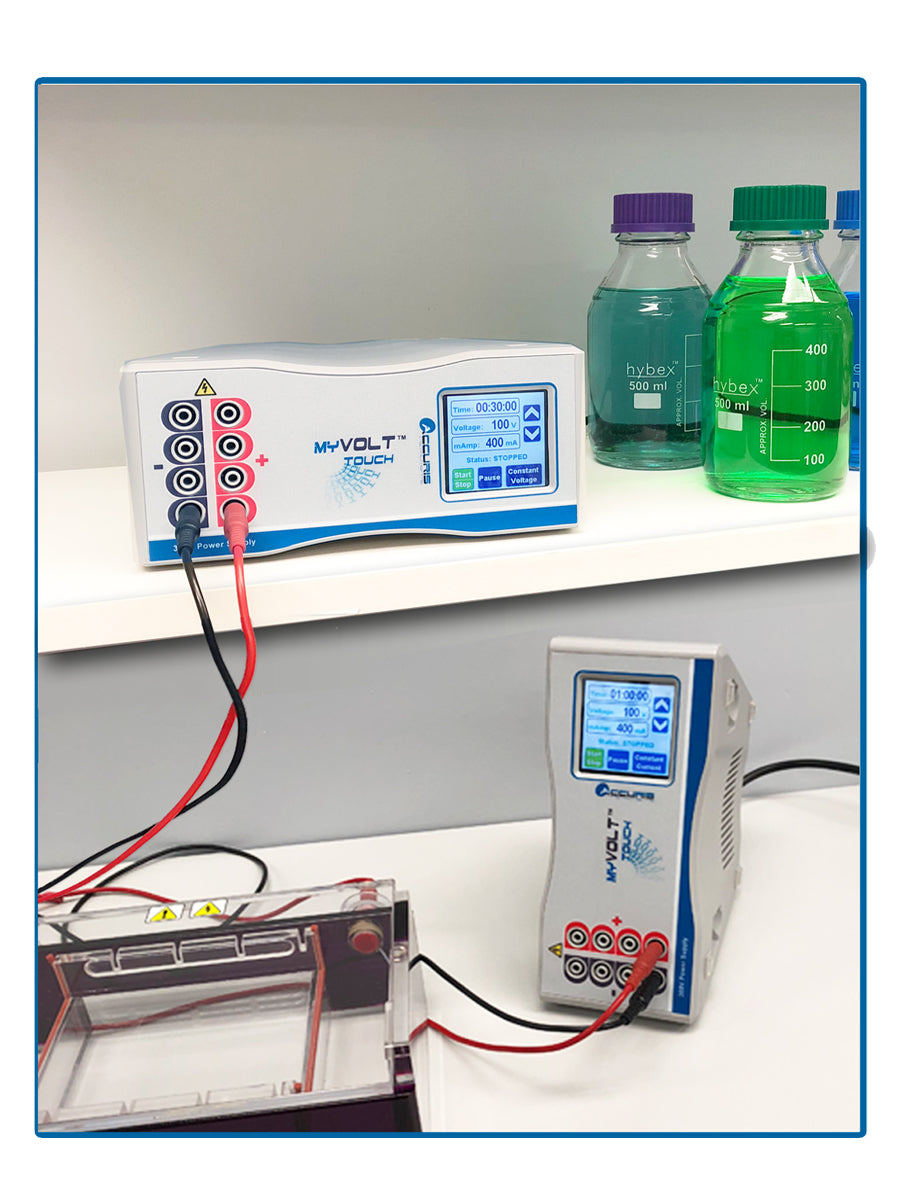

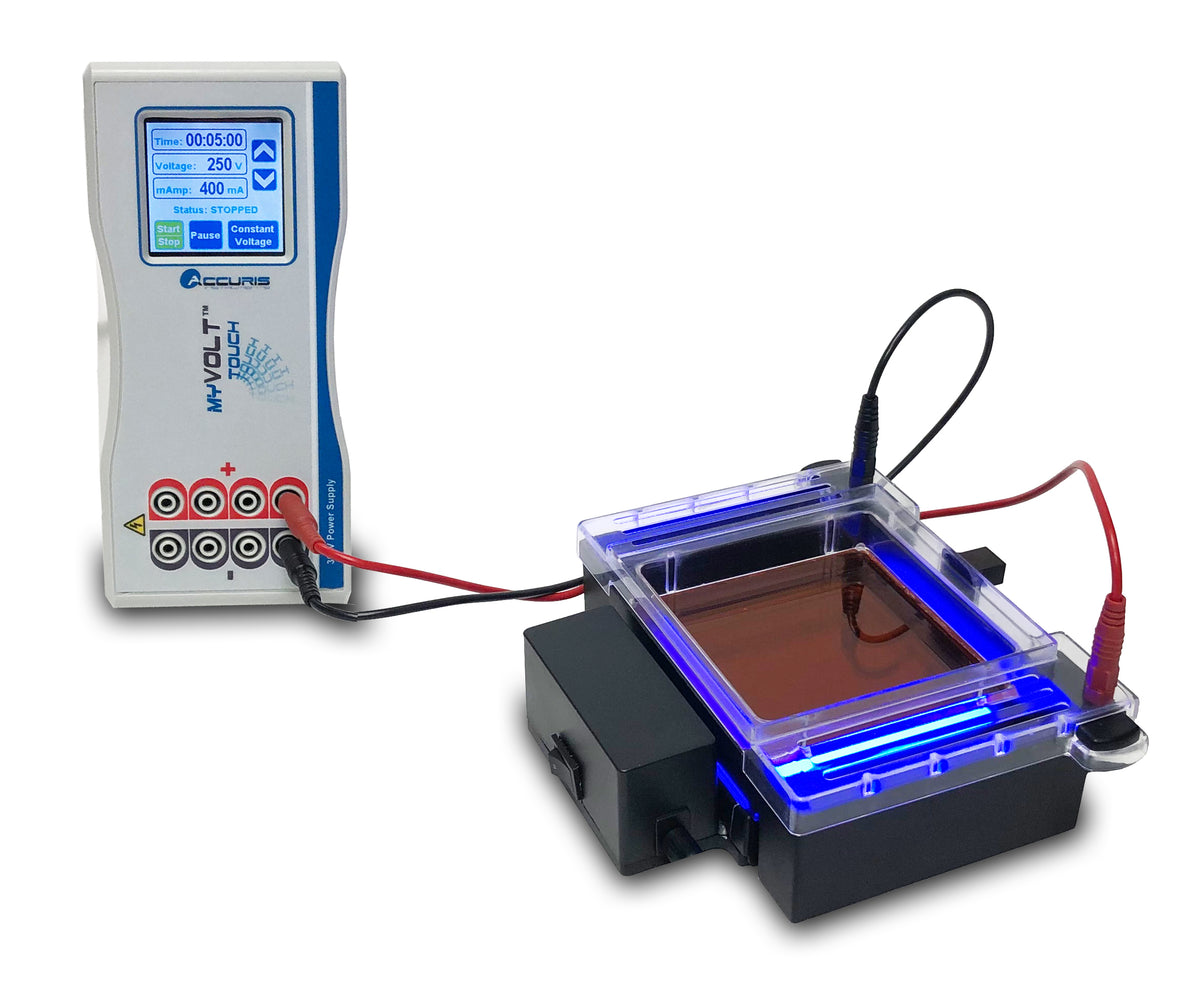

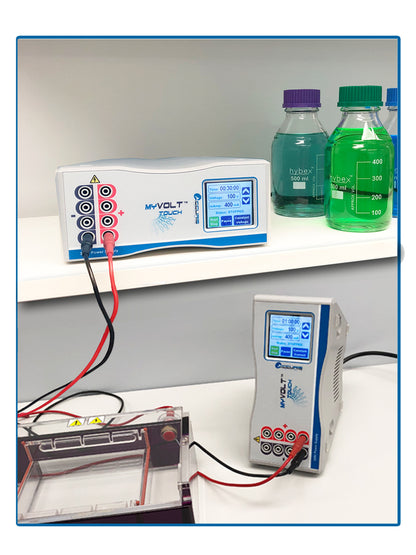

The myVolt Touch E2301 runs electrophoresis at constant voltage or constant current, set in 1V steps from 10–300V or 1 mA steps from 4–400 mA, with a 100W ceiling. Four pairs of output terminals serve several gel tanks, and the timer covers runs from 1 minute to 20 hours. The 2 × 2 in color touchscreen rotates automatically for either orientation, and the unit detects no-load, load-change and overload conditions.
Key features
- Constant voltage 10–300V in 1V increments
- Constant current 4–400 mA in 1 mA increments; 100W maximum
- Four pairs of output terminals
- Run timer from 1 min to 20 hrs
- No-load, load-change and overload detection
- Auto-rotating 2 × 2 in color touchscreen; 2.0 lb
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E2301 / E2301-E |
| Output Mode | Constant voltage or constant current |
| Voltage Range | 10–300 V (1 V increments) |
| Current Range | 4–400 mA (1 mA increments) |
| Max Power | 100 W |
| Output Terminals | 4 pairs |
| Timer | 1 min – 20 h |
| Safety | No-load, load-change and overload detection |
| Display | 2 × 2 in color touch screen, auto-rotating |
| Weight | 2.0 lb (0.9 kg) |
| Electrical | 100–230 V, 50–60 Hz |
Ordering information
| Catalog number | Power |
|---|---|
| E2301 | 115V, US plug |
| E2301-E | 230V, European plug |
