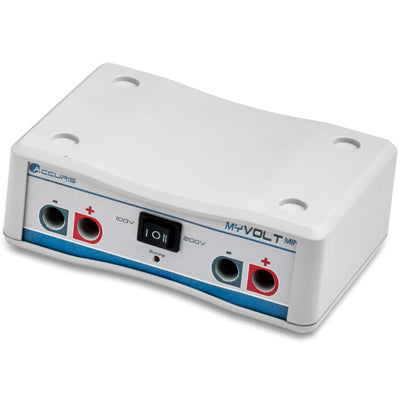

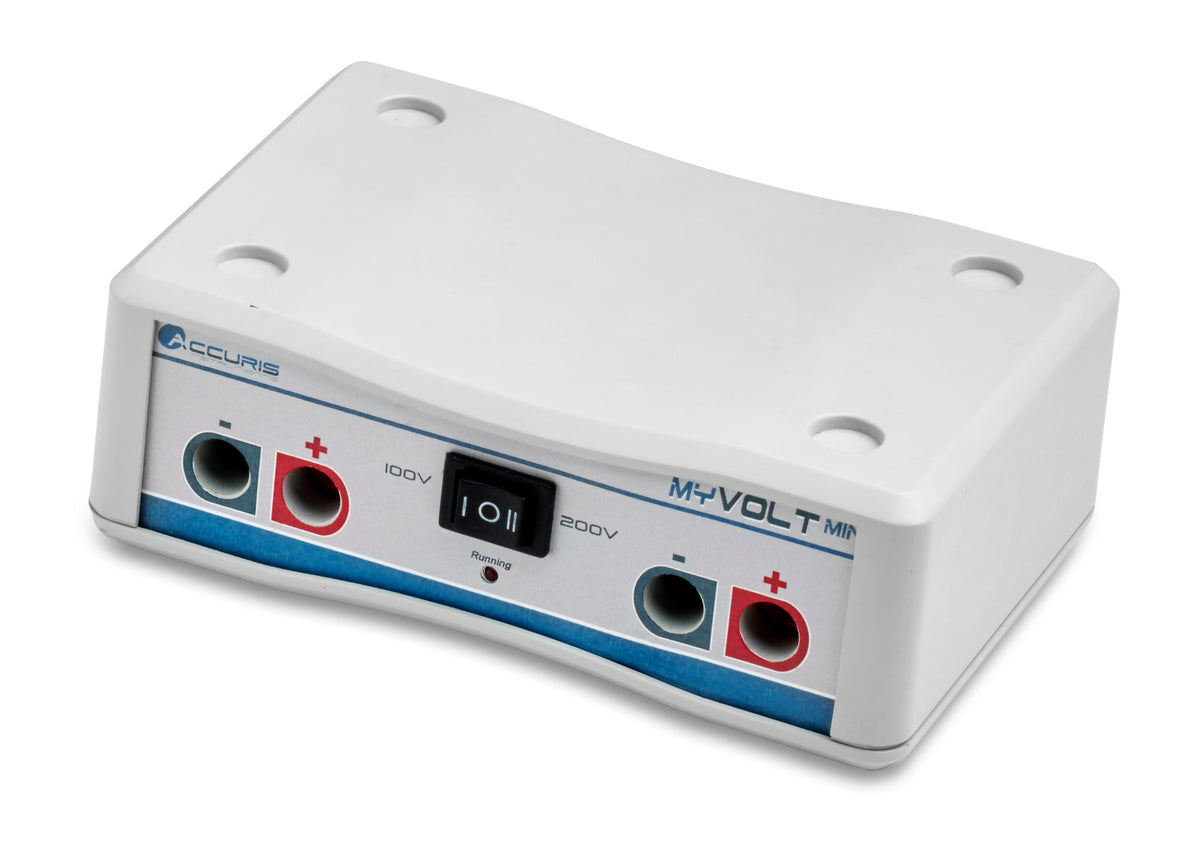

The myVolt Mini E2100 is a compact power supply for routine constant-voltage electrophoresis. Output is set to either 100V or 200V, current reaches 200 mA and total output is limited to 40W. Two pairs of output terminals run up to two gel tanks at once, and units can be stacked securely when more rigs are in use. It measures 6.25 × 4.5 × 2.3 in, weighs 0.9 lb and accepts 100–240V input.
Key features
- Switch between constant 100V and constant 200V output
- Current output up to 200 mA; maximum power 40W
- Two pairs of output terminals connect two gel rigs
- Stackable housing for running additional rigs
- Footprint 16 × 11.5 cm; weight 0.4 kg
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E2100 / E2100-E |
| Output Voltage | 100 V or 200 V, constant |
| Max Current | 200 mA |
| Max Power | 40 W |
| Output Terminals | 2 pairs |
| Dimensions | 6.25 × 4.5 × 2.3 in (16 × 11.5 × 5.7 cm) |
| Weight | 0.9 lb (0.4 kg) |
| Electrical | 100–240 V, 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E2100 | 100–240V, US plug |
| E2100-E | 100–240V, European plug |
