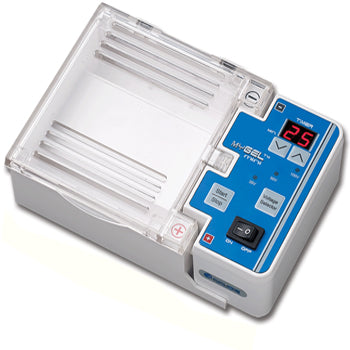

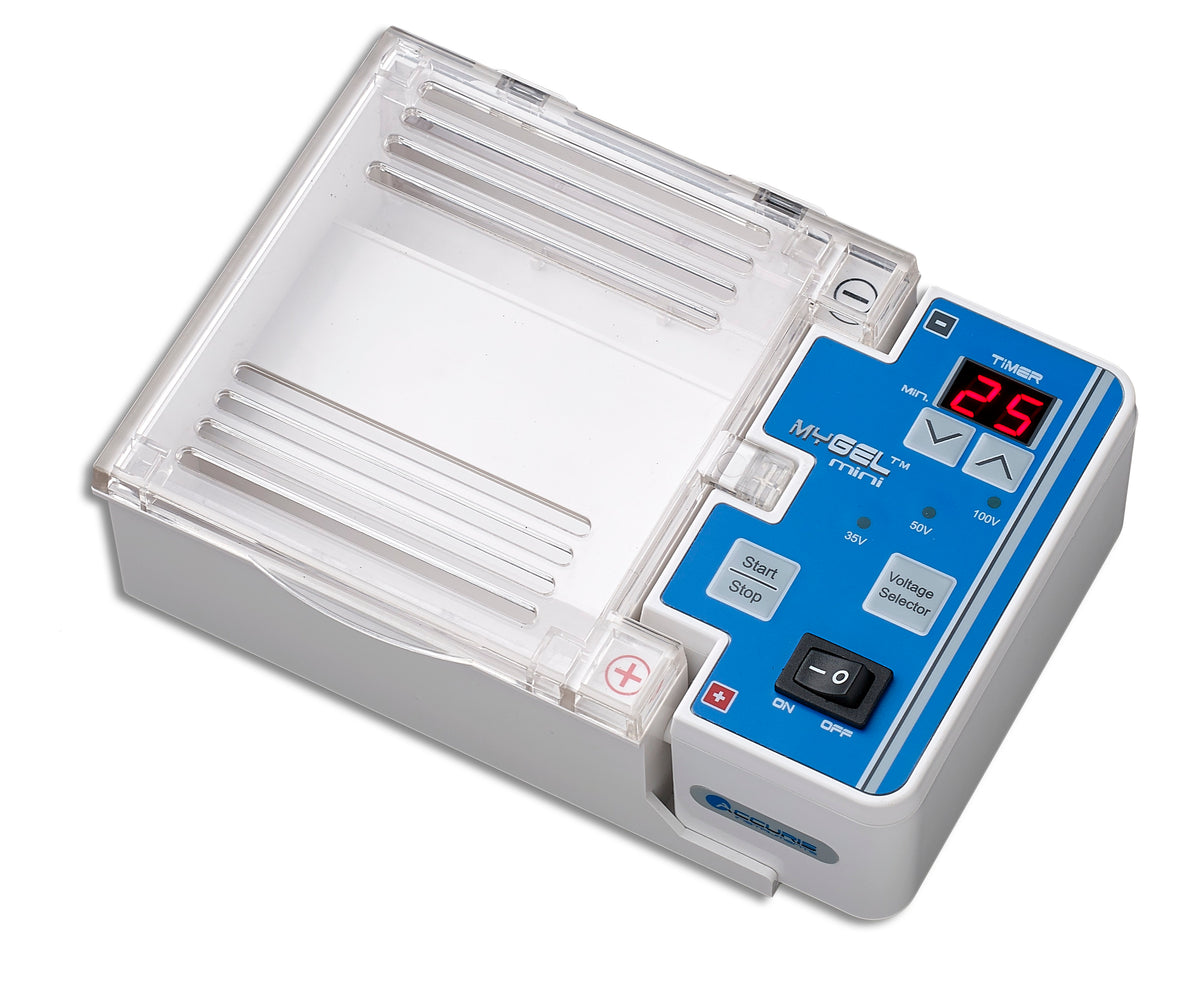

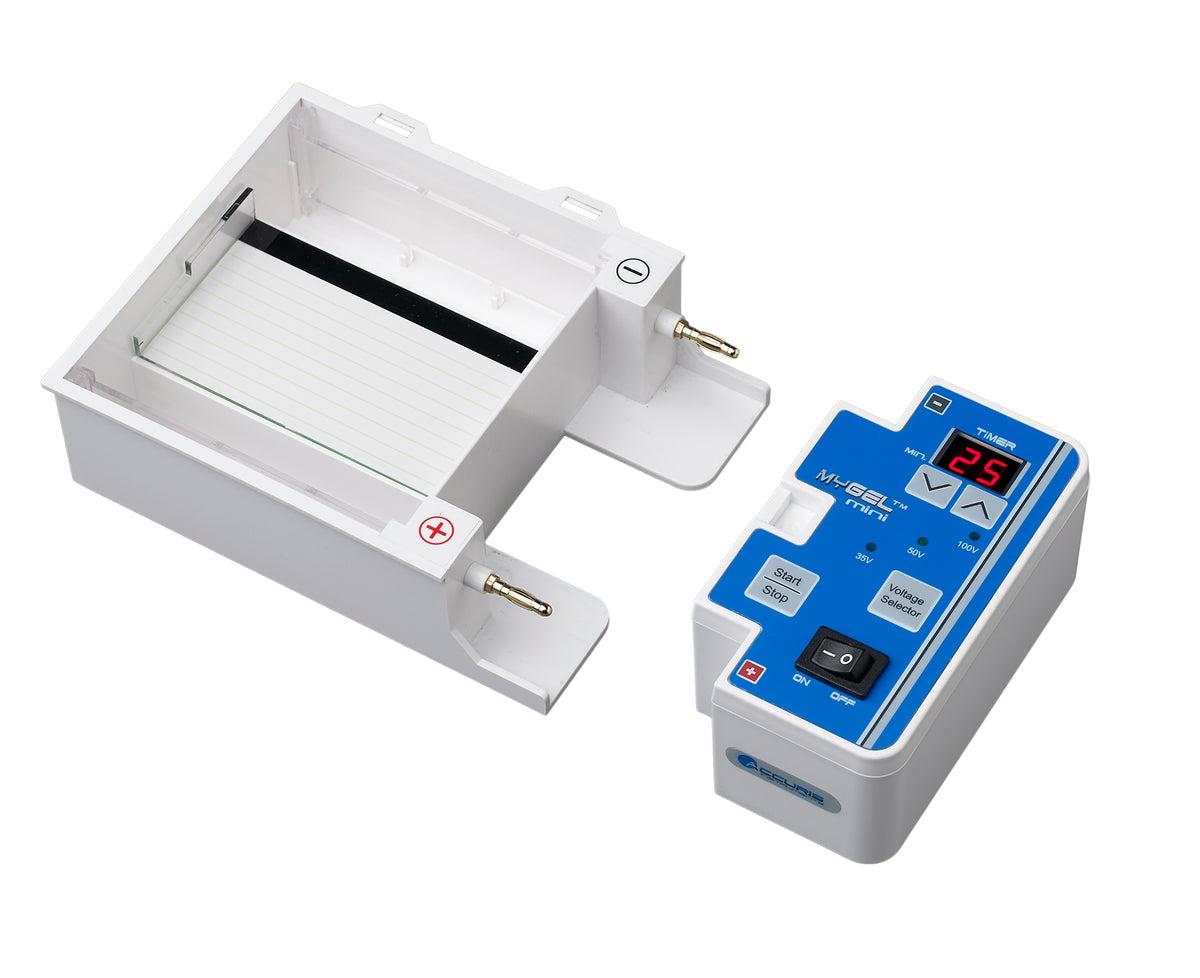

The myGel Mini combines a gel tank, power supply and two casting sets in one compact system. The tank docks directly onto the power supply, which offers preset outputs of 35V, 50V or 100V and a timer from 0 to 99 minutes or continuous. It runs one 10.5 × 6 cm gel or two 5 × 6 cm gels in up to 230 mL of buffer. Casting needs no tape or clamps, the trays carry UV- and blue-light fluorescent tracking lines, and a vented safety lid cuts current when lifted. The 230V version includes a transformer.
Key features
- Preset voltages of 35V, 50V and 100V
- Timer 0–99 min or continuous run
- One 10.5 × 6 cm gel or two 5 × 6 cm gels
- Trays, casting stands and double-sided combs included
- Tape-free casting; trays fluoresce under UV and blue light
- Vented lid with interlock; 230 mL maximum buffer
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E1101 / E1101-E |
| Output Voltage | 35, 50 or 100 V |
| Timer | 0–99 min or continuous |
| Safety | Lid interlock |
| Max Buffer Volume | 230 mL |
| Gel Capacity | One 10.5 × 6 cm gel or two 5 × 6 cm gels |
| Weight | 1 lb (0.45 kg) |
| Electrical | 115 V, US plug (E1101); 230 V with transformer, European plug (E1101-E); 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E1101 | 115V, US plug |
| E1101-E | 230V, European plug |
Questions about the myGel Mini Electrophoresis System E1101
What are the key specifications of the myGel Mini Electrophoresis System E1101?
The myGel Mini Electrophoresis System E1101 outputs 35, 50 or 100 V and holds one 10.5 × 6 cm gel or two 5 × 6 cm gels.
Is the myGel Mini Electrophoresis System E1101 available with a European plug?
Yes. E1101-E is the European-plug version of E1101: E1101 is 115V with a US plug and E1101-E is 230V with a European plug.
