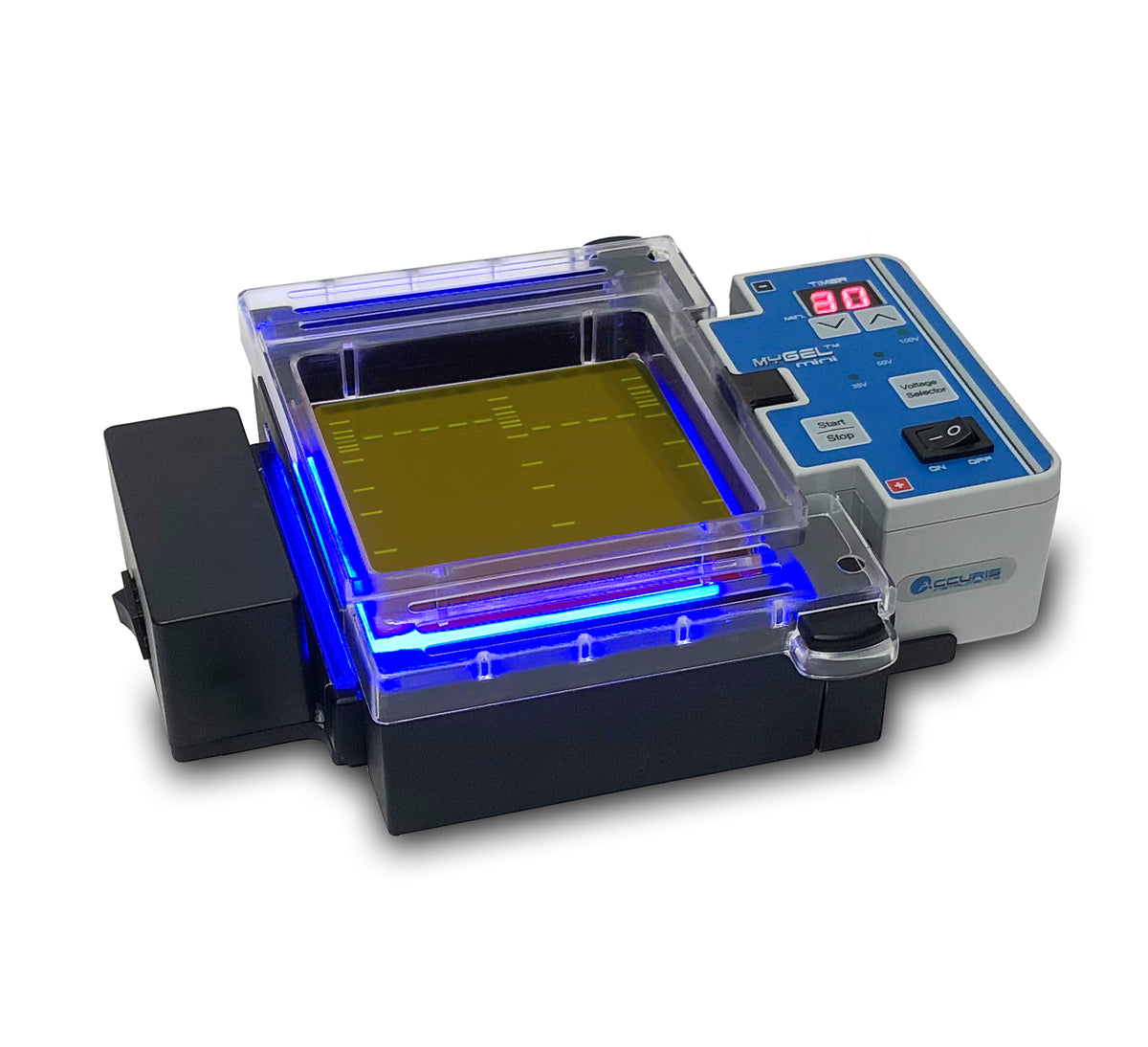

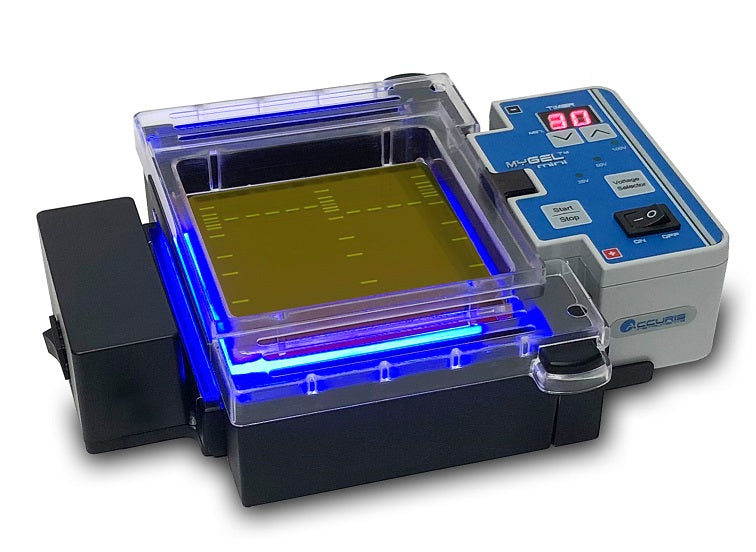

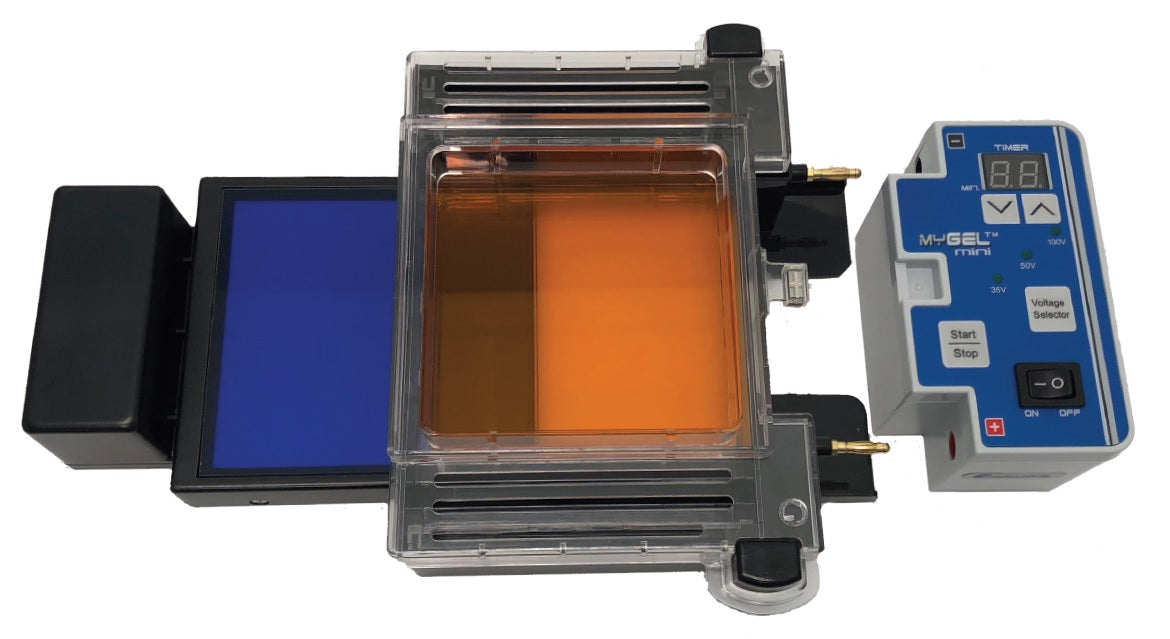

The myGel InstaView E1201 is a mini electrophoresis system with an integrated power supply and a slide-in blue LED transilluminator, so bands can be watched during the run without removing the gel. The tank takes one 10.5 × 10 cm or one 10.5 × 6 cm gel, and output is selectable at 35V, 50V or 100V with run times up to 99 minutes. Blue light at 465 nm excites green fluorescent stains without damaging DNA. Trays, combs, a leak-proof casting stand and a gel imaging enclosure for smartphone photos are included.
Key features
- Integrated power supply plugs into the tank with no external leads
- 35V, 50V or 100V output with a run timer up to 99 minutes
- Slide-in 465 nm blue LED illuminator for SmartGlow, SYBR Green and Gel Green
- Orange filter built into the lid for viewing bands without glasses
- Magnetic lid interlock stops current when the lid is not in place
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | E1201 / E1201-E |
| Gel Capacity | One 10.5 × 10 cm or 10.5 × 6 cm gel |
| Output Voltage | 35, 50 or 100 V |
| Timer | Up to 99 min |
| Safety | Magnetic lid interlock |
| Illumination | Blue LED, 465 nm |
| Viewing Filter | Orange, built into lid |
| Imaging | Gel imaging enclosure for smartphone camera |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| E1201 | 115V, US plug |
| E1201-E | 230V, European plug |
Questions about the myGel InstaView Complete Electrophoresis System E1201
What are the key specifications of the myGel InstaView Complete Electrophoresis System E1201?
The myGel InstaView Complete Electrophoresis System E1201 outputs 35, 50 or 100 V and holds one 10.5 × 10 cm or 10.5 × 6 cm gel.
Is the myGel InstaView Complete Electrophoresis System E1201 available with a European plug?
Yes. E1201-E is the European-plug version of E1201: E1201 is 115V with a US plug and E1201-E is 230V with a European plug.
