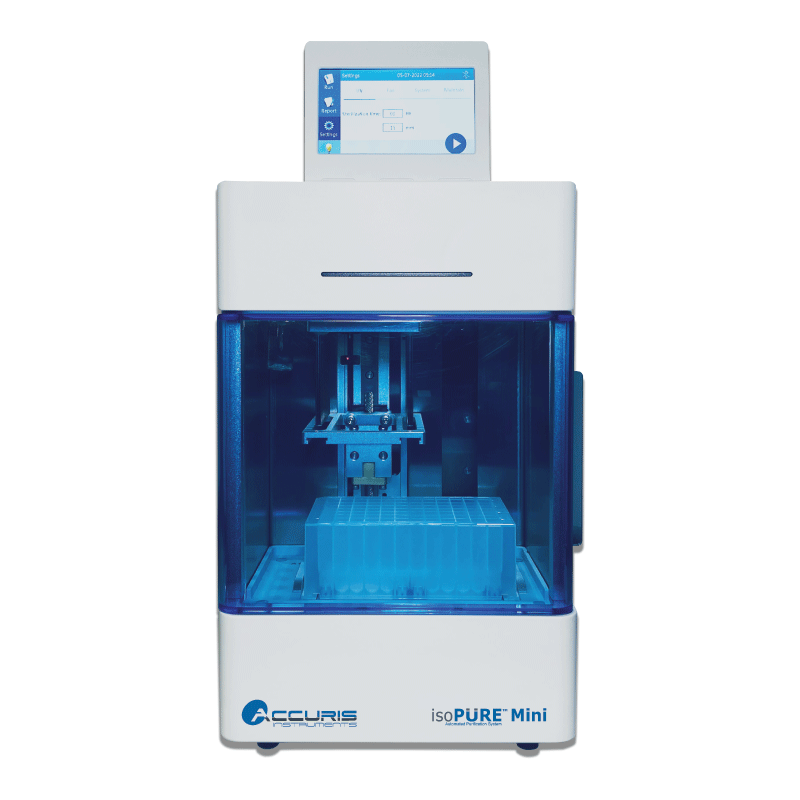

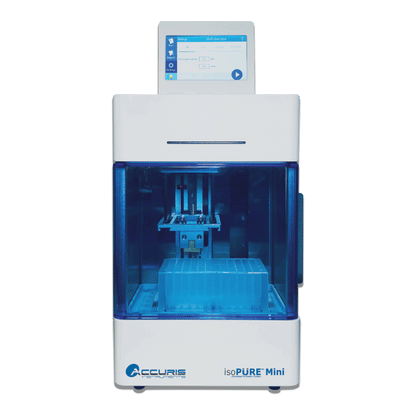

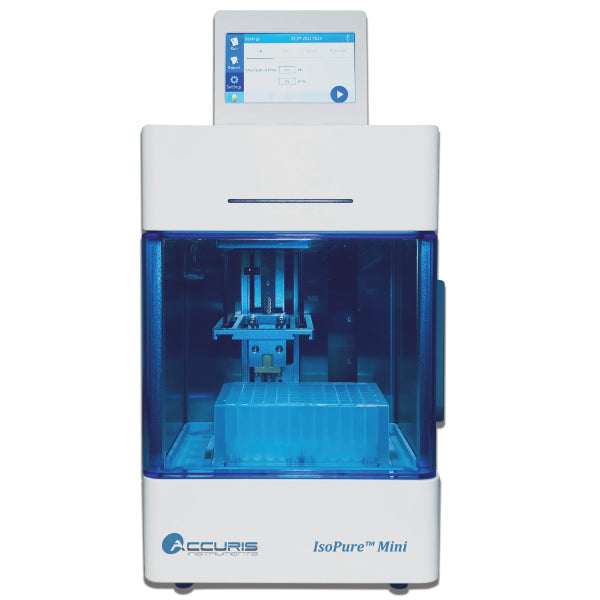

The IsoPure Mini AP1016 is a compact magnetic bead purification system that processes up to 16 samples of 50 to 1000 µL on an 8 × 10 in footprint. Protocols are written in the IsoPure Android app or PC software, both supplied on a USB flash drive, then sent to the instrument by Bluetooth, flash drive or the included handheld QR code scanner. Up to 100 protocols are stored internally, mixing speed is variable over 10 levels, and bead recovery exceeds 95%. A 3W UV lamp handles contamination control.
Key features
- Up to 16 samples per run at 50–1000 µL
- Handheld QR code scanner included for loading protocols

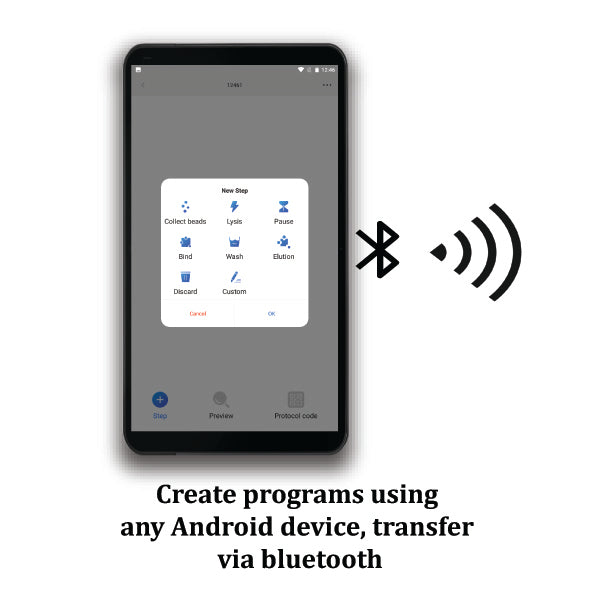

- Program via Android app over Bluetooth or PC software (device not included)
- Stores 100 protocols; 10 mixing speed levels
- Magnetic bead recovery above 95%; 3W, 253.7 nm UV lamp
- 7.9 × 10.2 × 11.8 in, 7.0 kg (15.4 lb)
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | AP1016 / AP1016-E |
| Capacity | 16 samples |
| Sample Volume | 50–1,000 µL |
| Mixing Speed | Variable, 10 levels |
| Programming Control | Android device (Bluetooth) or PC; device not included |
| Program Memory | 100 protocols (internal memory) |

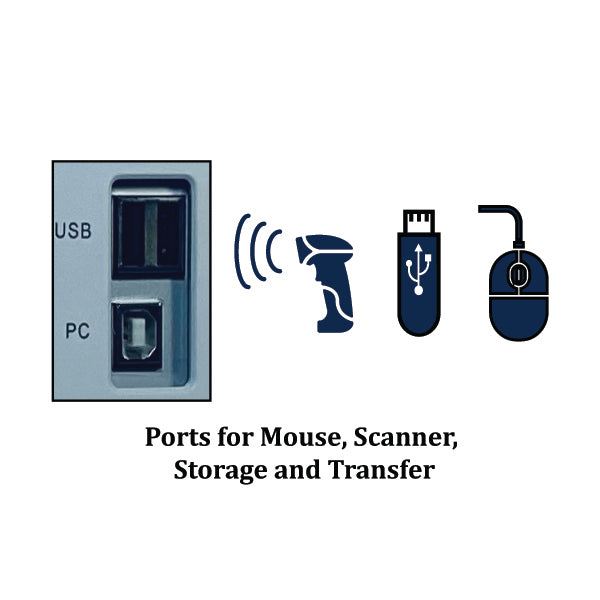

| Communication Ports | USB (mouse, flash drive storage/transfer) |
| Scanner | QR code scanner included |
| Magnetic Bead Recovery Rate | >95% |
| Contamination Control | UV lamp (3 W, 253.7 nm UVC) |
| Dimensions | 7.9 × 10.2 × 11.8 in (20 × 26 × 30 cm) |
| Weight | 15.4 lb (7.0 kg) |
| Electrical | Universal 120–240 V AC |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| AP1016 | 115V, US plug |
| AP1016-E | 230V, European plug |
