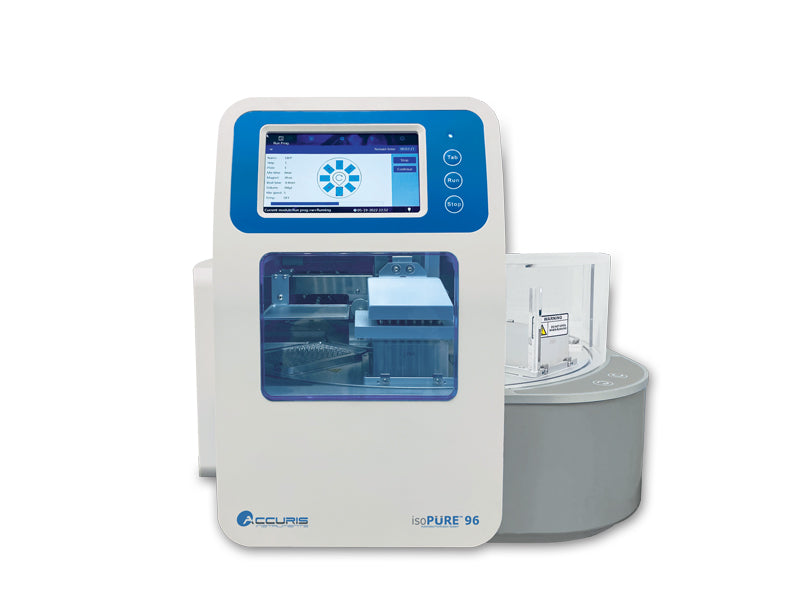

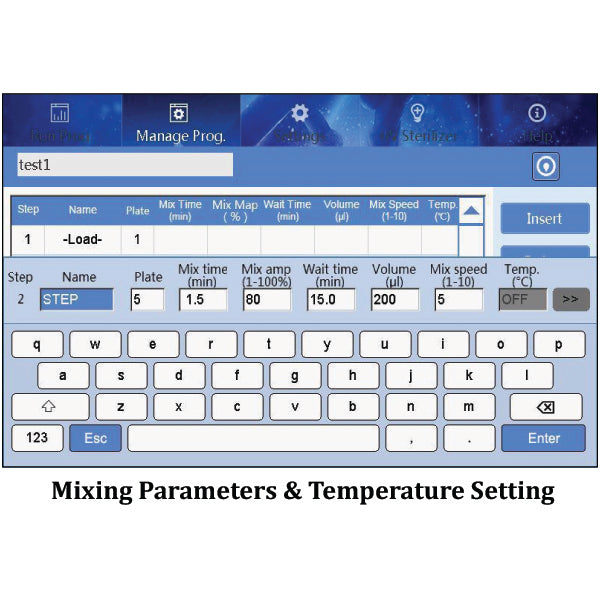

The IsoPure 96 AP1096 automates magnetic bead extraction for up to 96 samples per run in deep-well plates, at sample volumes from 50 to 1000 µL. An 8-position carousel carries two heating blocks that hold lysis and elution steps anywhere from ambient +5 °C to 120 °C, and mixing speed is adjustable over 10 levels. Protocols are built on a 7.0-inch color touch screen or with the included mouse, with up to 100 stored on board. It works with popular magnetic bead kits and recovers more than 95% of beads.
Key features
- Processes 96 samples per run, 50–1000 µL each
- 8 plate positions with 2 heating blocks, ambient +5 °C to 120 °C
- Magnetic bead recovery rate above 95%
- 100-program memory; USB, LAN and PC connections
- UV lamp (3W, 253.7 nm) for contamination control
- 21.6 × 24.4 × 18.9 in; 54 kg (119 lb)
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | AP1096 / AP1096-E |
| Capacity | 96 samples |
| Sample Volume | 50–1,000 µL |
| Plate Positions | 8 (carousel with 2 heating blocks) |
| Temperature Range (Lysis & Elution) | Ambient + 5 °C – 120 °C |
| Mixing Speed | Variable, 10 levels |
| Display | 7.0 in color touch screen |
| Programming Control | Touch screen/mouse or PC connection |
| Program Memory | 100 programs (internal memory) |
| Communication Ports | USB, LAN & PC |
| Magnetic Bead Recovery Rate | >95% |
| Contamination Control | UV lamp (3 W, 253.7 nm UVC) |
| Dimensions | 21.6 × 24.4 × 18.9 in (55 × 62 × 48 cm) |
| Weight | 119 lb (54 kg) |
| Electrical | Universal 120–240 V AC |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| AP1096 | 115V, US plug |
| AP1096-E | 230V, European plug |
