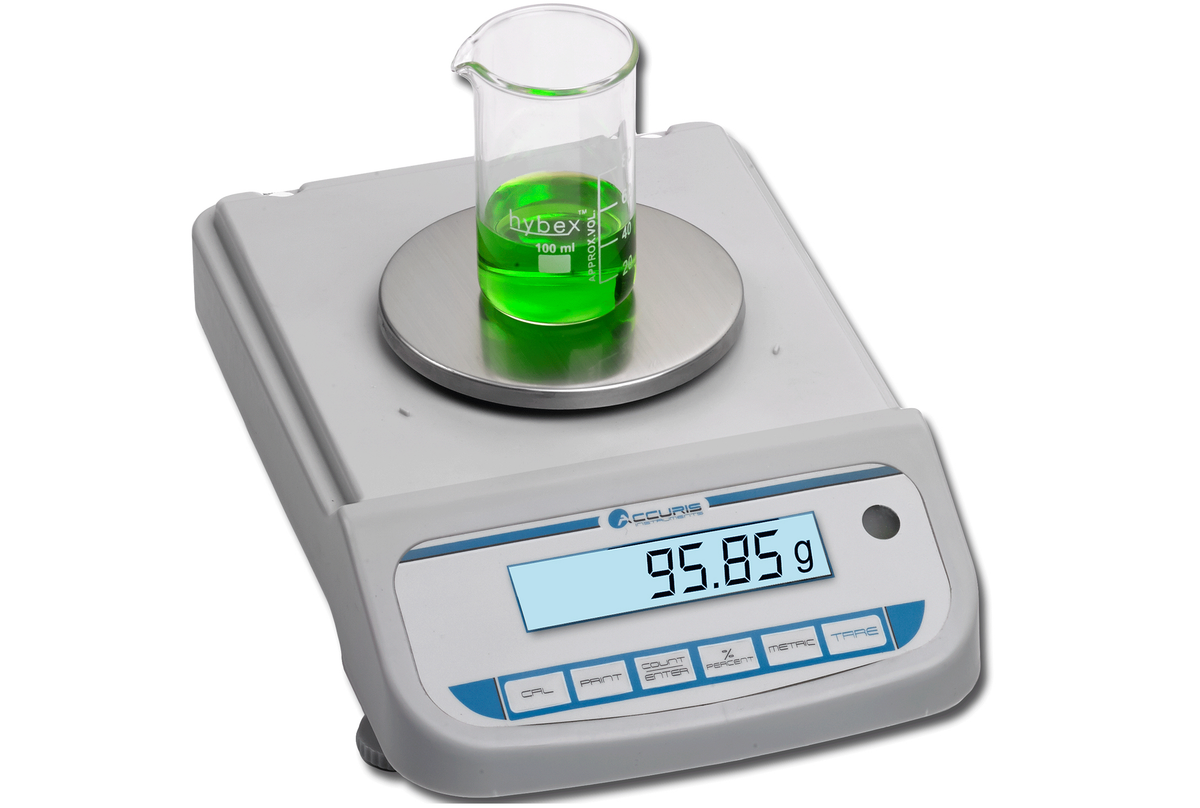

With a 5,000 g capacity and 0.1 g readability, the W3300-5K takes loads on an 18 cm (7 in) round pan. There is no draft shield. Gold-plated ceramic capacitors measure the load, and readings appear on a brightly lit LCD above a splash-resistant keypad. Units include grams, ounces and carats, with piece counting and percent deviation programs. Calibration uses an external weight; Accuris recommends the W1005-2000 2 kg weight. The balance measures 7.5 × 11 × 3.1 in.
Key features
- 5,000 g x 0.1 g weighing range
- 18 cm (7 in) round pan; no draft shield
- Splash-resistant control panel and backlit LCD
- Counting and percent deviation modes
- External calibration; W1005-2000 (2 kg) weight recommended
- RS232 output; 18.8 × 28 × 8 cm
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3300-5K / W3300-5K-E |
| Capacity | 5,000 g |
| Readability | 0.1 g |
| Linearity | ±0.2 g |
| Pan Diameter | 7 in (18 cm) |
| Draft Shield | None |
| Calibration | External |
| Recommended Calibration Weight | 2 kg |
| Weighing Units | g, oz, ct, pieces, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 7.5 × 11 × 3.1 in (18.8 × 28 × 8 cm) |
| Electrical | 115 V, US plug (W3300-5K); 230 V, European plug (W3300-5K-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3300-5K | 115V, US plug |
| W3300-5K-E | 230V, European plug |
Documents
