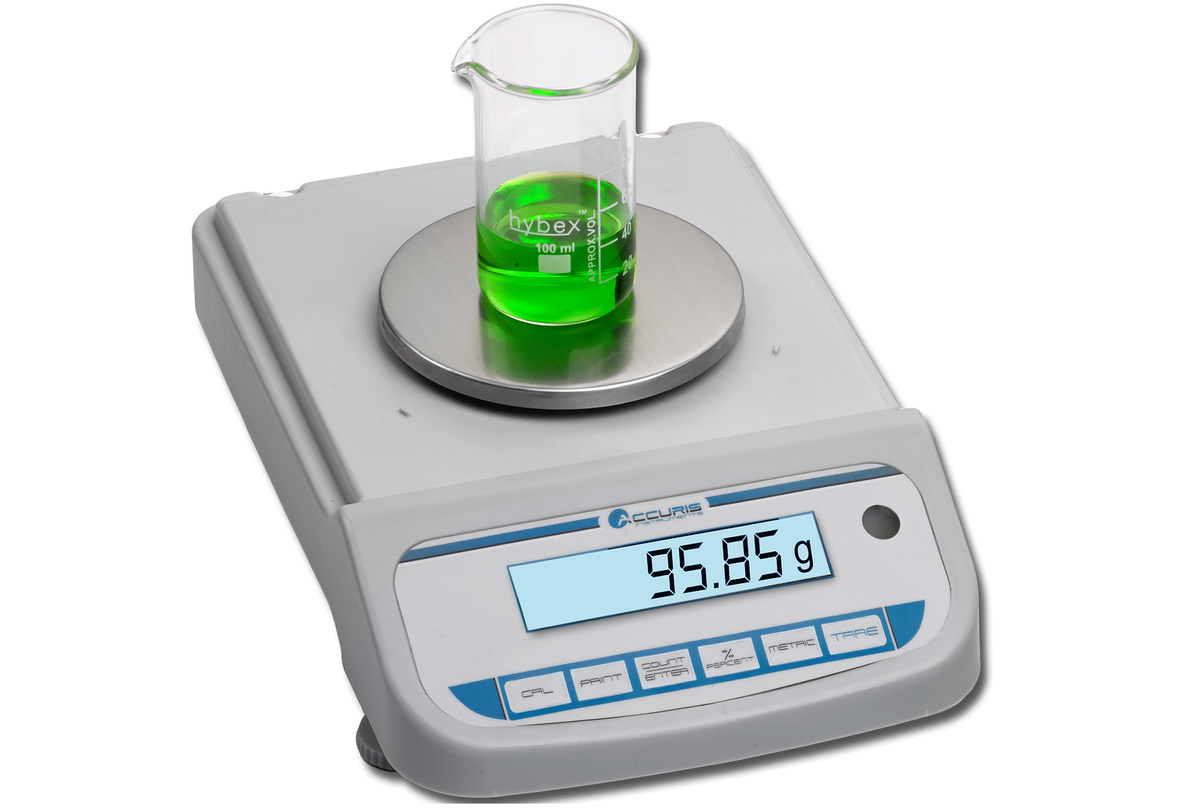

Weighing to 300 g in 0.01 g steps, the W3300-300 covers general weighing in academic and research labs. Linearity is ±0.02 g. A plastic draft shield ring surrounds the 11.5 cm stainless steel pan to limit drift from air movement. Gold-plated ceramic capacitors provide the mass reading, displayed on a large backlit LCD, and the splash-resistant control panel offers unit switching, counting and percent deviation. Calibration takes an external weight and a few keystrokes, and RS232 output connects to a computer or printer.
Key features
- 300 g x 0.01 g weighing range
- Linearity ±0.02 g
- 11.5 cm stainless pan inside a plastic draft shield ring
- Splash-resistant control panel with large backlit LCD
- Units g, oz, ct, pieces and %
- External calibration; RS232 port
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3300-300 / W3300-300-E |
| Capacity | 300 g |
| Readability | 0.01 g |
| Linearity | ±0.02 g |
| Pan Diameter | 4.5 in (11.5 cm) |
| Draft Shield | Plastic draft shield ring |
| Calibration | External |
| Weighing Units | g, oz, ct, pieces, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 7.5 × 11 × 3.1 in (18.8 × 28 × 8 cm) |
| Electrical | 115 V, US plug (W3300-300); 230 V, European plug (W3300-300-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3300-300 | 115V, US plug |
| W3300-300-E | 230V, European plug |
