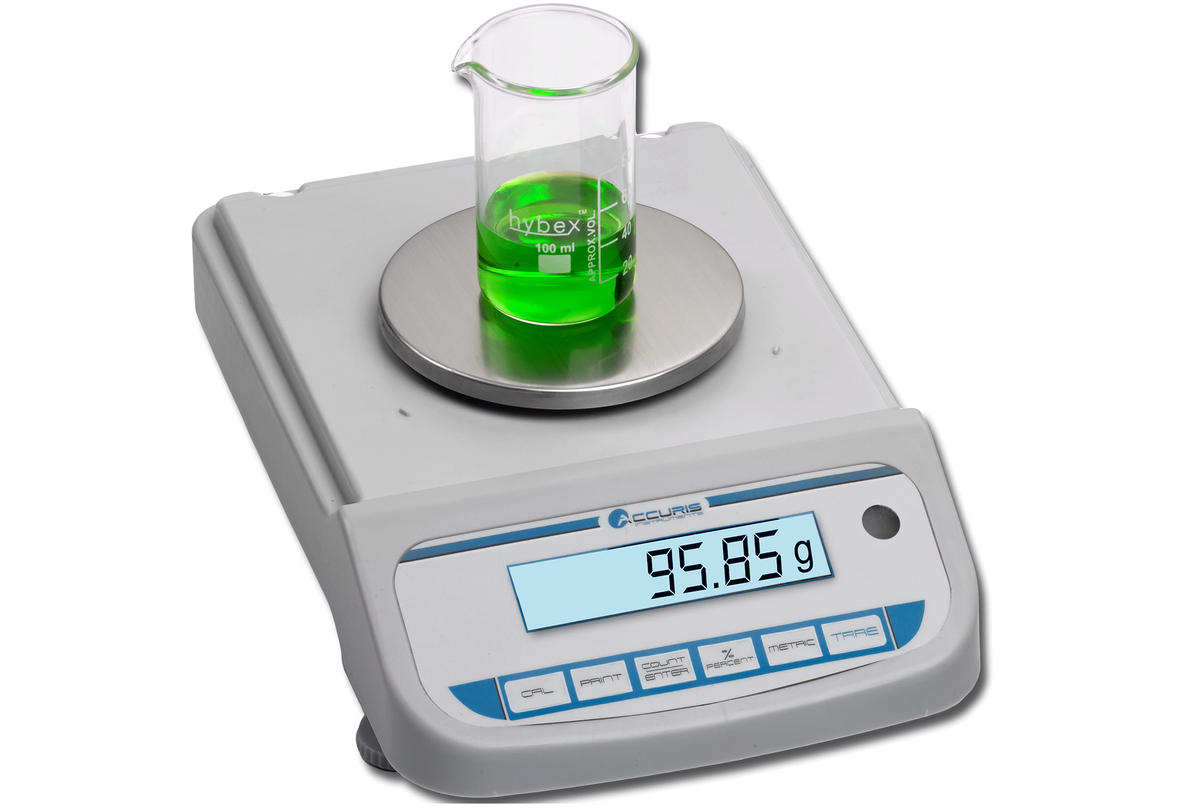

The W3300-120 is the smallest Accuris compact balance, built for routine weighing to 120 g at 0.01 g readability with ±0.02 g linearity. Its gold-plated ceramic capacitor sensor sits under a 4.5 in stainless steel pan, and a plastic draft shield ring blocks air currents. The splash-resistant keypad and backlit LCD support grams, ounces, carats, piece counting and percent weighing. Calibration is external; the recommended weight is the 100 g W1000-100. Outer dimensions are 7.5 × 11 × 3.1 in.
Key features
- 120 g capacity, 0.01 g readability, ±0.02 g linearity
- 4.5 in (11.5 cm) stainless steel round pan
- Plastic draft shield ring against air currents
- Counting and percent modes; g, oz, ct
- External calibration with W1000-100 100 g weight
- RS232 port; housing 18.8 × 28 × 8 cm
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3300-120 / W3300-120-E |
| Capacity | 120 g |
| Readability | 0.01 g |
| Linearity | ±0.02 g |
| Pan Diameter | 4.5 in (11.5 cm) |
| Draft Shield | Plastic draft shield ring |
| Calibration | External |
| Recommended Calibration Weight | 100 g |
| Weighing Units | g, oz, ct, pieces, % |
| Display | Backlit LCD |
| Connectivity | RS232 |
| Dimensions | 7.5 × 11 × 3.1 in (18.8 × 28 × 8 cm) |
| Electrical | 115 V, US plug (W3300-120); 230 V, European plug (W3300-120-E) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| W3300-120 | 115V, US plug |
| W3300-120-E | 230V, European plug |
