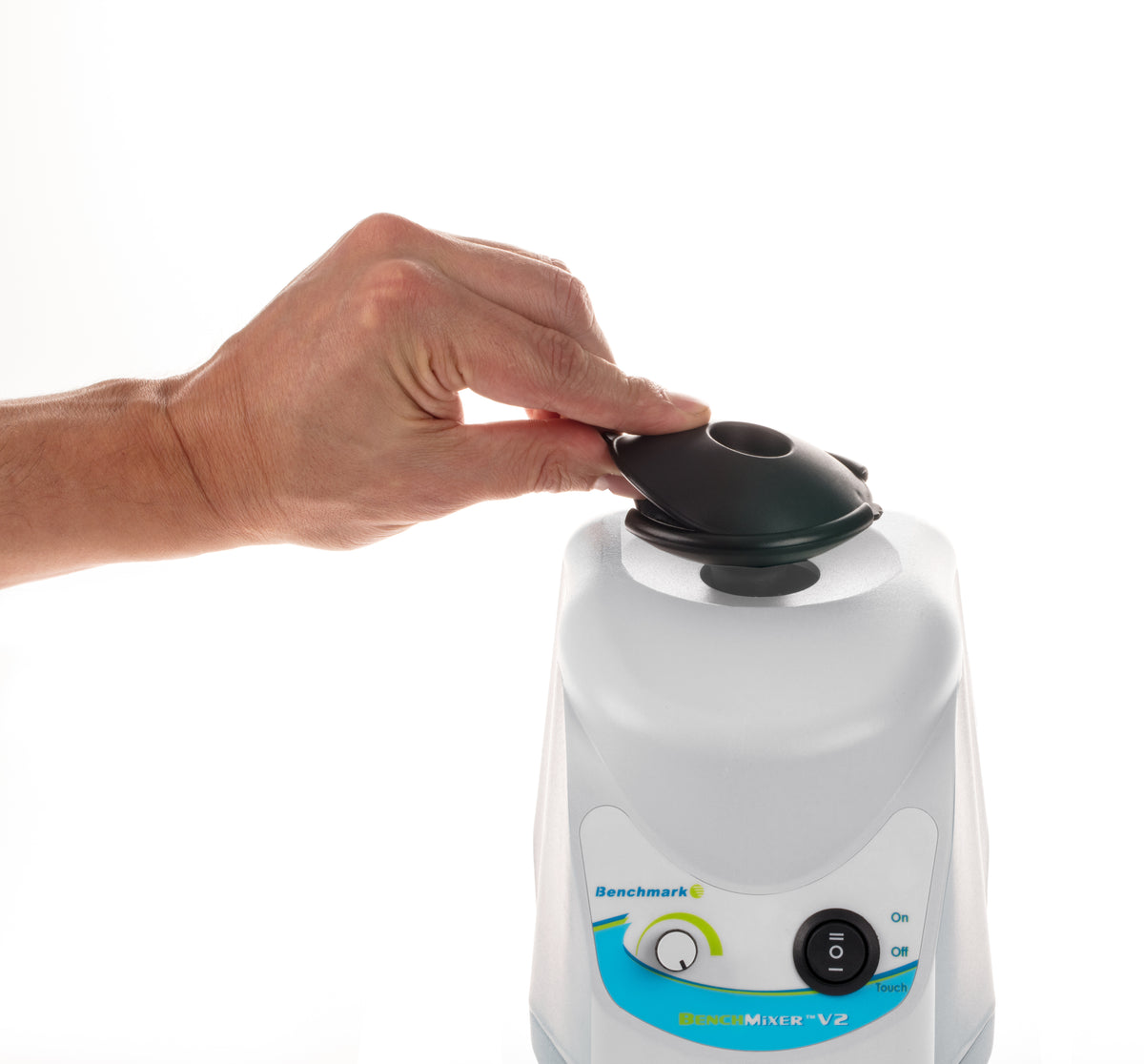

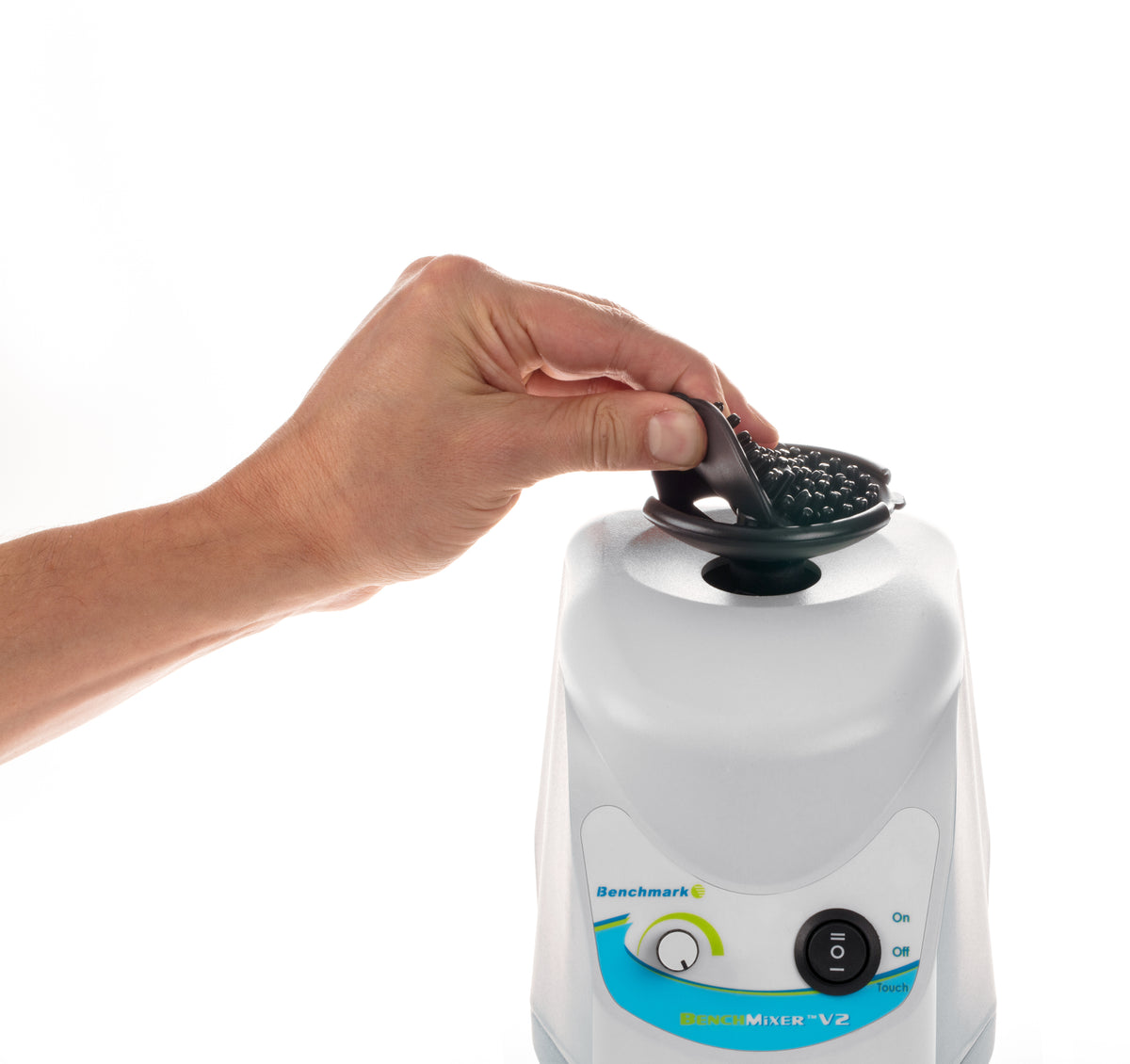

BenchMixer V2 pairs a 200–3,200 rpm vortex drive with a reversible rubber head. One side is a cup for single tubes; flipped and reattached, the other side is a flat, dimpled surface for odd-shaped vessels or several test tubes at once. Q-Drive balancing keeps the 3 mm orbit smooth and quiet, and at full speed it vortexes 50 mL tubes. Touch or continuous modes are available, and the unit operates from 4 to 45°C.
Key features
- Flip-top head: cup side for single tubes, flat-dimpled side for multiple vessels
- 200–3,200 rpm, 3 mm orbit; handles tubes up to 50 mL
- Touch-activated or continuous running
- Counterbalanced Q-Drive system for quieter, longer-lasting operation
- 5 × 6.3 × 6.7 in, 8.4 lb
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | BV1003 / BV1003-E |
| Speed Range | 200–3,200 rpm (variable) |
| Operating Modes | Touch or continuous |
| Orbit | 3 mm |
| Max Tube Size | 50 mL |
| Dimensions | 5 × 6.3 × 6.7 in (13 × 16 × 17 cm) |
| Operating Temperature | 4–45°C |
| Weight | 8.4 lb (3.8 kg) |
| Electrical | 115 V, 60 Hz or 230 V, 50 Hz; 180 W |
| Head | Reversible: cup or flat/dimpled |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BV1003 | 115V, US plug |
| BV1003-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| BV1000-COMBO | Benchmark Scientific COMBO Head for Microplate & Microtubes BV1000-COMBO |
| BV1000-H500 … | Benchmark Scientific BenchMixer Horizontal Head BV1000-H Series |
| BV1003-T150 | Benchmark Scientific Foam Rack for 12 × 15 mL Tubes BV1003-T150 |
| BV1003-T500 | Benchmark Scientific Foam Rack for 5 × 50 mL Tubes BV1003-T500 |
Questions about the BenchMixer V2 Vortex Mixer BV1003
What speed range and motion does the BenchMixer V2 Vortex Mixer BV1003 have?
The BenchMixer V2 Vortex Mixer BV1003 runs at 200–3,200 rpm (variable) on a 3 mm orbit.
What accessories are available for the BenchMixer V2 Vortex Mixer BV1003?
Accuris lists BV1000-COMBO (COMBO Head for Microplate & Microtubes), BV1000-H500 (BenchMixer Horizontal Head), BV1003-T150 (Foam Rack for 12 × 15 mL Tubes) and BV1003-T500 (Foam Rack for 5 × 50 mL Tubes) for the BenchMixer V2 Vortex Mixer BV1003.
Is the BenchMixer V2 Vortex Mixer BV1003 available with a European plug?
Yes. BV1003-E is the European-plug version of BV1003: BV1003 is 115V with a US plug and BV1003-E is 230V with a European plug.
