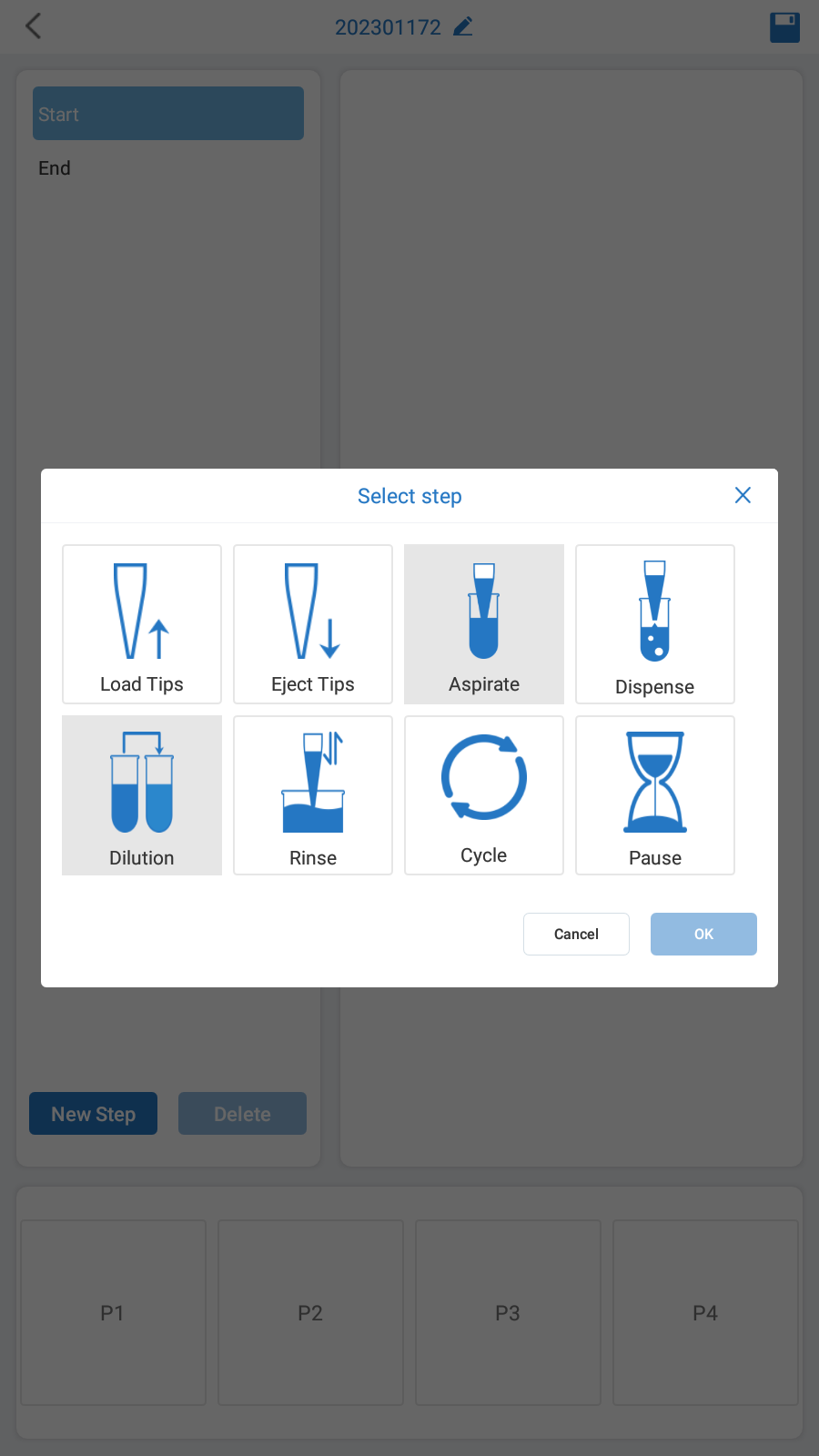

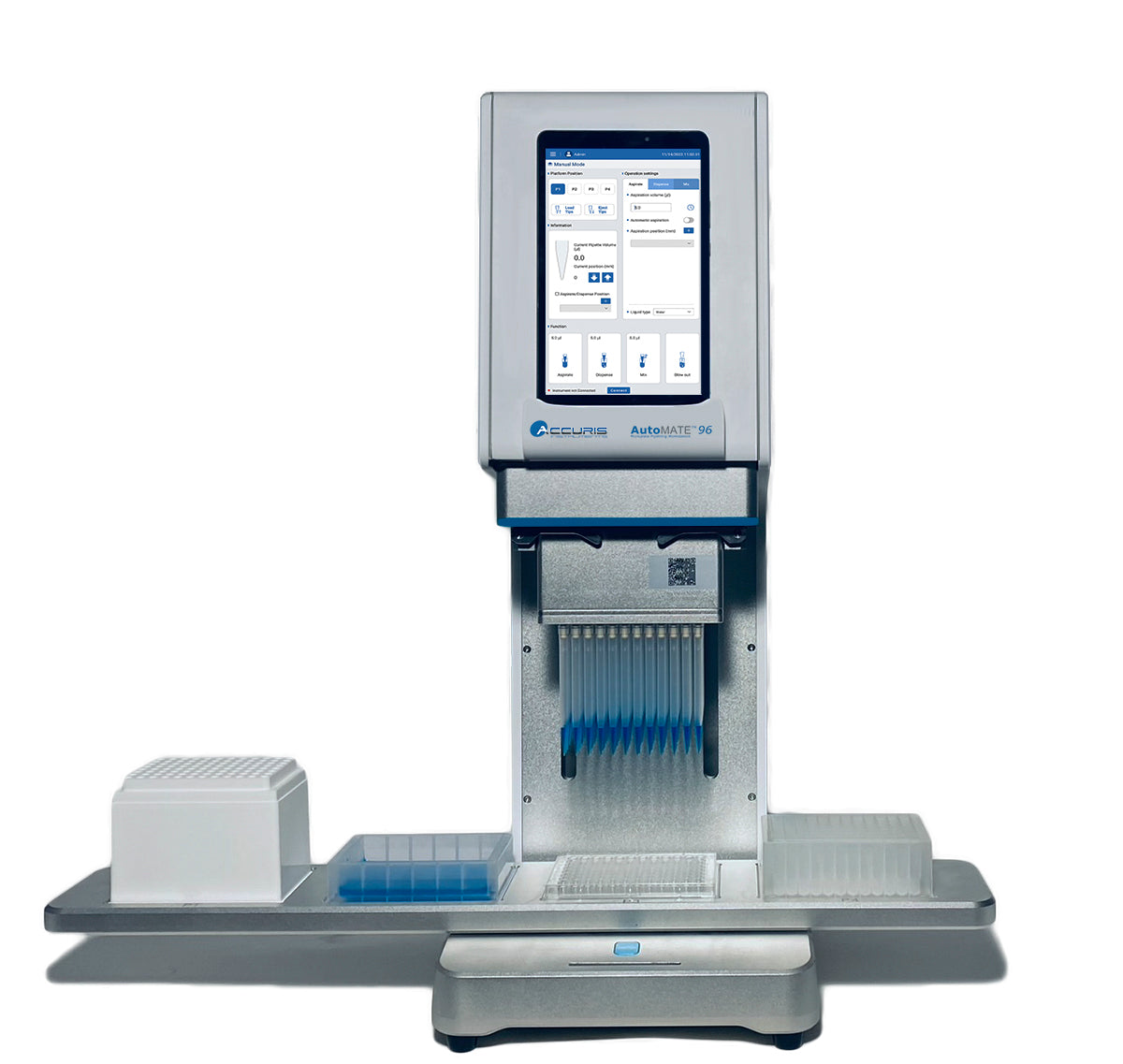

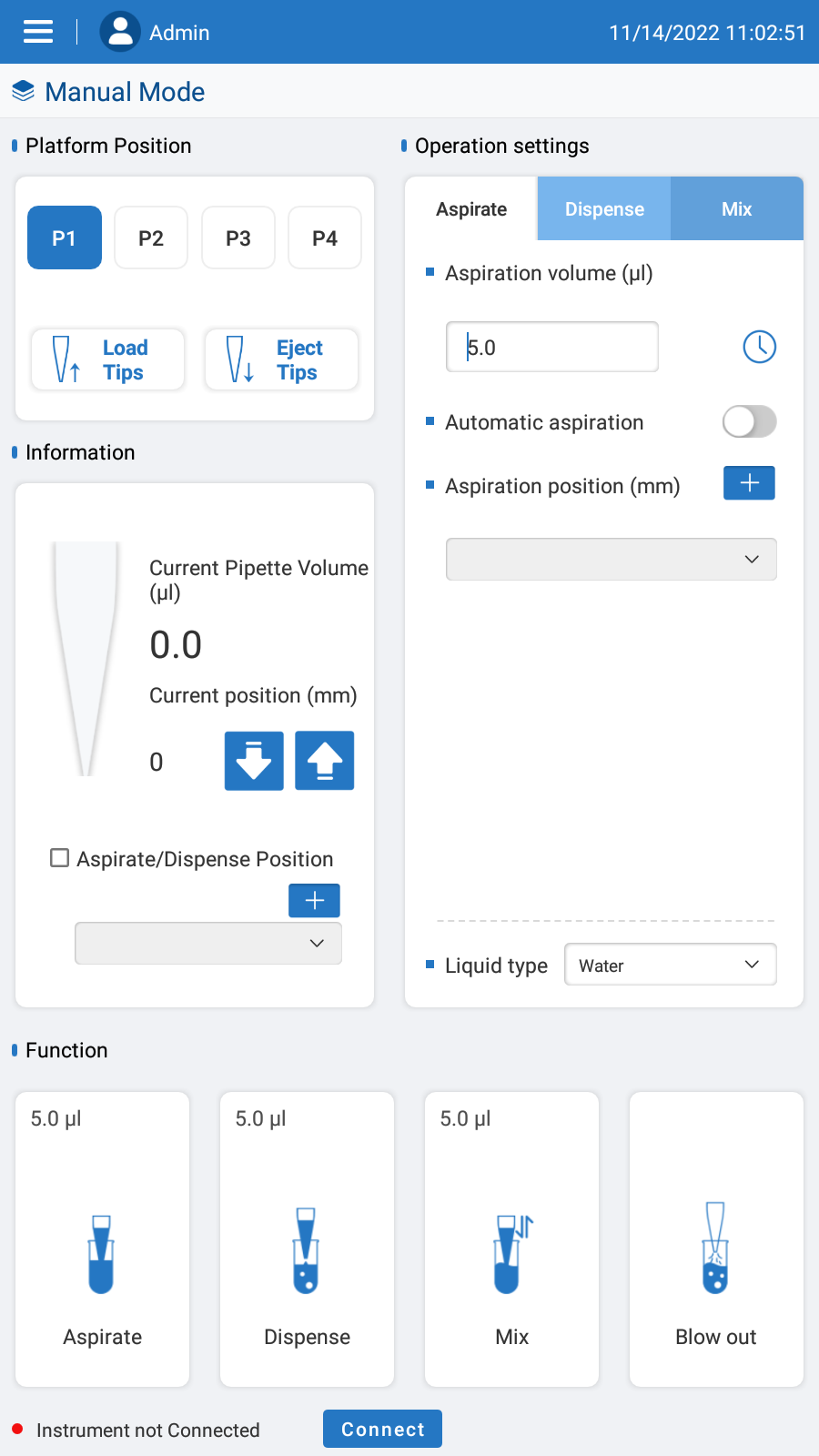

The AutoMATE 96 MP9604 is an automated 96-channel pipetting station that transfers between microplates and reservoirs with all 96 air-displacement pistons working together. A motorized four-position platform aligns plates, tip racks and reservoirs under the head, and tip loading and ejection are also motorized, so programmed runs finish without manual repositioning. Exchangeable heads cover 1–20 µL, 5–200 µL and 100–1000 µL; the head is not included. Programming runs on the included 8-inch touch screen tablet.
Key features
- 96 individual pistons, air displacement pipetting
- Four-position motorized platform for tips, plates and reservoirs

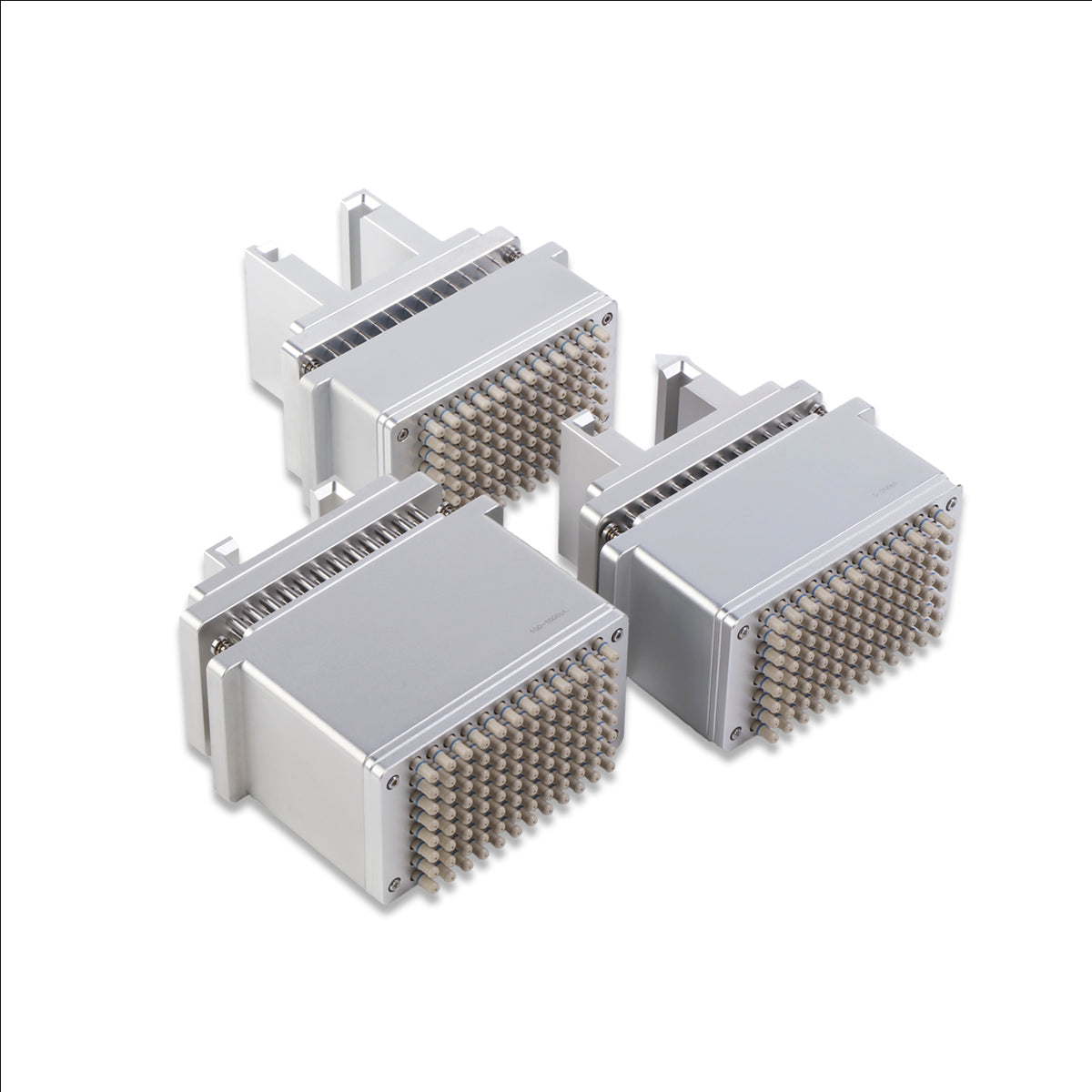

- Exchangeable heads: 1–20 µL, 5–200 µL, 100–1000 µL (head not included)
- Accepts 96/384-well, shallow and deep-well, and PCR plates
- Standard pipetting and multi-dispensing modes
- 69.0 × 35.0 × 67.3 cm; fits a bench or biosafety cabinet
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | MP9604 / MP9604-E |
| Channels | 96 individual pistons |
| Volume Range | 1–1,000 µL, depending on pipette head (head not included) |
| Pipette Heads (Exchangeable) | 1–20 µL, 5–200 µL, 100–1,000 µL |
| Pipetting Technology | Air displacement |
| Platform Capacity | 4 positions (tip racks/plates/reservoirs), motorized |
| Compatible Plates | 96/384-well microplates, shallow/deep well plates, PCR plates |
| Display | 8 in color touch screen tablet (included) |
| Communication Ports | USB (import/export) |
| Electrical | Universal 120–240 V AC, 50–60 Hz; 100 W |
| Dimensions | 27.2 × 13.8 × 26.5 in (69.0 × 35.0 × 67.3 cm) |
| Weight | 71.8 lb (32.6 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| MP9604 | 115V, US plug |
| MP9604-E | 230V, European plug |
