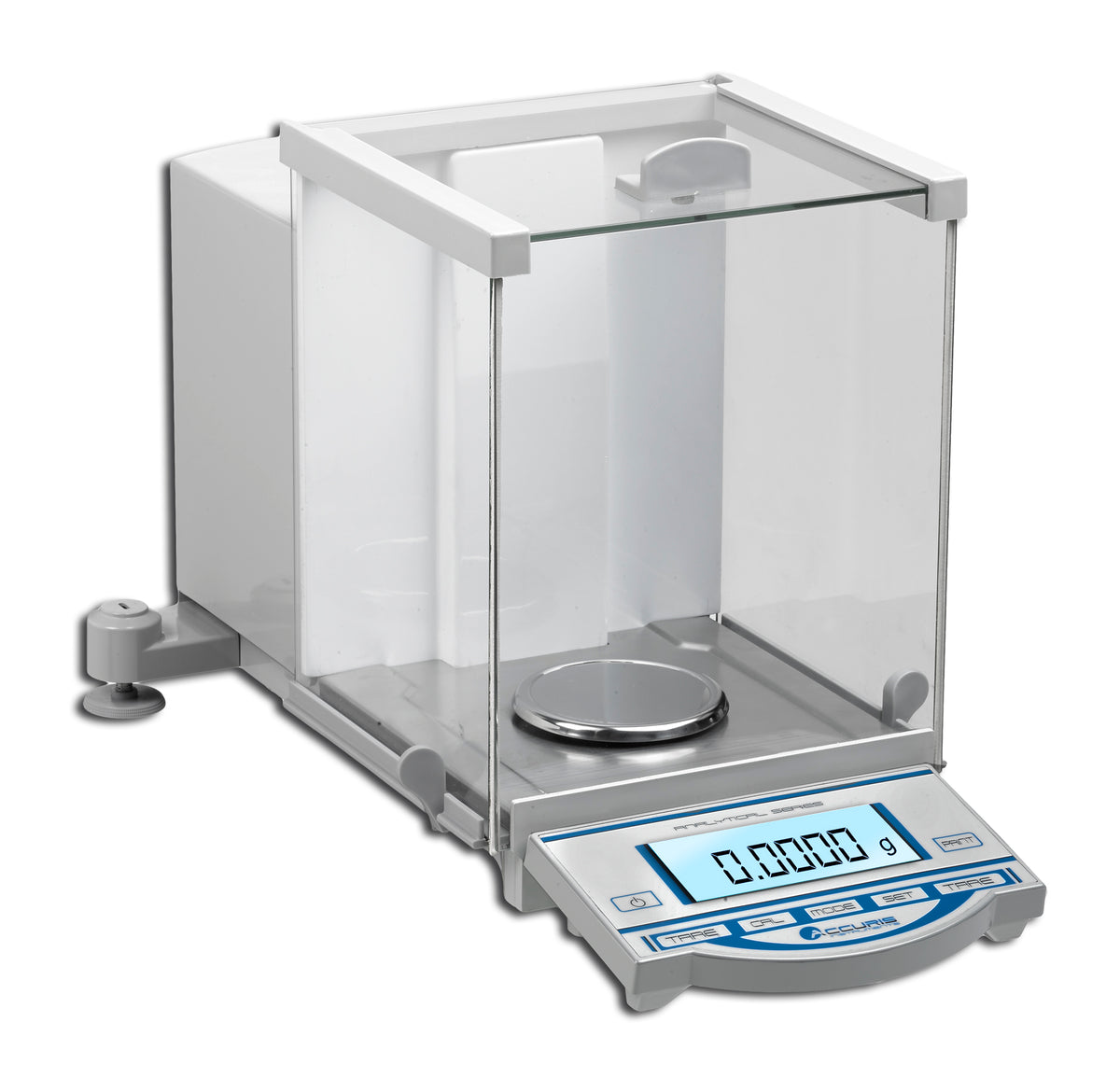

The W3100-120 is an Accuris analytical balance for samples up to 120 g, reading to 0.0001 g (0.1 mg) with ±0.2 mg linearity. Calibration is external, using a standard weight. The glass draft shield has sliding doors on both sides and the top, and rear leveling feet with a bubble level keep the unit steady. Software modes cover weighing in grams, ounces, pounds or carats, piece counting, percent deviation and check weighing, with results sent to a computer or printer over RS232. Outer dimensions are 12.5 × 18.5 × 11 in.
Key features
- 120 g capacity, 0.0001 g readability
- Linearity ±0.2 mg
- Glass draft shield with sliding side and top doors
- Counting, percent deviation and check-weighing modes
- RS232 port for computer or printer output
- External calibration; 32 × 47 × 28 cm
Specifications
| Brand | Accuris |
|---|---|
| Catalog number | W3100-120 / W3100-120-E |
| Capacity | 120 g |
| Readability | 0.0001 g (0.1 mg) |
| Linearity | ±0.2 mg |
| Calibration | External |
| Draft Shield | Glass, sliding side and top doors |
| Weighing Units | g, oz, lb, ct |
| Modes | Weighing, piece counting, percent, check weighing |
| Display | Backlit LCD |
| Data Output | RS232 |
| Dimensions (W × D × H) | 12.5 × 18.5 × 11 in (32 × 47 × 28 cm) |
| Electrical | 115 V, US plug (W3100-120); 230 V, European plug (W3100-120-E) |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| W3100-120 | 115V, US plug |
| W3100-120-E | 230V, European plug |
