Tube Caps & Closures: Snap, Screw, and Press-Fit Options
A tube cap is the cheapest component in the specimen pathway and the one most likely to ruin it. At LabSupplies.com, the closure questions we field are almost never about price — they are about fit: which diameter, which retention mechanism, and whether the cap will survive what happens to the tube next. Get the mechanism wrong and you get evaporation, aerosol on opening, or a cap that pops in transit.
Three things decide the choice: the tube's outside diameter, how the cap has to hold on, and what the tube goes through afterwards — centrifuge, freezer, thermal cycler, or a courier van.
Start With Diameter, Not Style
Closures are sold by the tube's outside diameter, and the common lab sizes are tightly clustered: 10, 12, 13, 16 and 17 mm. Measure the tube OD rather than inferring it from the nominal volume — a 5 mL and a 10 mL tube can share a diameter, and two 15 mL tubes from different lines may not.
Several formats are cut to span more than one size. Globe Scientific's snap caps are offered as a 12/13 mm dual-fit, and their flange plug caps run 12, 13 and 16 mm in one line, which is what makes a single closure SKU workable across a mixed tube inventory. A universal cap such as the 118115 is designed to fit most 12 mm tubes; universal means broad, not guaranteed, so trial-fit before standardising a whole bench on one.
The Four Retention Mechanisms
This is the part that actually differentiates closures, and the names are used loosely across catalogues.
| Mechanism | How it holds | Best for |
|---|---|---|
| Snap cap | Skirt snaps over the tube rim | Fast one-handed capping; vacuum and test tubes |

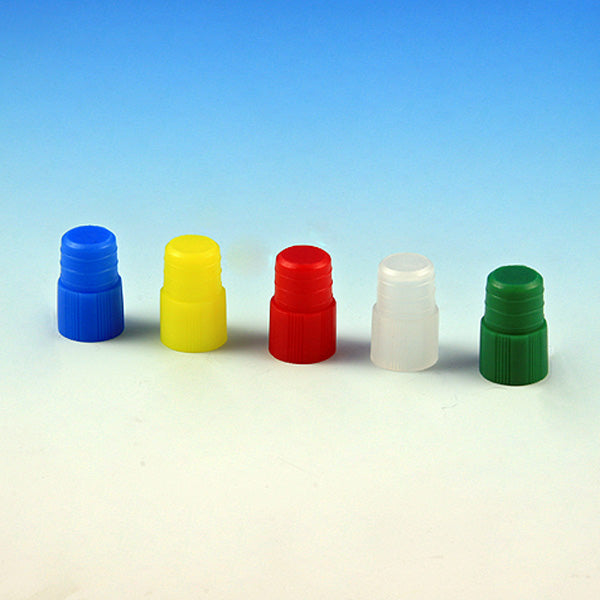

| Plug / push-in cap | Body pushes down inside the tube bore | A low profile and a tight seal against evaporation |
| Flange plug cap | Plug inside, flange resting on the rim | Plug security plus an easy finger grip to remove |
| Screw cap | Threads engage the tube | Anything that must not open: transport, cryo, long storage |
Stoppers sit alongside these as a separate family. Caplugs® Evergreen's LDPE test tube stoppers run from 8 mm through 17 mm and are made BD®-compatible, which matters when the tube in hand is a blood collection tube rather than a general-purpose one.
The practical rule: if the tube will be inverted, shipped, or frozen, use a screw cap or a flange plug. A plain snap cap is a workflow convenience, not a transport seal.
Cold Storage Changes the Answer
Polymers stiffen and contract as they go down, and a closure that seals at bench temperature can loosen at −80 °C. Cryogenic caps are specified separately for that reason. The Caplugs® Evergreen CryoSure® cryo vial screw caps are HDPE screw closures supplied 200 or 1,000 per bag, and the range offers three top profiles that change how the vial behaves in a rack:
- Flat top — stacks and sits flush under a box lid.
- Recessed top — a sunken face that protects a written or printed label from abrasion.
- Tethered — the cap stays attached to the vial, so it cannot be dropped, swapped, or mixed up between samples during a gloved, cold-fingered handling step.
If you are specifying cold storage more broadly, our cryogenic vial selection guide covers the vial side of the same decision, and the ULT freezer buying guide covers where it all ends up.
When the Cap Has to Be Optically Clear
Most closures never need to transmit light. PCR is the exception. On a real-time instrument the optics read through the cap, so the closure is part of the optical path — a standard opaque cap makes the run unreadable.
Globe Scientific's 0.2 mL PCR strip dome caps are moulded in optically clear polypropylene in 8- and 12-strip format, supplied 120 per pack. The domed profile is deliberate: it focuses the excitation and emission path rather than scattering it the way a flat face would. If you are running qPCR, treat cap clarity as a specification, not a preference. Our PCR tubes, strips and plates guide covers matching the format to the block.
Colour as a Working Control
Most of these closures are stocked in a colour range — blue, green, red, yellow, lavender, white, grey, orange, black and natural — and the colour is doing real work, not decoration. Colour-coding by assay, by draw time, by patient panel, or by study arm turns a rack of visually identical tubes into something a technician can sort at a glance and a supervisor can audit from across the bench.
The one caution: colour conventions are local. A scheme that is obvious to the person who set it up is invisible to a night-shift locum, so write it down and post it where the tubes are capped.
Pack Sizes and What They Imply
Closures are consumables bought deep — typically 1,000 per bag, with case quantities running to 10,000 or 20,000, and cryo caps in smaller 200-per-bag counts because the use rate is lower. Two things follow. First, a closure is not a trial purchase; confirm fit on a sample before committing to a case. Second, because the per-unit cost is low and the failure cost is high, this is the wrong line to economise on by substituting an approximate fit.
Selecting the Right Closure
| If the tube… | Specify |
|---|---|
| Stays on the bench, opened often | Snap cap |
| Must resist evaporation | Plug or flange plug cap |
| Ships, or is inverted or mixed | Screw cap |
| Goes to −80 °C or below | Cryo screw cap; tethered if handled gloved |
| Is read optically (qPCR) | Optically clear dome cap |
| Is a blood collection tube | BD®-compatible stopper in the matching diameter |
| Comes in mixed diameters | A dual-fit 12/13 mm or multi-size flange plug line |
Compare every diameter, mechanism and colour in the tube caps and closures collection.
Frequently Asked Questions
How do I work out what size cap my tubes need?
Measure the tube's outside diameter at the rim, in millimetres. Closures are sold by that dimension — 10, 12, 13, 16 and 17 mm are the common lab sizes — and not by the tube's nominal volume, which is not a reliable guide to diameter.
What is the difference between a snap cap, a plug cap and a flange plug cap?
A snap cap grips over the outside of the tube rim. A plug cap pushes down inside the bore, giving a lower profile and a tighter seal against evaporation. A flange plug does both: the plug seals inside while a flange rests on the rim and gives you something to grip when removing it.
Are tube caps interchangeable between tube brands?
Only where the manufacturer states compatibility. Diameter alone is not sufficient, because rim geometry and wall thickness vary between lines. Some closures are explicitly specified as BD®-compatible; where no compatibility is stated, trial-fit before ordering a case.
Which cap should I use for freezer storage?
A cryogenic screw cap. Push-fit and snap closures can loosen as the polymer contracts at ultra-low temperature. If vials are handled with gloves in the cold, a tethered cap also removes the risk of dropping or cross-swapping caps between samples.
Do PCR caps have to be optically clear?
For real-time PCR, yes — the instrument reads fluorescence through the closure, so an opaque cap makes the run unreadable. Optically clear polypropylene domed caps are made for this. For end-point PCR where no optical read happens through the cap, clarity is not required.
Why are laboratory closures sold in so many colours?
To make identical-looking tubes sortable by eye. Labs colour-code by assay, draw time, patient panel or study arm, which speeds sorting and makes errors visible. Document the scheme where tubes are capped, since the convention is local to your lab and not obvious to anyone new.
Setting up a new lab? Our LaunchLab program gives you 15% off everything for 12 months, consumables included. See if you qualify →
Need to match a closure to your tubes? Shop tube caps and closures at LabSupplies.com — authorized dealer for Globe Scientific and Caplugs® Evergreen, shipping from US inventory. Browse the collection →
If you are unsure which closure fits the tubes you already run, send us the tube part number and we will match it. Reach out at support@labsupplies.com.
