PCR Tubes vs Strips vs Plates: Choosing the Right Format for Your Lab

Choosing the right PCR tube format is one of those decisions that feels minor until it isn't. The wrong format costs you time on setup, money on consumables, and occasionally an entire plate of failed reactions because the cap type wasn't compatible with your detection chemistry. In our experience working with molecular biology labs of all sizes, format selection comes down to three variables: how many samples you're running, what your thermal cycler accepts, and whether you're doing conventional PCR or real-time detection.

This guide gives you a direct comparison of all three formats, a cost-per-reaction breakdown, the cap selection rules that most labs get wrong, and a decision matrix so you can land on the right choice in under two minutes.

The 3 Formats at a Glance

Individual tubes, 8-strip tubes, and 96-well plates all do the same thing — hold samples for thermal cycling — but they serve very different workflows. Here's the direct comparison before we go deeper.

Format	Samples per Run	Setup Time	Cost per Reaction	Flexibility	Best For
Individual Tubes (0.2mL)	1–16	Highest — cap each tube individually	$0.08–0.15	Maximum — mix tube sizes, easy to label	Optimization runs, low-throughput, single reactions
8-Strip Tubes	8–96 (in multiples of 8)	Medium — cap 8 at once with strip cap	$0.05–0.10	High — run partial plates, easy strip labeling	Mid-throughput, flexible sample numbers, routine assays
96-Well Plate	Up to 96	Lowest — multichannel pipette fills entire column at once	$0.03–0.06	Low — commit to 96 positions, harder to label individually	High-throughput screening, standardized assays, qPCR

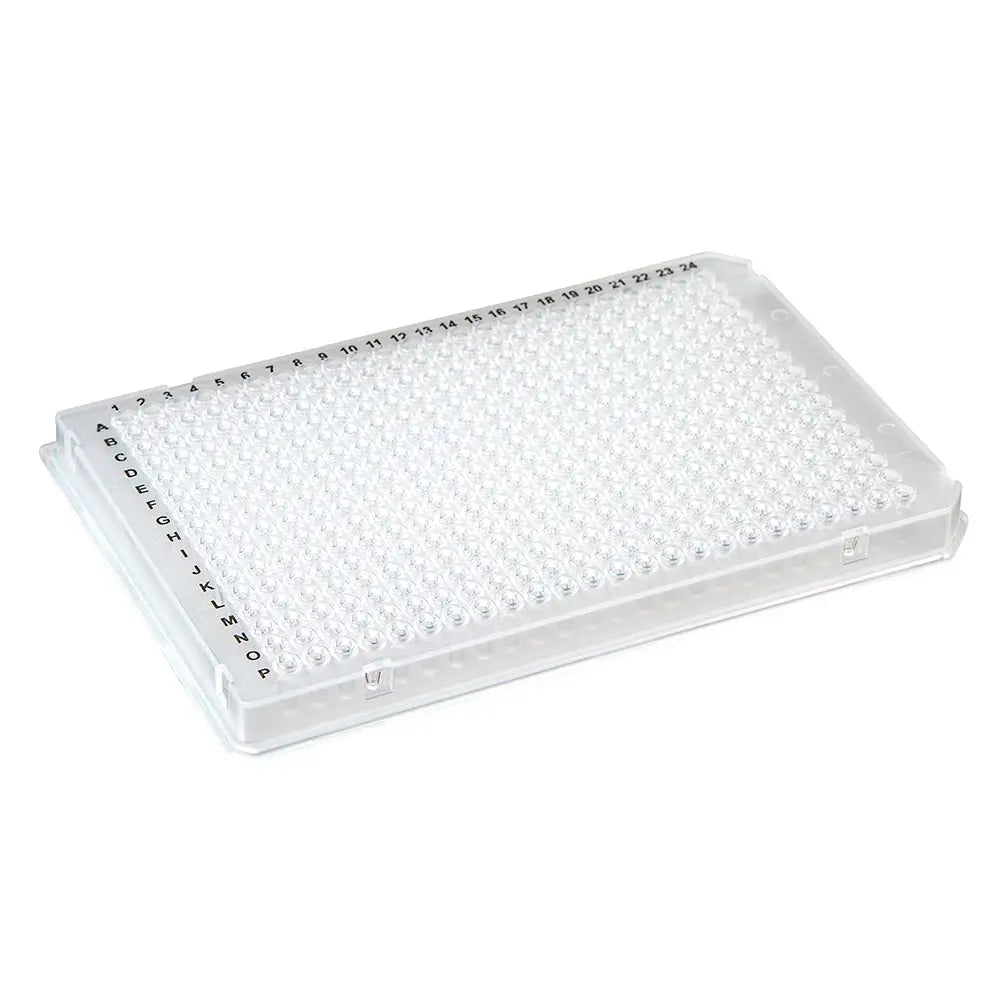

384-Well Plate	Up to 384	Lowest — requires specialized liquid handling	$0.01–0.03	Lowest — requires automated dispensing for accuracy	Ultra-high throughput, drug screening, genomics

The decision rule in plain English: Run fewer than 24 samples regularly → individual tubes or strips. Run 24–96 samples → strips or plates. Run 96+ samples consistently → plates. Run 384+ → plates with automation. Don't buy plates for a 12-sample assay just because they look more professional — you'll waste wells and complicate your workflow.

Why Thin-Wall Construction Is Non-Negotiable

This is the most important technical point in this entire guide — and the one most often ignored when labs substitute a cheaper tube that "looks the same."

PCR works by rapidly cycling temperatures: denaturation at ~95°C, annealing at 50–65°C, extension at 72°C. The thermal cycler's heating block needs to transfer temperature changes to your sample as quickly and accurately as possible. That transfer happens through the tube wall.

Standard microcentrifuge tubes have walls 2–3x thicker than PCR tubes. That extra wall thickness acts as insulation — it slows the temperature transfer, extends ramp times, and creates a lag between what the block reads and what your sample actually experiences. The result: incomplete denaturation, poor primer annealing, and failed or inconsistent amplification.

Thin-wall PCR tubes are manufactured with precisely controlled wall thickness — typically under 0.2mm — to maximize thermal conductivity. This is not a premium feature. It is a basic requirement for the reaction to work correctly.

Never substitute standard microcentrifuge tubes for PCR tubes. Even if the dimensions look similar, the wall thickness difference will compromise your results. We've seen labs troubleshoot failed PCR reactions for days before discovering the "0.2mL tubes" they ordered were standard microtubes, not thin-wall PCR tubes.

Individual Tubes: When Maximum Flexibility Beats Efficiency

Individual 0.2mL PCR tubes are the right choice when your sample count varies from run to run and you can't predict whether you'll have 3 samples or 15. They're also the standard format for method development and optimization runs where you're deliberately varying conditions — primer concentrations, annealing temperatures, Mg²⁺ concentrations — across tubes in the same block.

The trade-off is setup time. Each tube gets capped individually. If you're running 16 tubes, that's 16 cap presses, 16 chances to accidentally knock a tube over, and 16 opportunities for contamination. For routine high-volume work, individual tubes add labor cost that strips and plates eliminate.

When to use individual tubes:

• Optimization and gradient PCR experiments
• Running ≤8 samples per session
• Workflows where sample identity labeling per tube is critical
• When your thermal cycler doesn't have a 96-well block (some older cyclers use 0.5mL tube blocks or specialized formats)

Strip Tubes: The Best Middle Ground

8-strip tubes connect 8 individual tubes in a row that matches one column of a standard 96-well plate. They're the most versatile format in most molecular biology labs because they scale efficiently in both directions — run one strip for 8 samples, run 12 strips to fill a 96-well block.

The real advantage over individual tubes is speed. A single push of a strip cap or 8-domed cap bar closes all 8 tubes simultaneously. Multichannel pipettes work perfectly with strips aligned in a reservoir. And you can label the strip by number rather than each tube individually, which is faster and less error-prone.

When to use strip tubes:

• Running 8–48 samples per session
• Genotyping workflows with variable sample numbers
• Labs that want plate-like efficiency without committing to a full 96-well plate
• Any situation where partial-plate runs are common — strips let you fill exactly the positions you need

Browse our full PCR tubes & plates collection — individual tubes, 8-strip formats, and 96-well plates in stock and shipping from the USA.

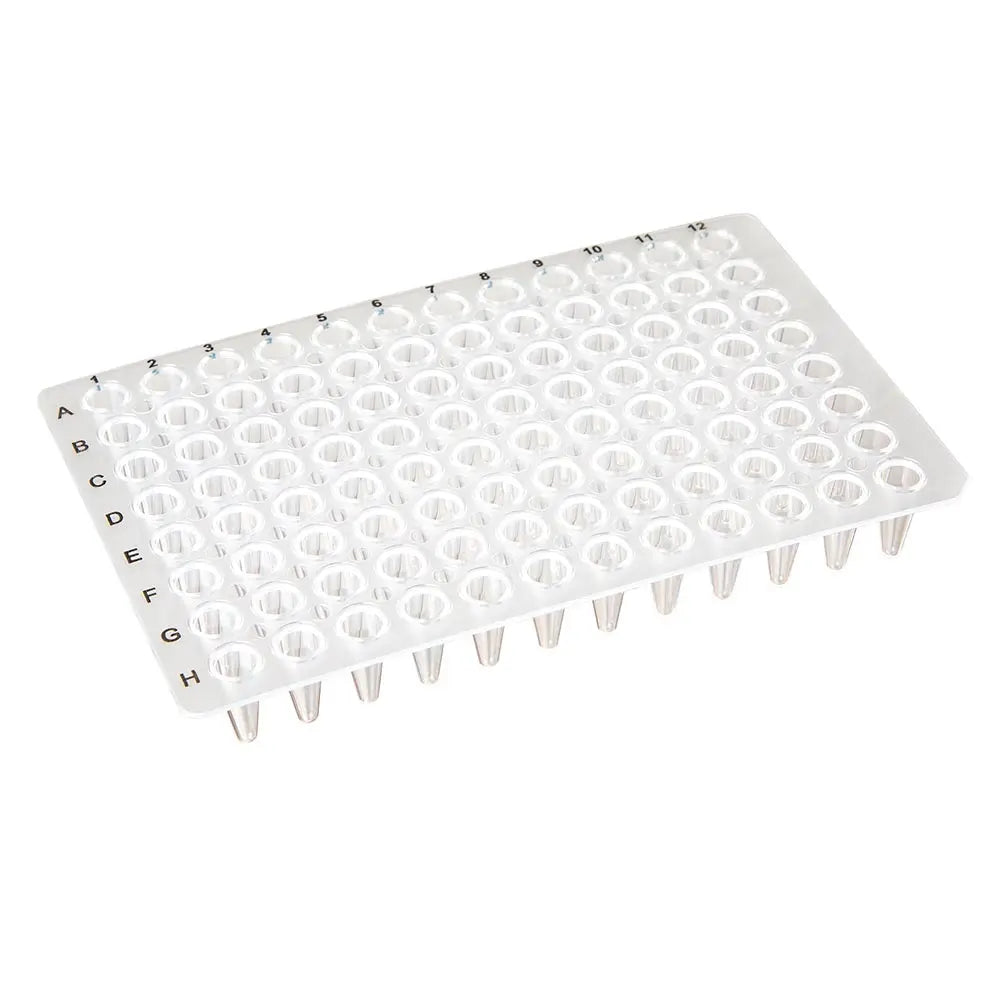

96-Well Plates: High-Throughput Efficiency

96-well plates are the standard format for high-throughput PCR and the only practical format for qPCR in most lab settings. They accept multichannel pipette loading (fill an entire 8-well column in one step), integrate with plate-reading optics for real-time fluorescence detection, and reduce per-reaction cost to its lowest point.

The trade-off: you commit to the plate. Setting up a 96-well plate for 20 samples means 76 empty wells, wasted reagents, and a plate that's awkward to track in the freezer between sessions. For genuinely high-throughput labs — those running 48+ samples per session consistently — plates are the right choice. For variable-throughput labs, strips are more economical.

Skirted vs Semi-Skirted vs Unskirted

This detail matters more than most labs realize before they get burned by it.

Format	Description	Best For	Watch Out For
Fully Skirted	Rigid frame extends full height around all 4 sides	Automated liquid handlers, robotic systems, plate stackers	Some thermal cyclers can't accommodate the extra height — check your cycler's spec
Semi-Skirted	Partial frame on one or two sides for orientation	Most manual lab workflows — best all-around compatibility	Less stable than fully skirted on automated platforms
Unskirted	No frame — flexible, fits most thermal cycler blocks directly	Thermal cyclers with fixed-height lids, highest thermal efficiency	Flimsy — easy to warp if handled roughly, harder to stack

The compatibility check you must do before ordering plates: Open your thermal cycler's manual and look up "consumable compatibility" or "recommended plate format." Most cyclers list the exact skirt height and well profile they accept. Ordering plates without checking costs you a box of unusable plates and a week of waiting for replacements.

Cap Types: Flat, Domed, and Optical

Cap selection is where labs make the most expensive mistakes — specifically by using non-optical caps on qPCR instruments.

Cap Type	Best For	Works for qPCR?	Notes
Flat Cap	Standard conventional PCR	No	Most common, lowest cost, easy to write on
Domed Cap	Low-volume reactions, condensation reduction	No — dome scatters light	Creates more internal volume above the reaction to reduce condensation on cap interior
Optical Flat Cap	qPCR / real-time PCR — any fluorescence detection	Yes — mandatory	Optically clear, precisely flat for uniform light transmission across the plate
Optical Adhesive Film	96-well and 384-well qPCR plates	Yes	Fastest to apply, lowest profile, reduces evaporation. Use heat sealer for best results.

The qPCR rule that cannot be broken: Any PCR run where you're measuring fluorescence — SYBR Green, TaqMan, probe-based detection — requires optically clear caps or film. A flat non-optical cap absorbs or scatters the excitation light. Your detector reads near-zero signal regardless of how much amplification is actually occurring. This is not a sensitivity issue. It produces a completely flat amplification curve — the instrument literally cannot see the reaction.

If your lab runs both conventional PCR and qPCR, keep both cap types in stock and label them clearly. Mixing them up is one of the most common and frustrating sources of "failed qPCR" that turns out to be a consumable issue, not a biology issue.

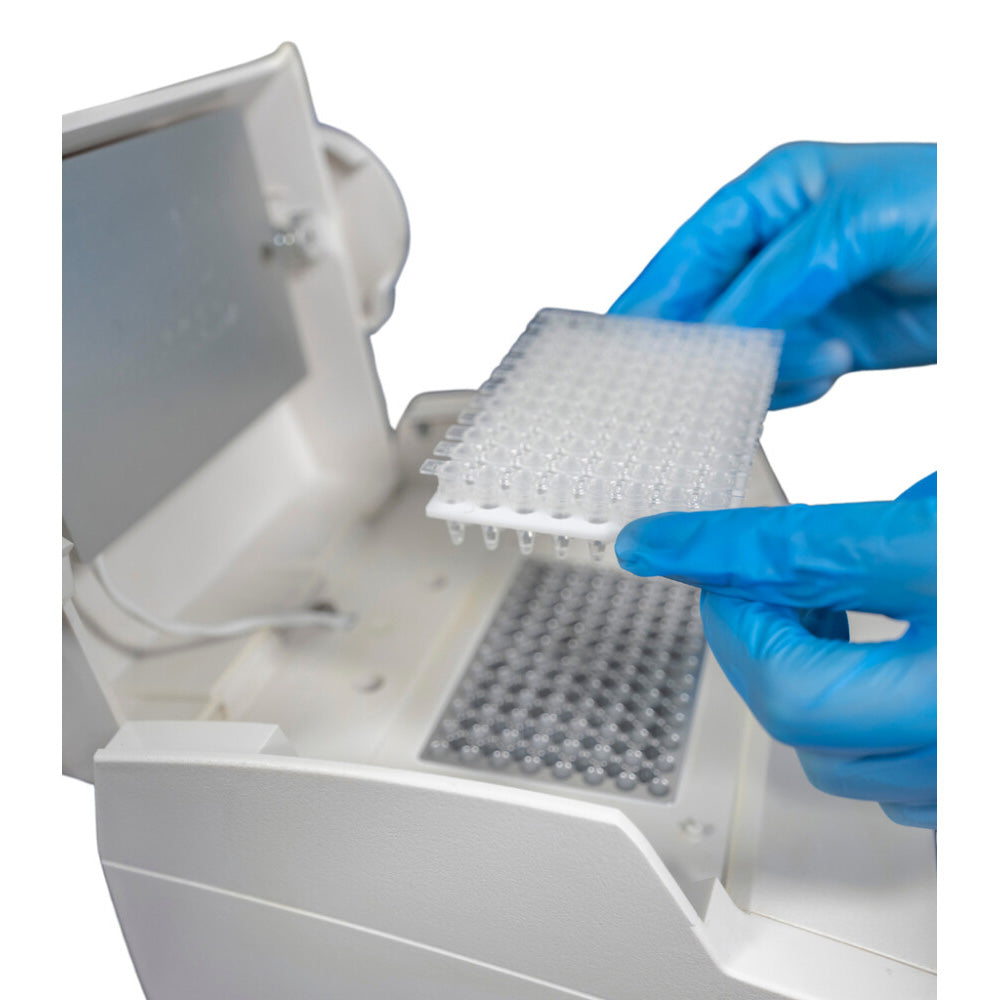

Thermal Cycler Compatibility: The Check You Must Do First

Every thermal cycler has a block format — the physical dimensions and geometry of the wells that hold your consumables. Not all PCR tubes and plates fit all thermal cyclers.

Key Compatibility Factors

• Well shape: Most modern cyclers use a tapered conical well that mates with standard 0.2mL tube geometry. Some older cyclers use a flat-bottomed well. If your tube has a conical bottom and the well is flat, there's an air gap between the tube and the block — poor thermal contact, inconsistent results.
• Heated lid clearance: The lid that presses down on your tubes during cycling applies a specific amount of pressure. Tubes that are too tall or caps that are too thick will hit the lid before it closes fully — or worse, will be crushed. Check the maximum height spec for your cycler's heated lid.
• Block footprint: All 96-well blocks use the ANSI/SBS standard footprint (127.76mm × 85.48mm). But the well depth, spacing, and profile vary. Most plates work across most cyclers, but verify before ordering in bulk.
• Well volume: Standard wells hold 0.2mL reactions. Some cyclers have 0.1mL well formats for low-volume applications — these require specialized low-profile plates and caps.

The practical approach: Run one box of tubes or one plate before ordering in bulk. Set up a known positive control reaction in the new format and compare against your established protocol results. If Ct values shift by more than 0.5 cycles or efficiency drops below 90%, the format has a compatibility issue with your cycler.

Cost-Per-Reaction Analysis

Format choice has a real cost impact that compounds over thousands of reactions per year. Here's the breakdown.

Format	Unit Price (typical)	Reactions per Unit	Cost per Reaction	Annual Cost (5,000 reactions)
Individual tubes (bag of 1,000)	$85–150	1,000	$0.09–0.15	$450–750
8-strip tubes (pack of 125 strips)	$55–100	1,000	$0.06–0.10	$300–500
96-well plates (pack of 50)	$150–300	4,800	$0.03–0.06	$150–300

A high-throughput lab running 5,000 reactions per year saves $300–450 per year switching from individual tubes to plates. Over 5 years that's $1,500–2,250 — enough to fund a meaningful consumables upgrade elsewhere in the lab. For labs running 50,000+ reactions annually, the savings are proportionally larger.

However: factor in waste. A lab running 20-sample assays on 96-well plates wastes 76 wells per plate. At $0.05 per well, that's $3.80 of wasted plate per run. Over 100 runs per year that's $380 of waste — more than you'd save versus strips. Do the math for your actual sample counts before switching to plates.

DNase/RNase-Free Certification: When It's Mandatory

PCR tubes and plates are manufactured from polypropylene using processes that can introduce contamination — mold release agents, nucleases, PCR inhibitors, human genomic DNA. For most applications, trace contamination doesn't affect results. For sensitive applications, it destroys them.

Always use certified DNase/RNase-free tubes for:

• Any RNA detection (RT-PCR, RT-qPCR) — RNase contamination degrades template before you even start
• Low-copy-number targets — a contaminating DNA template can generate false-positive amplification
• Clinical diagnostics — regulatory compliance often requires certified consumables with lot-specific certification records
• Forensic and food safety PCR — any application with legal or regulatory implications

Non-certified tubes are acceptable for: Standard cloning PCR with abundant template, colony screening, teaching lab demonstrations, any amplification where template is in large excess and contamination is detectable through controls.

The cost difference between certified and non-certified is typically $0.01–0.03 per tube. For sensitive work, it's never worth cutting corners here.

Frequently Asked Questions

Can I use standard microcentrifuge tubes instead of PCR tubes?

No. Standard microcentrifuge tubes have walls 2–3x thicker than thin-wall PCR tubes. The extra thickness acts as insulation, slowing thermal transfer between the block and your sample. The result is incomplete denaturation, poor annealing, and failed or inconsistent amplification. Always use purpose-built thin-wall PCR tubes.

Do I need optical caps for qPCR?

Yes — this is mandatory, not optional. Any PCR run with fluorescence detection (SYBR Green, TaqMan, probe-based assays) requires optically clear, flat-top caps or optical adhesive film. Non-optical caps scatter or absorb the excitation light, producing a flat amplification curve regardless of actual amplification. Your instrument cannot detect the reaction at all.

What's the difference between skirted, semi-skirted, and unskirted plates?

Skirting refers to the rigid frame around the outside of the plate. Fully skirted plates are rigid and compatible with automated systems, but may not fit in some thermal cyclers with tight lid clearance. Semi-skirted plates balance stability and cycler compatibility. Unskirted plates are flexible and thermally efficient but fragile. Always check your cycler's compatible plate format before ordering.

Can I use the same PCR plates for both conventional and real-time PCR?

Only if the plates have optical-grade wells and you use optical caps or film. Many 96-well plates are sold as "PCR plates" for conventional use and lack the optical clarity needed for qPCR. Plates marketed specifically as qPCR or real-time PCR plates are manufactured to tighter optical tolerance standards. Check the product spec before substituting.

How do I choose between 96-well plates and strips?

Count your average samples per run. Consistently running 48+ samples per session → plates win on cost and setup speed. Running variable sample counts below 48 per session → strips are more economical because you avoid wasting unused wells. For labs that do both, stock both formats and use them situationally.

The Right Format Runs the Right Reaction

Individual tubes for flexibility, strips for mid-throughput efficiency, plates for high-volume standardized workflows. The wall thickness, cap type, and cycler compatibility matter as much as the format itself — get those details right and your PCR reagents do their job instead of compensating for a consumable mismatch.

For the broader context on tubes and vials across your lab, see our Lab Tubes & Vials Guide — the pillar page covering every tube type from centrifuge tubes to cryovials to chromatography vials.
