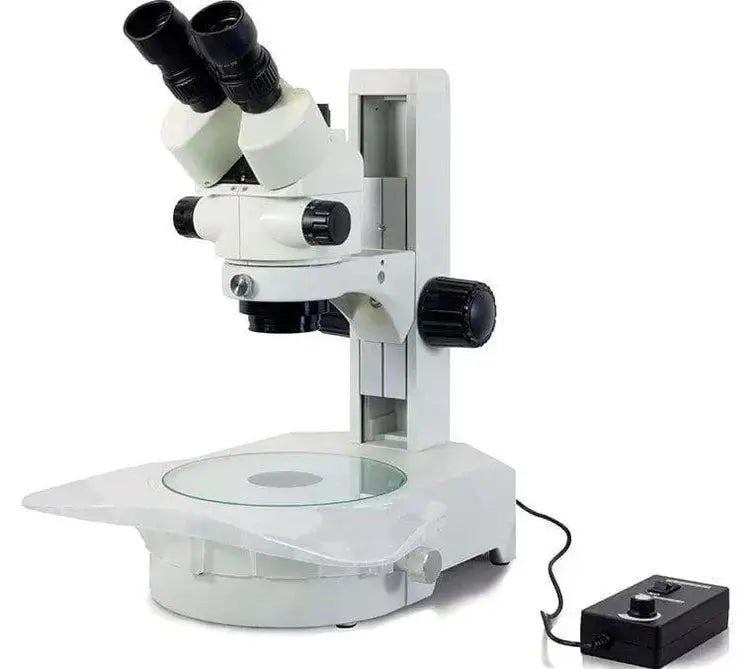

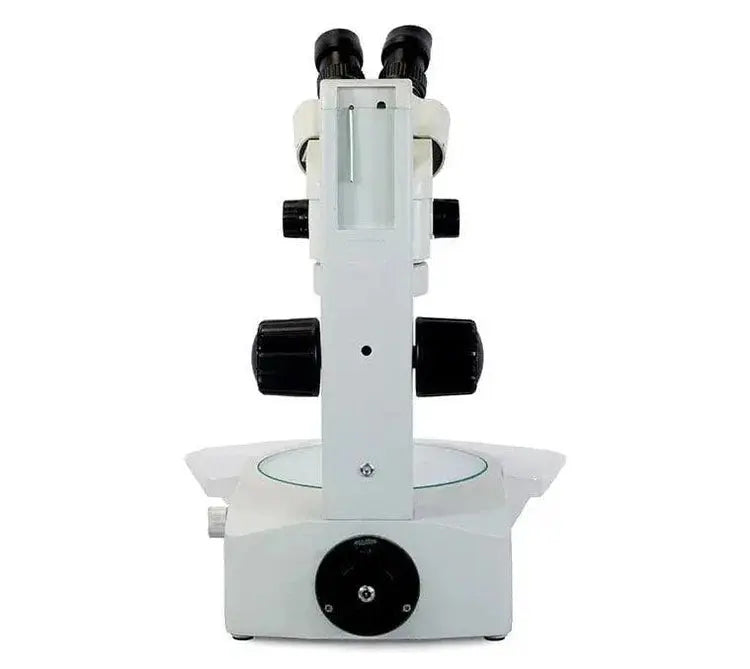

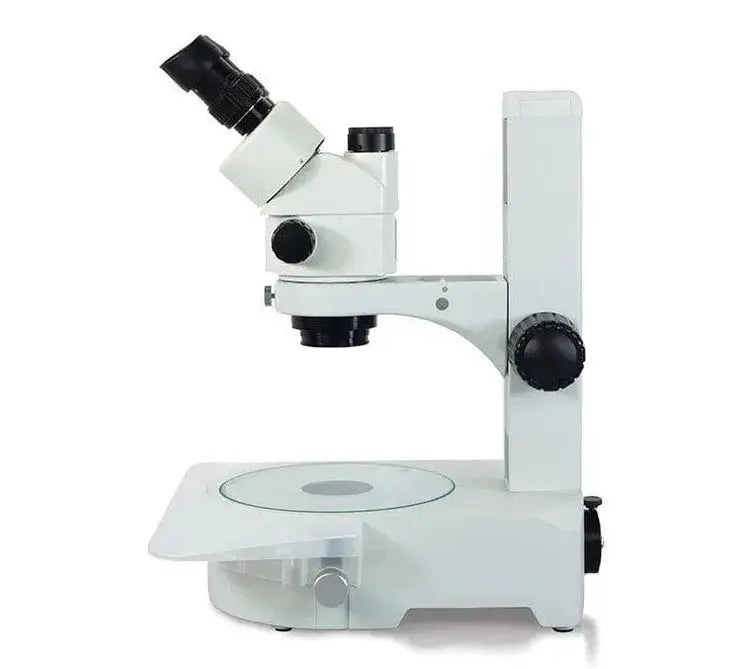

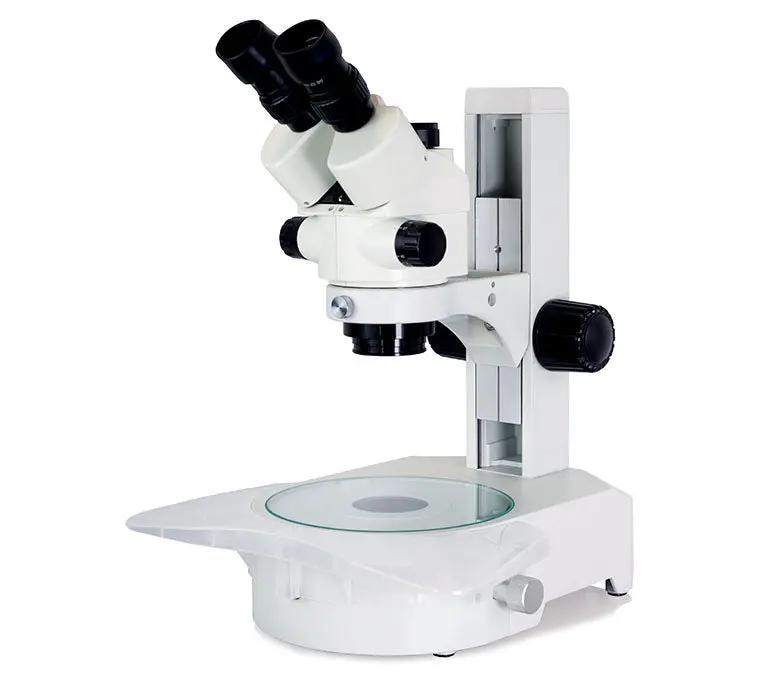

The Z4 Zoom Trinoc Microscope combines 7×–45× zoom optics with an Embryo-GLO LED stand and precision reticle for embryo handling and micromanipulation. Z4M-TZM7-EML3 features smooth magnification control and tilt mirror for optimal illumination angles.
Specifications
| Specification | Detail |
|---|---|
| Magnification | 7×–45× (0.7×–4.5× zoom) |
| Stand | Embryo-GLO dual LED with adjustable intensity |
| Head | Trinocular phototube with 360° rotation |
| Reticle | Graduated glass for measurement and alignment |
| Tilt Mirror | 45° adjustable for reflecting light |
| Working distance | 101.6 mm |
| Field of view | 20 mm |
| Illumination | Dual LED >20,000 hours |
| Stand height | 12″ adjustable column |
| Construction | Aluminum alloy body |
Compare the Z4 Zoom Stereo Family
| Model | Head | Zoom | Stand | Best for |
|---|---|---|---|---|
| Z4M-BZM7-7LL3 | Binocular | 7×–45× | Dual-LED pole | General stereo work |
| Z4M-TZM7-7LL3 | Trinocular | 7×–45× | Dual-LED pole | Camera-ready imaging |
| Z4M-BZM7-EML3 | Binocular | 7×–45× | Embryo-GLO + reticle | Embryo transfer / IVF |
| Z4M-TZM7-EML3 (this model) | Trinocular | 7×–45× | Embryo-GLO + reticle | IVF + documentation |
| Z4M-BZM7-PA77 | Binocular | 3.5×–45× | Flex-arm (no light) | Large-part inspection |
All Z4 Zoom models offer continuous zoom with WF10× eyepieces.
Applications
The integrated reticle enhances measurement accuracy, while the tilt mirror adapts to various lab lighting conditions. Z4M-TZM7-EML3 is ideal for IVF labs, embryology research, and micromanipulation workflows.
Frequently Asked Questions
What magnification does the Z4M-TZM7-EML3 provide?
The LW Scientific Z4 Zoom Embryo Microscope Z4M-TZM7-EML3 offers 7×–45× magnification.
Is the Z4M-TZM7-EML3 camera-ready?
Yes. The Z4M-TZM7-EML3 has a trinocular camera port, so you can attach a microscope camera for imaging and documentation while viewing through the eyepieces.
What is the Z4M-TZM7-EML3 designed for?
The Z4M-TZM7-EML3 is designed for embryo transfer and IVF procedures.
Parts and accessories for the Z4 Zoom Embryo Microscope
LW Scientific lists these 10 part numbers for Z4M-TZM7-EML3:
| Part number | Part | Type | Price |
|---|---|---|---|
| Z4E-1020-30HP | 10x/20 mm High-Point Stereo Eyepiece | Microscope Eyepieces | $70.80 |
| Z4E-1020-WRHP | 10x/20 mm High-Point Stereo Eyepiece with Reticle | Microscope Eyepieces | $118.80 |
| MSE-1615-3077 | 16x/15 mm Eyepiece, 30 mm | Microscope Eyepieces | $60.00 |
| MSE-2012-30HP | 20x/12 mm Eyepiece, 30 mm | Microscope Eyepieces | $70.80 |
| Z4H-BSF7-77SE | Z4 Zoom Binocular Head with 10x Eyepieces | Microscope Heads & Camera Tubes | $1,000.00 |
| Z4H-TRI7-77SE | Z4 Zoom Trinocular Head with 10x Eyepieces | Microscope Heads & Camera Tubes | $1,400.00 |
| Z4P-LNS7-050X | 0.5x Auxiliary Lens for Z4 | Stereo Microscope Stands, Arms & Lenses | $130.00 |
| DMB-BSED-7LL3 | Dual-LED Stereo Stand, 76 mm Focus Rack | Stereo Microscope Stands, Arms & Lenses | $500.00 |
| Z4B-EMBR-77L3 | Embryo-GLO Stand with Tilt-Mirror Illumination | Stereo Microscope Stands, Arms & Lenses | $1,500.00 |
| Z3B-BMS7-PA77 | Pneumatic Flex Arm on C-Clamp, 76 mm Head Holder | Stereo Microscope Stands, Arms & Lenses | $1,000.00 |
Browse by type: Microscope Eyepieces, Microscope Heads & Camera Tubes, Stereo Microscope Stands, Arms & Lenses.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
