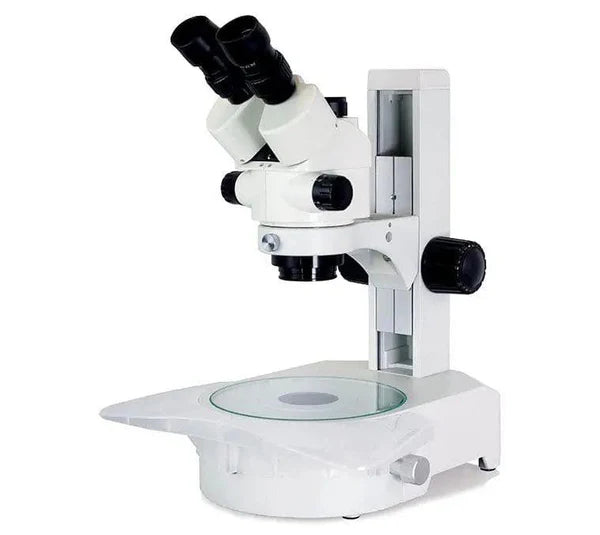

The LW Scientific embryo zoom microscope Z4M-BZM7-EML3 improves in vitro fertilization with precision optics designed for embryo transfer procedures. This advanced embryo zoom microscope delivers 7×–45× continuous magnification on the innovative Embryo-GLO LED stand. The integrated tilt mirror and built-in reticle ensure accurate embryo size measurement. Veterinary and clinical fertility programs achieve excellent visualization during critical reproductive procedures.
Specifications
| Specification | Detail |
|---|---|
| Magnification | 7×–45× continuous zoom range |
| Eyepieces | 10× widefield with measurement reticle |
| Working distance | 100 mm |
| Illumination | Embryo-GLO LED with variable intensity |
| Mirror | Dual-sided tilt (clear and frosted surfaces) |
| Stage | Large plate for Petri dish placement |
Compare the Z4 Zoom Stereo Family
| Model | Head | Zoom | Stand | Best for |
|---|---|---|---|---|
| Z4M-BZM7-7LL3 | Binocular | 7×–45× | Dual-LED pole | General stereo work |
| Z4M-TZM7-7LL3 | Trinocular | 7×–45× | Dual-LED pole | Camera-ready imaging |
| Z4M-BZM7-EML3 (this model) | Binocular | 7×–45× | Embryo-GLO + reticle | Embryo transfer / IVF |
| Z4M-TZM7-EML3 | Trinocular | 7×–45× | Embryo-GLO + reticle | IVF + documentation |
| Z4M-BZM7-PA77 | Binocular | 3.5×–45× | Flex-arm (no light) | Large-part inspection |
All Z4 Zoom models offer continuous zoom with WF10× eyepieces.
Applications
User-adjustable mirror angles enable indirect lighting optimization for individual preferences. The large stage plate accommodates standard Petri dishes, streamlining laboratory workflow efficiency. This Z4M-BZM7-EML3 significantly improves morphological assessment accuracy. Veterinary and clinical embryo transfer programs report enhanced fertility rates when utilizing this advanced microscopy system for reproductive medicine applications.
Frequently Asked Questions
What magnification does the Z4M-BZM7-EML3 provide?
The LW Scientific Z4 Zoom Embryo Microscope Z4M-BZM7-EML3 offers 7×–45× magnification.
What viewing head does the Z4M-BZM7-EML3 have?
The Z4M-BZM7-EML3 has a binocular head.
What is the Z4M-BZM7-EML3 designed for?
The Z4M-BZM7-EML3 is designed for embryo transfer and IVF procedures.
Parts and accessories for the Z4 Zoom Embryo Microscope
LW Scientific lists these 10 part numbers for Z4M-BZM7-EML3:
| Part number | Part | Type | Price |
|---|---|---|---|
| Z4E-1020-30HP | 10x/20 mm High-Point Stereo Eyepiece | Microscope Eyepieces | $70.80 |
| Z4E-1020-WRHP | 10x/20 mm High-Point Stereo Eyepiece with Reticle | Microscope Eyepieces | $118.80 |
| MSE-1615-3077 | 16x/15 mm Eyepiece, 30 mm | Microscope Eyepieces | $60.00 |
| MSE-2012-30HP | 20x/12 mm Eyepiece, 30 mm | Microscope Eyepieces | $70.80 |
| Z4H-BSF7-77SE | Z4 Zoom Binocular Head with 10x Eyepieces | Microscope Heads & Camera Tubes | $1,000.00 |
| Z4H-TRI7-77SE | Z4 Zoom Trinocular Head with 10x Eyepieces | Microscope Heads & Camera Tubes | $1,400.00 |
| Z4P-LNS7-050X | 0.5x Auxiliary Lens for Z4 | Stereo Microscope Stands, Arms & Lenses | $130.00 |
| DMB-BSED-7LL3 | Dual-LED Stereo Stand, 76 mm Focus Rack | Stereo Microscope Stands, Arms & Lenses | $500.00 |
| Z4B-EMBR-77L3 | Embryo-GLO Stand with Tilt-Mirror Illumination | Stereo Microscope Stands, Arms & Lenses | $1,500.00 |
| Z3B-BMS7-PA77 | Pneumatic Flex Arm on C-Clamp, 76 mm Head Holder | Stereo Microscope Stands, Arms & Lenses | $1,000.00 |
Browse by type: Microscope Eyepieces, Microscope Heads & Camera Tubes, Stereo Microscope Stands, Arms & Lenses.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
