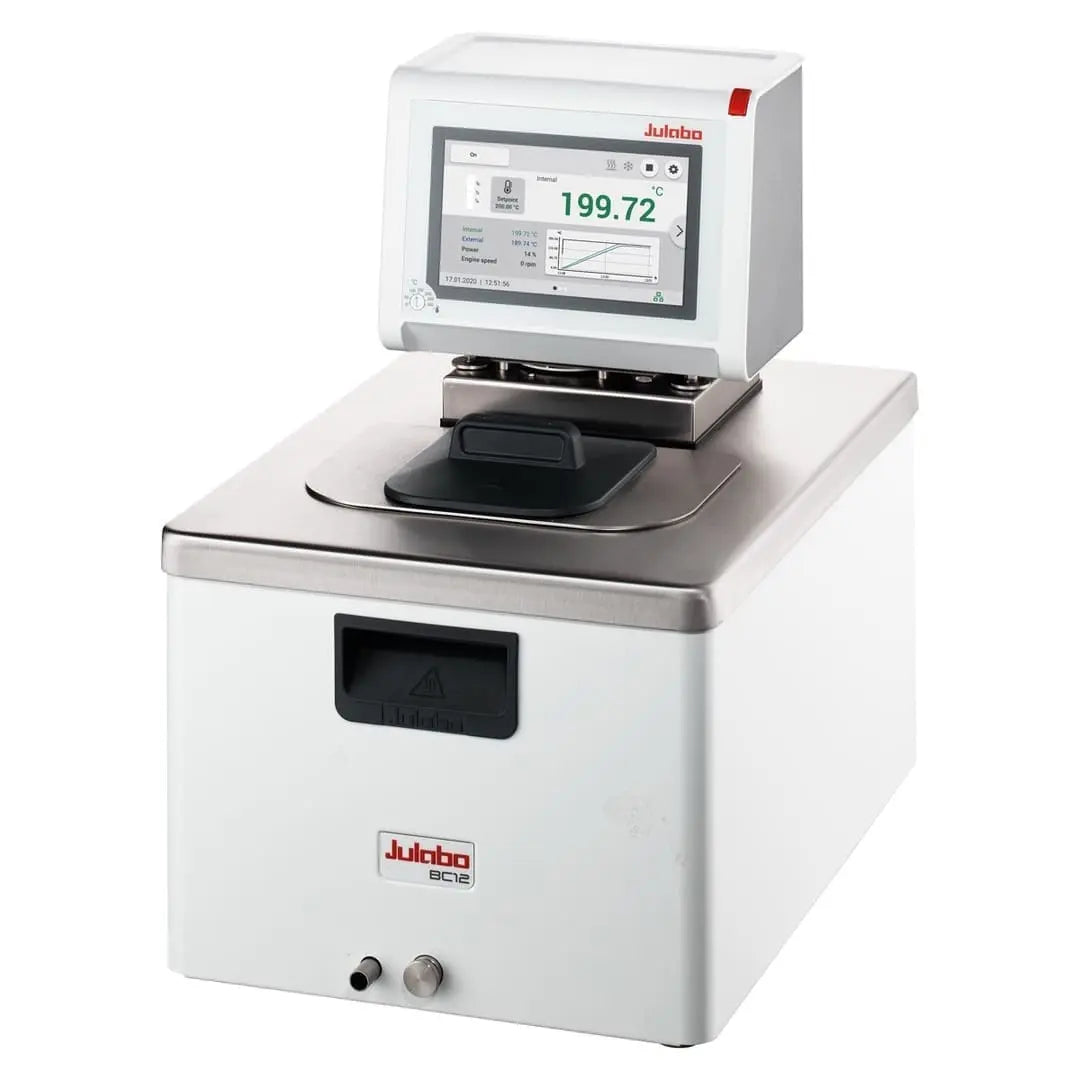

Julabo MAGIO MX-BC12 Heating Circulator | +20 to +300 °C 12 L Bath Circulator 60404
Julabo MAGIO MX-BC12 Heating Circulator | +20 to +300 °C 12 L Bath Circulator 60404
Couldn't load pickup availability
Julabo MAGIO MX-BC12 Overview
Julabo MAGIO MX-BC12 is a high-temperature heating circulator delivering bath and external control from +20 to +300 °C. A 3 kW heater drives fast warm-up across a 12 L insulated stainless steel bath supplied with a lid. Labs reach for this ceiling when water-range baths fall short of the process temperature.
PID control with Intelligent Cascade Control holds ±0.01 °C through long elevated-temperature runs. An adjustable pressure/suction pump moves 16 to 31 L/min at up to 13.3 psi. Strong circulation feeds external loops, jacketed vessels, and high-resistance circuits without losing setpoint.
A high-resolution color TFT touchscreen shows three configurable data views with on-screen help. Pt100 input allows external-sensor control of a reactor, while USB, RS232/RS485, Ethernet, and Modbus TCP/IP handle logging and automation. A built-in cooling coil supports counter-cooling with tap water for faster turnaround.
Specifications
| Product Type | Heating Circulator |
|---|---|
| Working Temperature Range | +20 to +300 °C |
| Temperature Stability | ±0.01 °C |
| Heater Capacity | 3 kW |
| Temperature Control | PID with Intelligent Cascade Control |
| Pump | Adjustable pressure/suction centrifugal, 16–31 L/min, 3.5–13.3 psi |
| Pump Connections | M16×1 male, 8/12 mm hose barbs |
| Bath Volume | 8.5–12 L (12 L bath tank and lid included) |
| Bath Opening (W×L/D) | 8.7 × 5.9 / 7.9 in |
| Immersion Depth | 200 mm |
| Unit Dimensions (W×L×H) | 13 × 19.3 × 18.5 in |
| Weight | 32.2 lb |
| Interface | Color TFT touchscreen; USB-B, RS232/RS485, Ethernet, USB-A (data logging); Pt100 port; Modbus TCP/IP |
| Cooling | Integrated cooling coil (tap-water counter-cooling) |
| Electrical | 200–230 V / 50–60 Hz, NRTL marked (US/Canada) |
| Country of Origin | Germany |
| Ships From | USA |
Available Sizes and Configurations
| SKU | Description | Pack |
|---|---|---|
| 60404 | MAGIO MX-BC12 Heating Circulator with 12 L Bath & Lid, 200–230 V | Each |
Laboratory Applications
The MAGIO MX-BC12 targets high-temperature work that exceeds water and standard heating baths. Its +300 °C ceiling suits oil baths, elevated-temperature viscometry, and polymer or resin cure testing. Reactor and distillation setups draw on the strong pump and Pt100 control for stable external temperatures.
Materials, petrochemical, and QC labs program elevated profiles through the touchscreen for repeatable runs. Pharmaceutical and process groups integrate the unit via Ethernet and Modbus TCP/IP for automated control. A 12 L insulated bath accommodates larger samples and bulkier immersion fixtures.
Ordering & Bulk Pricing
Order the MAGIO MX-BC12 (SKU 60404) with its 12 L bath and lid from LabSupplies.com, an authorized Julabo dealer. Each unit ships from USA inventory and carries the standard Julabo manufacturer warranty. Volume and tiered quantity discounts apply to multi-unit and facility orders.
Product Documentation
Frequently Asked Questions
What temperature range and stability does the MX-BC12 reach?
It heats from +20 to +300 °C and holds ±0.01 °C with PID and Intelligent Cascade Control. The unit warms above ambient and has no active refrigeration.
How large is the bath, and what comes with the unit?
The MX-BC12 ships with a 12 L insulated stainless steel bath tank and lid. Usable bath volume runs 8.5 to 12 L for immersion or external circulation.
Can it control an external reactor and integrate with automation?
Yes. A Pt100 port enables external-sensor control, and the pressure/suction pump sustains flow to a connected loop. Ethernet, USB, RS232/RS485, and Modbus TCP/IP support logging and remote operation.
