Julabo CORIO CP-BC6 Heating Circulator | +20 to +200 °C Lab Bath Circulator 60402
Julabo CORIO CP-BC6 Heating Circulator | +20 to +200 °C Lab Bath Circulator 60402
Couldn't load pickup availability

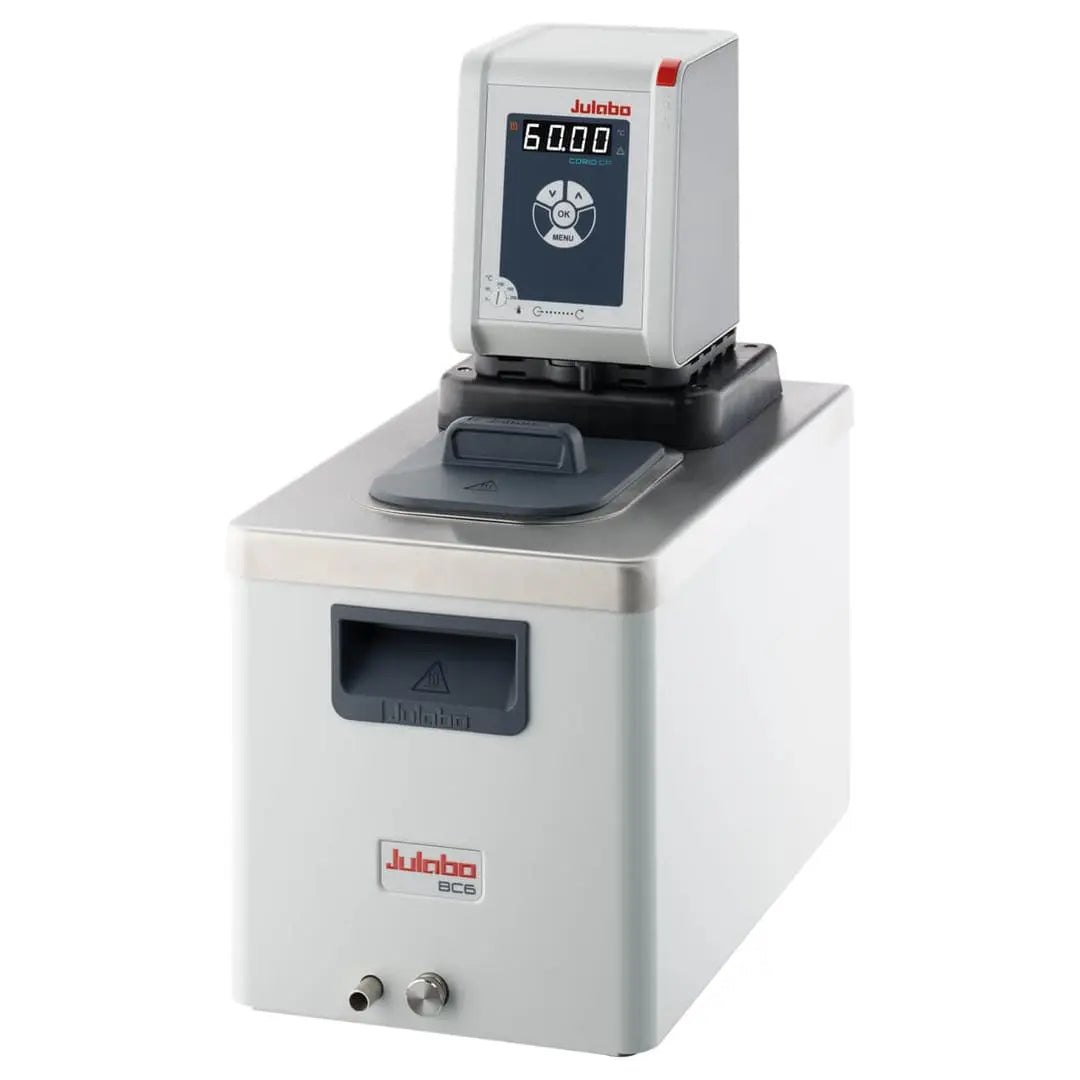

Julabo CORIO CP-BC6 Overview
Julabo CORIO CP-BC6 is a professional heating circulator delivering precise above-ambient temperature control from +20 to +200 °C. A 2 kW heater drives fast warm-up for an insulated stainless steel bath holding 4.5 to 6 L. Labs choose this reach for reaction warming, viscometry, and sample conditioning.
PID control with Active Cooling Control holds ±0.02 °C, so setpoint stays stable through long routine runs. An adjustable centrifugal pump moves 8 to 27 L/min at 1.5 to 10.2 psi. Quick change-over directs flow to the internal bath or a connected external loop in seconds.
The front interface, bright LED display, and integrated timer (0–999 min) make daily operation straightforward. USB-B, RS232, and USB-A ports support PC control and data logging for documented work. A low-level alarm and Class III (FL) rating per DIN 12876-1 keep flammable-fluid work safe.
Specifications
| Product Type | Heating Circulator |
|---|---|
| Working Temperature Range | +20 to +200 °C |
| Temperature Stability | ±0.02 °C |
| Heater Capacity | 2 kW |
| Temperature Control | PID with Active Cooling Control |
| Pump | Adjustable-speed centrifugal, 8–27 L/min, 1.5–10.2 psi |
| Pump Connections | M16×1 male, 8/12 mm hose barbs |
| Bath Volume | 4.5–6 L |
| Bath Opening (W×L/D) | 5.1 × 5.9 / 7.9 in |
| Unit Dimensions (W×L×H) | 9.4 × 17.3 × 18.5 in |
| Weight | 22 lb |
| Interface | USB-B, RS232, USB-A (data logging) |
| Display | LED |
| Bath Material | Insulated stainless steel, with drain port |
| Electrical | 200–230 V / 50–60 Hz, NRTL marked (US/Canada) |
| Safety Class | Class III (FL), DIN 12876-1 |
| Country of Origin | Germany |
| Ships From | USA |
Available Sizes and Configurations
| SKU | Description | Pack |
|---|---|---|
| 60402 | CORIO CP-BC6 Heating Circulator, 200–230 V | Each |
Laboratory Applications
The CP-BC6 supports reaction warming, distillation pre-heating, and constant-temperature baths in chemistry and materials labs. Its +200 °C ceiling suits viscometry, dissolution, and oil-bath applications that exceed water's range. Immersion use or external circulation lets one unit serve a vessel, jacket, or connected instrument.
Pharmaceutical and QC labs run documented, repeatable cycles through the PID controller and data-logging ports. Petrochemical and polymer testing benefit from the broad span and adjustable pump flow. Education and routine bench work gain from the compact footprint and front-panel simplicity.
Ordering & Bulk Pricing
Order the CORIO CP-BC6 as a single unit (SKU 60402) from LabSupplies.com, an authorized Julabo dealer shipping from USA inventory. Each circulator carries the standard Julabo manufacturer warranty. Volume and tiered quantity discounts apply to multi-unit and facility orders.
Product Documentation
Frequently Asked Questions
What temperature range and stability does the CP-BC6 reach?
It heats from +20 to +200 °C and holds ±0.02 °C using PID control. The unit warms above ambient only and has no active refrigeration.
Can the CP-BC6 control an external apparatus?
Yes. Its adjustable centrifugal pump (8–27 L/min, up to 10.2 psi) and quick change-over circulate fluid to an external loop or run the internal bath.
What voltage and bath size does it use?
The US/Canada version is NRTL marked at 200–230 V / 50–60 Hz. Its insulated stainless steel bath holds 4.5 to 6 L with a drain port.
