Julabo CORIO CP-600F Refrigerated/Heating Circulator | −35 to +200 °C External Temperature Control 60401
Julabo CORIO CP-600F Refrigerated/Heating Circulator | −35 to +200 °C External Temperature Control 60401
Couldn't load pickup availability

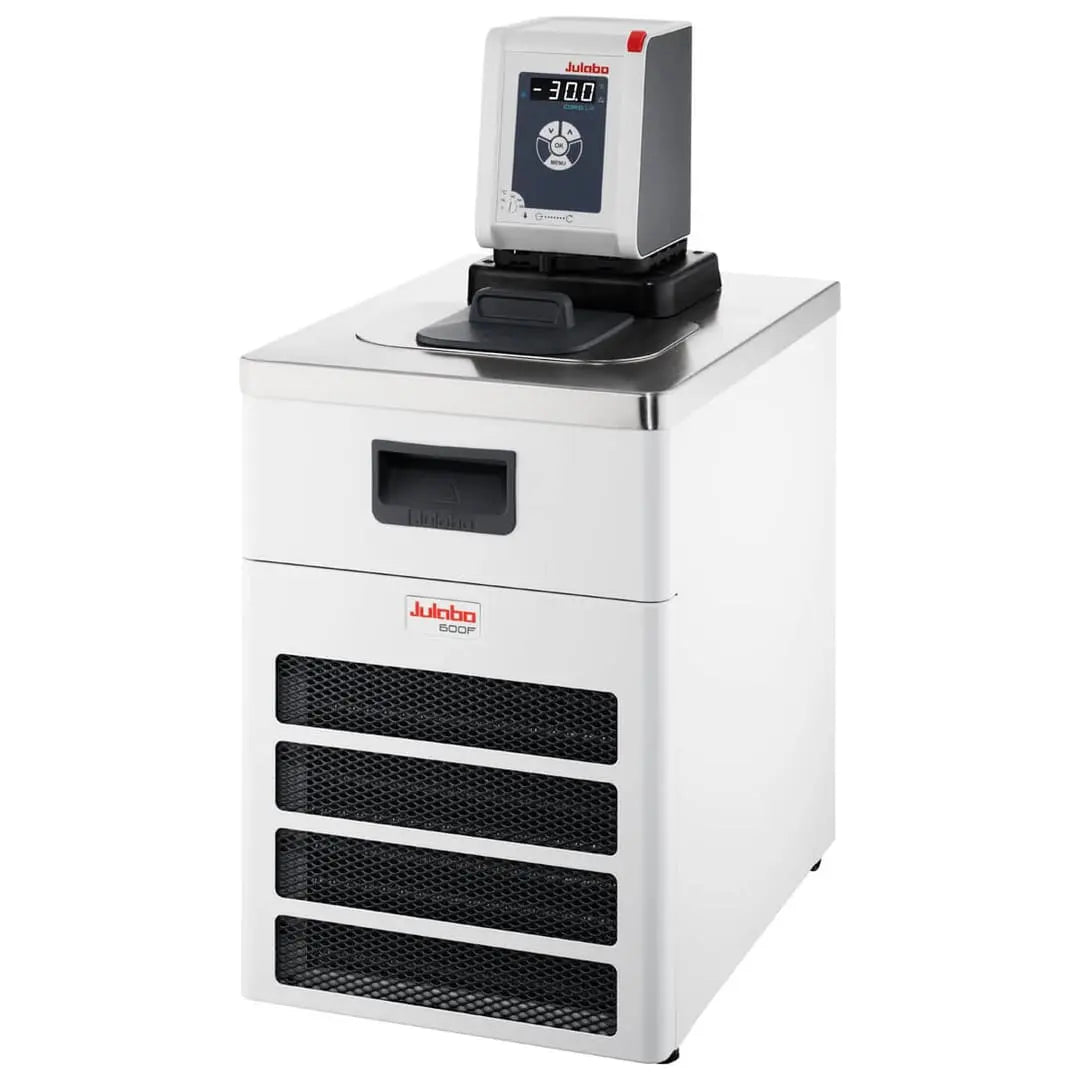

Julabo CORIO CP-600F Overview
Julabo CORIO CP-600F is a refrigerated/heating circulator engineered for demanding temperature control from −35 to +200 °C. Its 2 kW heater and high cooling capacity drive rapid heat-up and cool-down across a wide working span. Process chemists and materials labs rely on this reach for reactor jacketing, distillation, and accelerated testing.
Active Cooling Control and PID regulation hold setpoint to ±0.03 °C as ambient conditions shift. An adjustable centrifugal pump moves 8 to 27 L/min at up to 10.2 psi. Change-over between internal and external circulation takes seconds, so one unit covers immersion work and connected apparatus.
A stainless steel bath, recessed cooling coil, and front-mounted controls keep the workspace compact and serviceable. The lockable power plug, low-level alarm, and Class III (FL) rating per DIN 12876-1 support safe work with flammable fluids. USB-B, RS232, and USB-A ports enable PC control and data logging for regulated workflows.
Specifications
| Product Type | Refrigerated/Heating Circulator |
|---|---|
| Working Temperature Range | −35 to +200 °C |
| Temperature Stability | ±0.03 °C |
| Heater Capacity | 2 kW |
| Cooling Capacity | 600 W @ 20 °C · 440 W @ 0 °C · 270 W @ −10 °C · 160 W @ −20 °C |
| Temperature Control | PID with Active Cooling Control |
| Pump | Adjustable-speed centrifugal, 8–27 L/min, 1.5–10.2 psi |
| Pump Connections | M16×1 male, 8/12 mm hose barbs |
| Bath Volume | 5–7.5 L |
| Bath Opening (W×L/D) | 8.7 × 5.9 / 5.9 in |
| Unit Dimensions (W×L×H) | 13 × 18.5 × 27.2 in |
| Weight | 78.7 lb |
| Interface | USB-B, RS232, USB-A (data logging) |
| Display | LED |
| Electrical | 200–230 V / 50–60 Hz, NRTL marked (US/Canada) |
| Safety Class | Class III (FL), DIN 12876-1 |
| Country of Origin | Germany |
| Ships From | USA |
Available Sizes and Configurations
| SKU | Description | Pack |
|---|---|---|
| 60401 | CORIO CP-600F Refrigerated/Heating Circulator, 200–230 V | Each |
Laboratory Applications
The CORIO CP-600F suits process chemistry, jacketed-vessel control, distillation, and reflux temperature management. Its sub-ambient reach to −35 °C supports crystallization, exothermic reaction control, and low-temperature viscometry. Higher-temperature work to +200 °C covers thermal cycling and accelerated stability testing.
Materials, polymer, and QC labs connect the circulator to external apparatus through its adjustable pump and quick change-over. Pharmaceutical and biotech groups use the PID control and data-logging ports for documented, repeatable runs. Battery and electronics testing benefit from the wide span and stable setpoint under shifting loads.
Ordering & Bulk Pricing
Order the CORIO CP-600F as a single unit (SKU 60401) from LabSupplies.com, an authorized Julabo dealer shipping from USA inventory. Each circulator carries the standard Julabo manufacturer warranty. Volume and tiered quantity discounts apply to multi-unit and facility-wide orders.
Product Documentation
Frequently Asked Questions
What temperature range and stability does the CORIO CP-600F provide?
It controls fluid temperature from −35 to +200 °C and holds ±0.03 °C through PID regulation with Active Cooling Control.
Can the CP-600F drive external apparatus, or only the internal bath?
Both. An adjustable centrifugal pump (8–27 L/min, up to 10.2 psi) and quick change-over let it circulate to external loops or run as an immersion bath.
Which voltage and safety rating does the CP-600F carry?
The US/Canada version is NRTL marked and runs on 200–230 V / 50–60 Hz. It meets Class III (FL) under DIN 12876-1 for use with flammable bath fluids.
