Julabo CORIO CD-200F Refrigerated/Heating Circulator | −20 to +150 °C Lab Bath Circulator 60400
Julabo CORIO CD-200F Refrigerated/Heating Circulator | −20 to +150 °C Lab Bath Circulator 60400
Couldn't load pickup availability

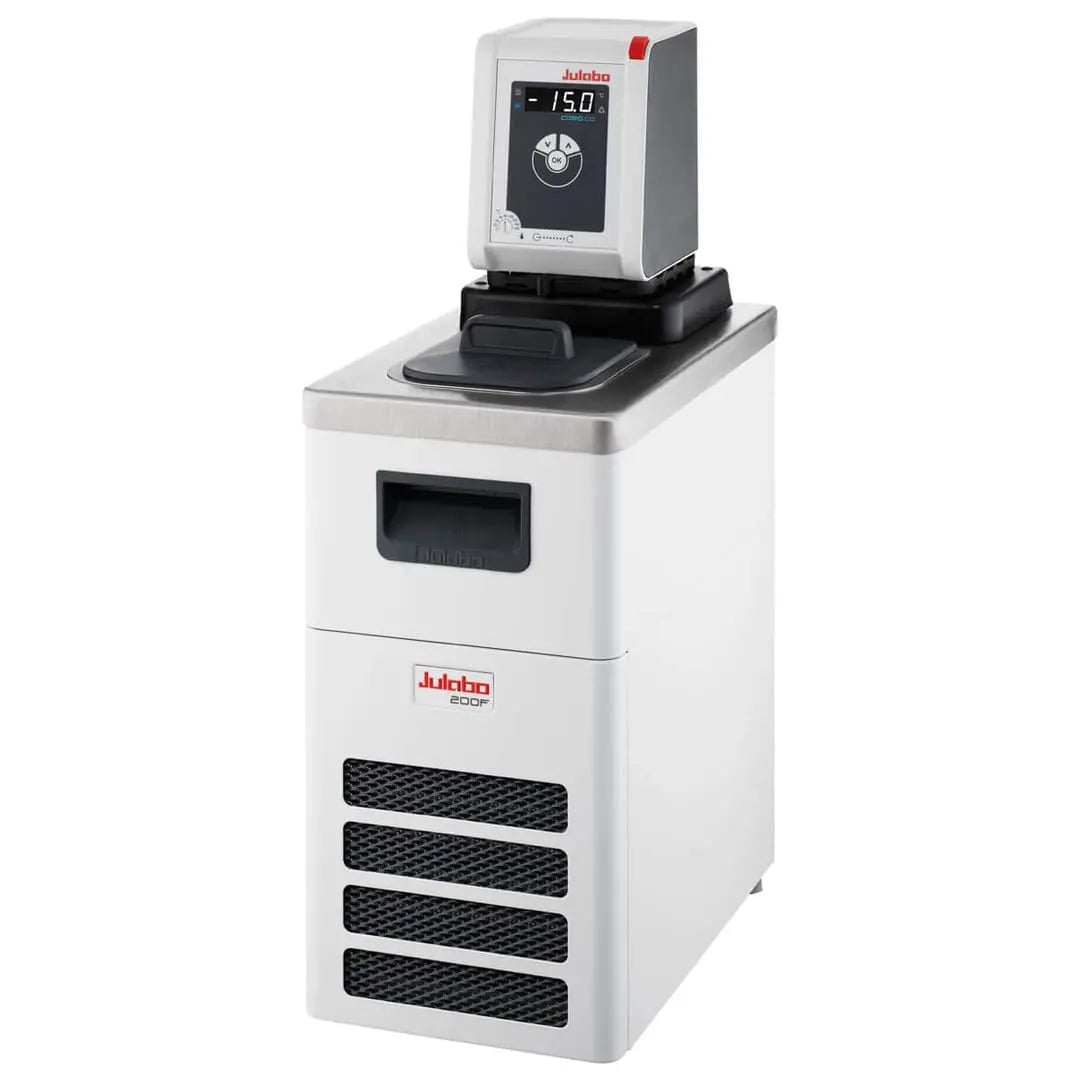

Julabo CORIO CD-200F Overview
Julabo CORIO CD-200F is a compact refrigerated/heating circulator for precise bath and external temperature control from −20 to +150 °C. A 1 kW heater and staged cooling system hold setpoint across routine sub-ambient and elevated work. Labs choose this range for viscometry, reaction vessels, and sample conditioning.
PID regulation delivers ±0.03 °C stability through extended runs. A centrifugal pump with flow diverter circulates fluid to the internal bath or an external loop. Change-over between modes takes seconds, so one unit serves immersion samples and connected apparatus.
An open bath and recessed cooling coil keep the workspace accessible and easy to service. The integrated timer and LED display simplify daily operation, while front and rear ventilation let units sit side by side. Match the bath fluid to your working range before filling.
Specifications
| Product Type | Refrigerated/Heating Circulator |
|---|---|
| Working Temperature Range | −20 to +150 °C |
| Temperature Stability | ±0.03 °C |
| Heater Capacity | 1 kW |
| Cooling Capacity | 220 W @ 20 °C · 170 W @ 0 °C · 130 W @ −10 °C · 60 W @ −20 °C |
| Temperature Control | PID |
| Pump | Centrifugal, with flow diverter (internal/external) |
| Pump Connections | M16×1 male, 8/12 mm hose barbs |
| Bath Fill Volume | Approx. 4 L |
| Controls | LED display, integrated timer |
| Electrical | 115 V / 60 Hz |
| Country of Origin | Germany |
| Ships From | USA |
Available Sizes and Configurations
| SKU | Description | Pack |
|---|---|---|
| 60400 | CORIO CD-200F Refrigerated/Heating Circulator, 115 V | Each |
Laboratory Applications
The CORIO CD-200F supports chemistry, materials, and QC labs working between −20 and +150 °C. Its sub-ambient reach suits crystallization, reaction control, and low-temperature viscometry. Heating to +150 °C covers dissolution, sample conditioning, and routine bath work.
External circulation lets the unit drive a jacketed vessel or connected instrument through its pump. Education and routine analytical labs gain from the compact footprint and simple controls. Pair the circulator with a compatible Julabo Thermal fluid matched to the application range.
Ordering & Bulk Pricing
Order the CORIO CD-200F (SKU 60400) from LabSupplies.com, an authorized Julabo dealer. Each unit ships from USA inventory and carries the standard Julabo manufacturer warranty. Volume and tiered quantity discounts apply to multi-unit and facility orders.
Product Documentation
Frequently Asked Questions
What temperature range and stability does the CORIO CD-200F provide?
It controls fluid from −20 to +150 °C and holds ±0.03 °C through PID regulation, with a 1 kW heater and cooling rated 220 W at 20 °C.
Can the CD-200F run external applications?
Yes. A centrifugal pump with flow diverter circulates fluid to an external loop or the internal bath, using M16×1 connections with 8/12 mm hose barbs.
Which bath fluid should I use?
Match the fluid to your working range. A colorless silicone such as Julabo Thermal C10 suits the unit's −20 to +150 °C span. Confirm compatibility before filling.
