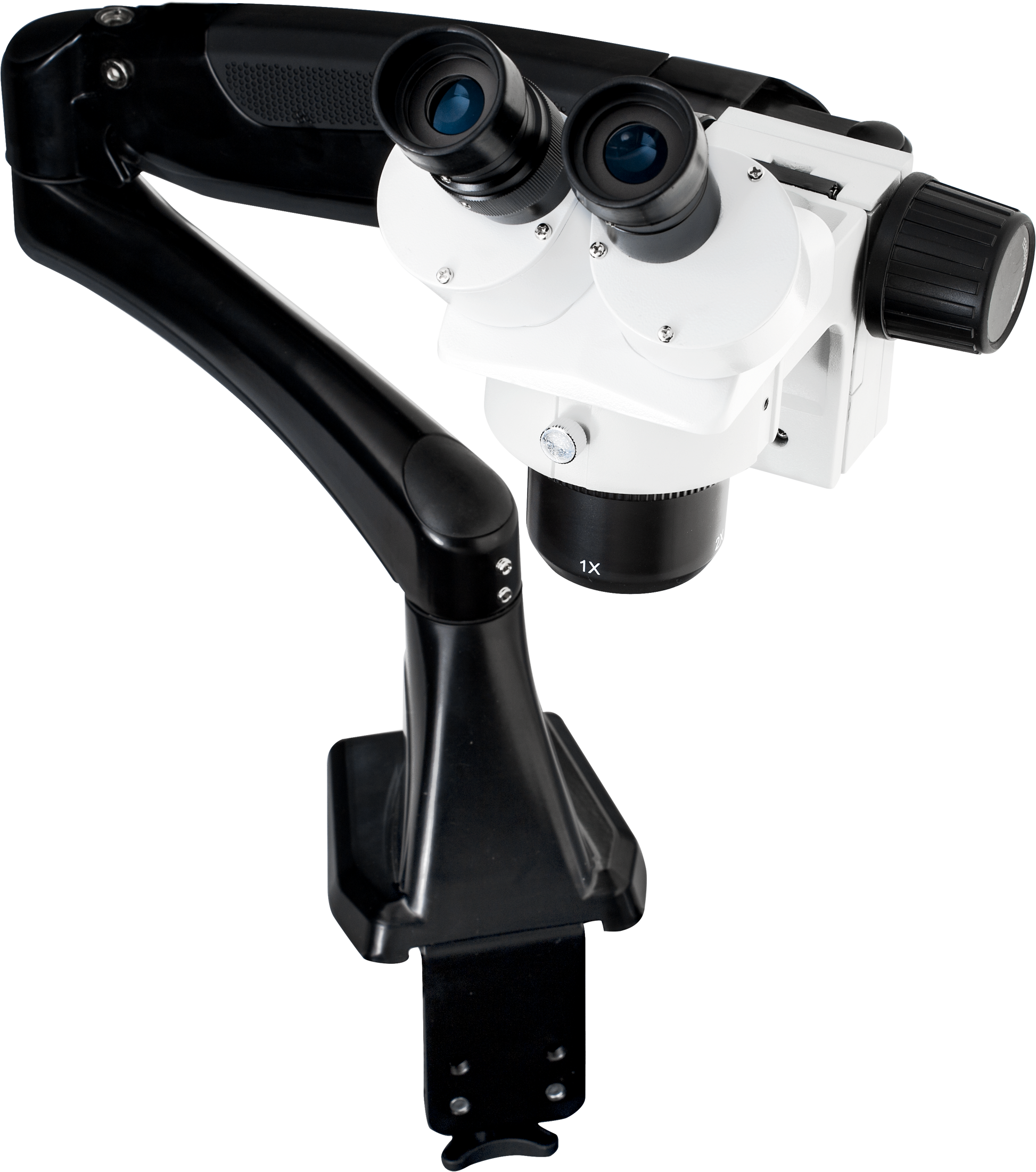

Experience excellent three-dimensional imaging with this dual mag stereoscope. Model DMM-S12N-PA77 features 10× and 20× magnification settings for versatile viewing. The pneumatic flex arm allows vertical, horizontal, and 360° positioning. Includes a 0.5× supplementary lens to double your field of view and extend working distance for hands-under workspace.
Specifications
| Specification | Detail |
|---|---|
| Magnification | 10×/20× dual settings |
| Eyepieces | 10×/20 widefield with 55-75 mm interpupillary adjustment |
| Objectives | 1×/2× paired objectives with 0.5× supplementary lens included |
| Flex Arm | Pneumatic with tension adjustment, 14.96" maximum radius |
| Mounting | Adjustable-width C-clamp (0-2" bench thickness) |
| Head | Binocular, 45° incline, 360° rotation |
| Construction | Aluminum alloy with acid-resistant finish |
Compare the DM Dual-Mag Stereo Family
| Model | Magnification | Stand | Illumination | Best for |
|---|---|---|---|---|
| DMM-S13N-7LL3 | 10× / 30× | Pole stand | Dual LED (top & bottom) | Everyday bench work with light |
| DMM-S13N-PL77 | 10× / 30× | Pole stand | None — add your own | Labs with existing lighting |
| DMM-S12N-PA77 (this model) | 10× / 20× | Flex-arm with C-clamp | None — add your own | Large parts & extended reach |
Applications
The dual mag stereoscope provides increased width, working distance, and depth of focus compared to standard models. Large optics deliver crisp, three-dimensional images ideal for dissecting, assembling, and inspecting. Rotate the magnification turret for instant switching between 10× and 20× power settings.
Frequently Asked Questions
What magnification does the DMM-S12N-PA77 provide?
The LW Scientific DM Dual-Mag Stereo Microscope DMM-S12N-PA77 offers 10×/20× magnification.
What viewing head does the DMM-S12N-PA77 have?
The DMM-S12N-PA77 has a binocular head.
What is the DMM-S12N-PA77 designed for?
The DMM-S12N-PA77 is designed for inspection, dissection, and QC work.
Parts and accessories for the DM Dual-Mag Stereo Microscope
LW Scientific lists these 11 part numbers for DMM-S12N-PA77:
| Part number | Part | Type |
|---|---|---|
| Z4E-1020-30HP | 10x/20 mm High-Point Stereo Eyepiece | Microscope Eyepieces |
| MSE-1615-3077 | 16x/15 mm Eyepiece, 30 mm | Microscope Eyepieces |
| MSE-2012-30HP | 20x/12 mm Eyepiece, 30 mm | Microscope Eyepieces |
| DMH-S12X-77NE | DM Dual-Mag 1x/2x Stereo Head with 10x Eyepieces | Microscope Heads & Camera Tubes |
| DMH-S13X-77NE | DM Dual-Mag 1x/3x Stereo Head with 10x Eyepieces | Microscope Heads & Camera Tubes |
| DMH-S24X-77NE | DM Dual-Mag 2x/4x Stereo Head with 10x Eyepieces | Microscope Heads & Camera Tubes |
| DMP-LNS7-050X | 0.5x Auxiliary Lens for DM | Stereo Microscope Stands, Arms & Lenses |
| DMB-BSEP-7777 | DM Pole-Mount Stand (No Light) | Stereo Microscope Stands, Arms & Lenses |
| DMB-BSED-7LL3 | Dual-LED Stereo Stand, 76 mm Focus Rack | Stereo Microscope Stands, Arms & Lenses |
| DMP-LNS7-PRTR | Lens Protector & Mounting Ring for DM | Stereo Microscope Stands, Arms & Lenses |
| Z3B-BMS7-PA77 | Pneumatic Flex Arm on C-Clamp, 76 mm Head Holder | Stereo Microscope Stands, Arms & Lenses |
Browse by type: Microscope Eyepieces, Microscope Heads & Camera Tubes, Stereo Microscope Stands, Arms & Lenses.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
