Urine Collection Systems for Clinical & Reference Labs

At LabSupplies.com, the right urine collection system is the one matched to the test ordered — a urine culture needs a sterile cup and a boric acid transport tube, a metabolic panel needs a preserved 24-hour container, and a workplace drug screen needs a tamper-evident cup with a temperature strip. Use the wrong container or miss the transport window and the result is a rejected specimen or a falsely positive culture. This buyer's guide walks through every urine collection format clinical and reference labs use, the CLSI transport and preservation rules that govern them, and how to match the system to the workflow.

Urine Collection Container Types

Start by matching the container to the test and the collection setting:

Container	Typical size	Sterile?	Primary use
Specimen cup	90 mL–4 oz (120 mL)	Sterile or non-sterile	Routine UA, culture (sterile), general collection
Clean-catch midstream kit	90–120 mL cup + wipes	Sterile	Culture & sensitivity, suspected UTI
Boric acid transport tube	~4–10 mL	Sterile	Preserved transport for culture
Vacuum UA transfer tube	~8 mL	Sterile	Closed transfer for automated urinalysis
24-hour container	3 L (with/without acid)	Non-sterile	Quantitative timed collection
Pediatric collection bag	100 mL adhesive bag	Sterile	Infants and non-toilet-trained children
Drug-test cup	90 mL + temp strip	Non-sterile, tamper-evident	Workplace / clinical drug screening

Our urine collection range includes Globe Scientific specimen cups and leak-resistant Tite-Rite containers (90 mL and 120 mL, sterile and non-sterile, several with integrated temperature strips and tab-seal patient ID), pneumatic-tube-safe designs, drug-test cups, and LW Scientific urinalysis reagent strips.

Preservation and Transport (CLSI GP16)

Urine is a living culture medium — bacteria multiply and chemistry shifts within hours at room temperature. CLSI GP16 (Urinalysis) is the governing consensus guideline, and its core rule is simple:

• Analyze or refrigerate within 2 hours of collection for an unpreserved specimen. Beyond that window, bacterial overgrowth inflates culture counts and degrades analytes.
• Use a chemical preservative when the 2-hour window cannot be met. Boric acid transport tubes inhibit bacterial overgrowth and hold a specimen culture-viable for roughly 48–72 hours at room temperature — the reason they are standard for send-outs to reference labs.
• Fill preservative tubes to the line. An incorrect urine-to-boric-acid ratio can itself inhibit organisms or under-preserve the sample, so tube fill volume matters.

For timed 24-hour collections, many analytes (for example certain metabolites and catecholamines) require an acid or other preservative added to the container in advance and refrigeration throughout collection. Always confirm the preservative and handling per ordered test. See our specimen collection and transport guide for cold-chain and packaging requirements.

Sterile vs Non-Sterile: Match to the Test

Sterility is driven by whether the specimen may be cultured:

• Sterile — required for urine culture and sensitivity, suspected UTI, and reference-lab microbiology. A clean-catch midstream technique with a sterile cup minimizes contamination from skin flora.
• Non-sterile (clean) — acceptable for routine dipstick and microscopic urinalysis where culture is not intended.

Many labs standardize on sterile cups across the board so any specimen stays culture-ready and collection errors drop — a small per-cup premium against the cost of a recollect.

Drug Testing and Chain of Custody

Urine drug screening has its own container requirements. A tamper-evident cup with an integrated temperature strip lets the collector confirm the specimen reads within the expected 32–38°C range immediately after voiding — an out-of-range temperature flags a possibly adulterated or substituted sample. Regulated federal testing follows strict chain-of-custody procedures under SAMHSA and DOT (49 CFR Part 40); workplace and clinical programs use the same cup design with documented custody controls. Stock cups with security seals, temperature strips, and clear patient-ID labeling for these workflows.

Urinalysis Reagent Strips and Reading

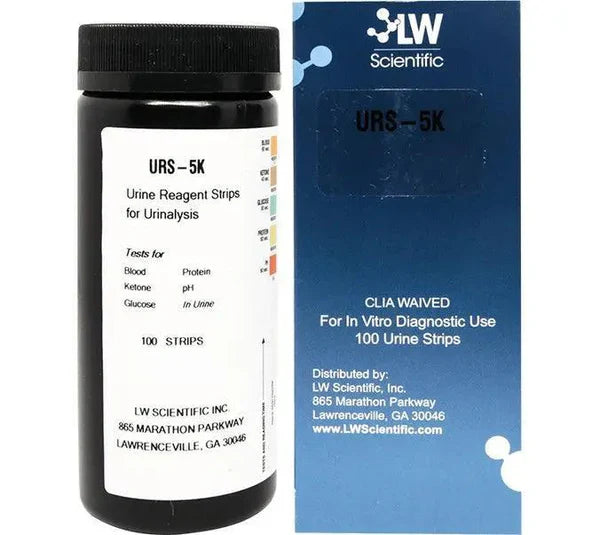

Once collected, routine urinalysis is read by reagent strip — either visually or on an analyzer. Match the strip's parameter panel to your test menu: single-analyte strips (glucose, ketone, blood) for targeted checks, or multi-parameter 5- and 10-panel strips for full routine urinalysis. LW Scientific URS reagent strips cover both, in 100-count vials. Keep strips sealed with desiccant and within date, and run controls per your QC policy. Full QC and consumable context is in our clinical lab supplies checklist.

Selecting the Right Urine Collection System

Workflow	Key requirement	Recommended system
Routine urinalysis (in-house)	Clean collection, fast read	Specimen cup + reagent strips
Urine culture / suspected UTI	Sterile, contamination control	Sterile clean-catch kit
Send-out to reference lab	Preserved transport >2 h	Boric acid transport tube
Automated UA line	Closed vacuum transfer	Vacuum UA transfer tube
Quantitative timed test	Preservative + refrigeration	3 L 24-hour container
Infant / pediatric	Non-invasive adhesive collection	Pediatric urine bag
Drug screen	Tamper-evident, temp verification	Drug-test cup with temp strip

Browse our full urine collection collection at LabSupplies.com — specimen cups, transport tubes, drug-test cups, and urinalysis reagent strips, stocked in the USA, ships fast.

See the clinical lab supplies checklist for the full clinical consumable list, the specimen collection and transport guide for cold-chain compliance, the specimen containers guide for cups and jars beyond urine, and the sample cups and cuvettes guide for analyzer-specific vessels.

Frequently Asked Questions

How long is a urine specimen stable before testing?

Per CLSI GP16, an unpreserved urine specimen should be refrigerated or analyzed within 2 hours of collection to prevent bacterial overgrowth and chemical change. If that is not possible, use a chemical preservative such as a boric acid transport tube, which holds the specimen culture-viable for roughly 48–72 hours at room temperature.

When do you need a sterile urine container?

Use a sterile container whenever the specimen may be cultured — urine culture and sensitivity, suspected UTI, and most reference-lab microbiology. Routine dipstick and microscopic urinalysis can use a clean non-sterile container, but many labs standardize on sterile cups to keep any specimen culture-ready.

What is a boric acid urine transport tube used for?

A boric acid transport tube preserves urine for bacterial culture when the specimen cannot be refrigerated or processed within 2 hours. Boric acid inhibits bacterial overgrowth so colony counts stay accurate, reducing false-positive cultures. Fill the tube to the indicated line — an incorrect ratio can inhibit or under-preserve the sample.

How is a 24-hour urine specimen collected?

A 24-hour collection uses a large (typically 3 L) container. The patient discards the first morning void, then collects every void for the next 24 hours including the following morning's first void. Many analytes require a preservative added in advance and refrigeration during collection — confirm handling for each ordered test.

What container is used for a urine drug test?

Urine drug testing uses a tamper-evident cup with an integrated temperature strip to verify the specimen reads within the expected 32–38°C range immediately after collection. Regulated federal testing follows chain-of-custody procedures under SAMHSA and DOT (49 CFR Part 40); workplace and clinical programs use the same cup design with documented custody controls.

---

New lab? Get 15% off everything for 12 months with our LaunchLab program → labsupplies.com/pages/launchlab

Shop Urine Collection Systems at LabSupplies.com — specimen cups, transport tubes, drug-test cups, and urinalysis reagent strips, ships from the USA.
→ labsupplies.com/collections/urine-collection

---

Edited by Ray Dillman-Neu, Co-Founder, LabSupplies.com
Ray works with laboratory manufacturers, suppliers, and institutional buyers to research product specifications, purchasing requirements, and laboratory equipment selection.

Collection, preservation, and transport requirements verified against CLSI GP16 (Urinalysis). Drug-testing custody statements checked against SAMHSA guidelines and DOT 49 CFR Part 40. Last reviewed: July 10, 2026.

Sources and Technical References

• CLSI GP16 — Urinalysis; Approved Guideline — clsi.org
• SAMHSA — Federal Workplace Drug Testing Programs — samhsa.gov
• DOT 49 CFR Part 40 — Procedures for Transportation Workplace Drug and Alcohol Testing — ecfr.gov
• CDC — Urinary Tract Infection (Catheter-Associated) guidance — cdc.gov
