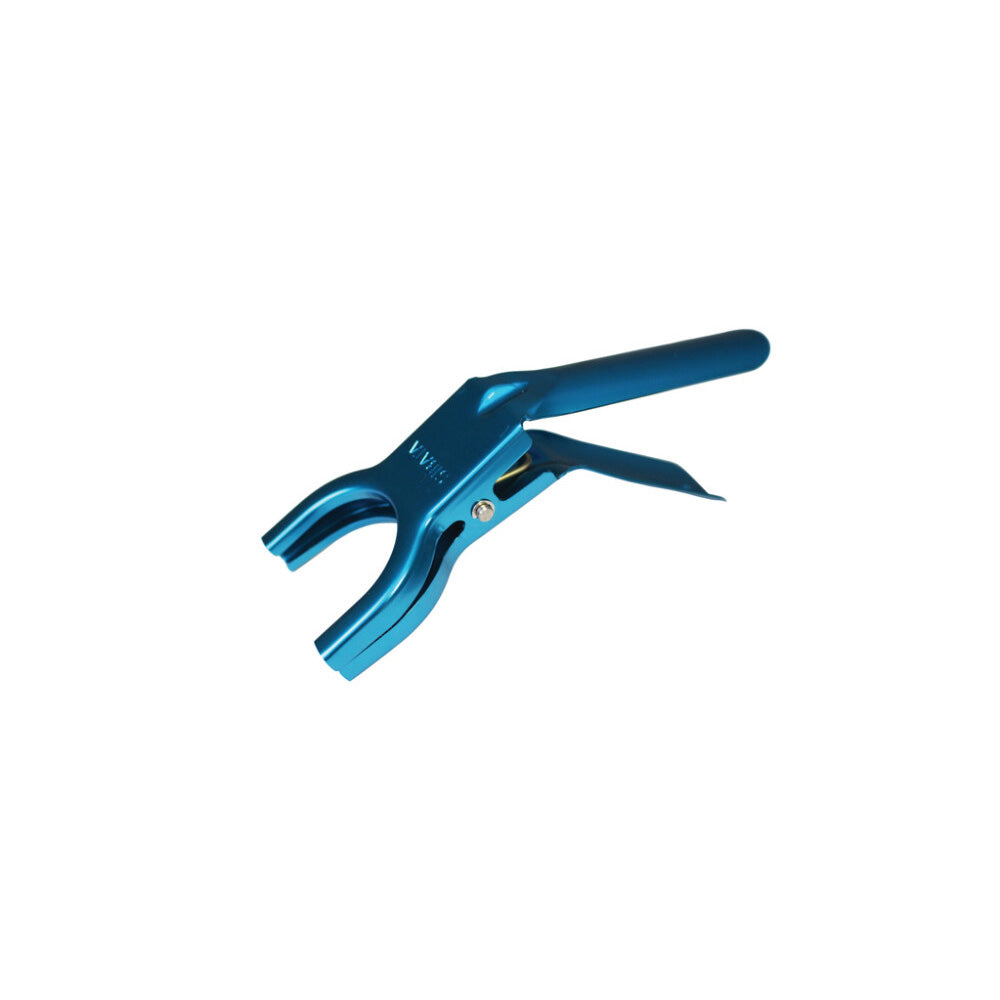

VEE GEE 6168-4762 is the replacement anodized aluminum tension clamp for SIBATA 6168 series filter systems, 47 mm I.D., sold individually. The spring-loaded aluminum clamp with tension screw locks the borosilicate glass funnel (100 mL or 300 mL) to the support base during vacuum filtration, maintaining a secure, leak-free seal under vacuum. The same clamp is used in all four complete 6168 kit configurations — 6168-0001, 6168-0002, 6168-0003, and 6168-0004. Autoclavable. Clamp only — funnel, base, stopper, and filter components sold separately.
Features & Benefits
- Spring-Loaded with Tension Screw — Secure Vacuum Seal: The clamp's spring mechanism provides consistent clamping force around the funnel-to-base junction, while the tension screw allows precise adjustment to achieve and maintain a vacuum-tight seal. This mechanism is critical for preventing air leaks that would reduce vacuum pressure and slow or stop filtration.
- 47 mm I.D. — Designed for the 6168 Series: The 47 mm inner diameter matches the outer diameter of the 6168 series funnel-to-base junction, providing a precise fit for both the 100 mL funnel (6168-47100) and the 300 mL funnel (6168-4711) on either base type.
- Anodized Aluminum — Lightweight, Corrosion-Resistant: Anodized aluminum provides excellent corrosion resistance in wet lab environments while keeping the clamp lightweight. Anodizing creates a hard oxide surface that is chemically resistant to most lab reagents and is compatible with autoclave sterilization.
- Autoclavable at 121°C: The anodized aluminum clamp withstands autoclave sterilization at 121°C (250°F) — sterilize with the rest of the filter assembly between biological samples.
- Universal Across All 6168 Kit Configurations: One clamp SKU covers the entire 6168 series — fits both 100 mL and 300 mL funnels and both fritted glass and SS screen base types.
- SIBATA Precision Manufacturing — Taiwan: Manufactured to SIBATA's precision standards for the 6168 series.
- 1-Year Warranty: Backed by VEE GEE Scientific's standard accessory warranty.
Specifications
| Property | Value |
|---|---|
| SKU | 6168-4762 |
| Description | Aluminum Clamp, Anodized, 47 mm I.D. |
| Material | Anodized Aluminum |
| Inner Diameter | 47 mm |
| Mechanism | Spring-loaded with tension screw |
| Autoclavable | Yes — 121°C (250°F) |
| Used In All Kits | 6168-0001, 6168-0002, 6168-0003, 6168-0004 |
| Compatible Funnels | 6168-47100 (100 mL), 6168-4711 (300 mL) |
| Compatible Bases | 6168-4721 (SS screen), 6168-4722 (fritted glass) |
| Dimensions (L × W × H) | 7.5" × 2.75" × 3.5" (19.1 × 7.0 × 8.9 cm) |
| Quantity | 1 Each |
| Country of Origin | Taiwan |
| Manufacturer | SIBATA Scientific Technology Ltd. |
| Brand | VEE GEE Scientific |
| Warranty | 1 Year |
6168 Series Complete Component Reference
| SKU | Description | Type |
|---|---|---|
| 6168-0001 | Fritted Glass Filter System, 300 mL — Complete Kit | Complete kit |
| 6168-0002 | SS Screen Filter System, 300 mL — Complete Kit | Complete kit |
| 6168-0003 | Fritted Glass Filter System, 100 mL — Complete Kit | Complete kit |
| 6168-0004 | SS Screen Filter System, 100 mL — Complete Kit | Complete kit |
| 6168-47100 | Replacement 100 mL Funnel | Replacement part |
| 6168-4711 | Replacement 300 mL Funnel | Replacement part |
| 6168-4721 | Glass Support Base, for SS Screen | Replacement part |
| 6168-4722 | Fritted Glass Support Base | Replacement part |
| 6168-4731 | Stainless Steel Screen | Replacement part |
| 6168-4741 | PTFE Gasket — Pack of 10 | Replacement part |
| 6168-4751 | No. 8 Silicone Stopper | Replacement part |
| 6168-4762 (this item) | Anodized Aluminum Clamp, 47 mm I.D. | Replacement part |
Frequently Asked Questions
Will this clamp fit both the 100 mL and 300 mL funnels?
Yes. The 6168-4762 clamp fits both the 100 mL funnel (6168-47100) and the 300 mL funnel (6168-4711). The 47 mm I.D. matches the funnel-to-base junction diameter in all 6168 series configurations — the funnel volume does not affect the clamp fitting.
My filtration system is losing vacuum even with the clamp in place — is it a clamp problem?
Vacuum loss at the funnel-to-base junction typically points to one of three causes: (1) a damaged or worn clamp that no longer applies consistent clamping force — if the spring tension has weakened or the tension screw is stripped, replace the clamp; (2) a damaged funnel or base rim where the ground-glass mating surfaces are chipped, which prevents a proper seal regardless of clamping force; or (3) a missing or degraded PTFE gasket in SS screen configurations (6168-4741). If the clamp appears physically intact and applies firm, even pressure, inspect the glass surfaces and gasket first before replacing the clamp.
